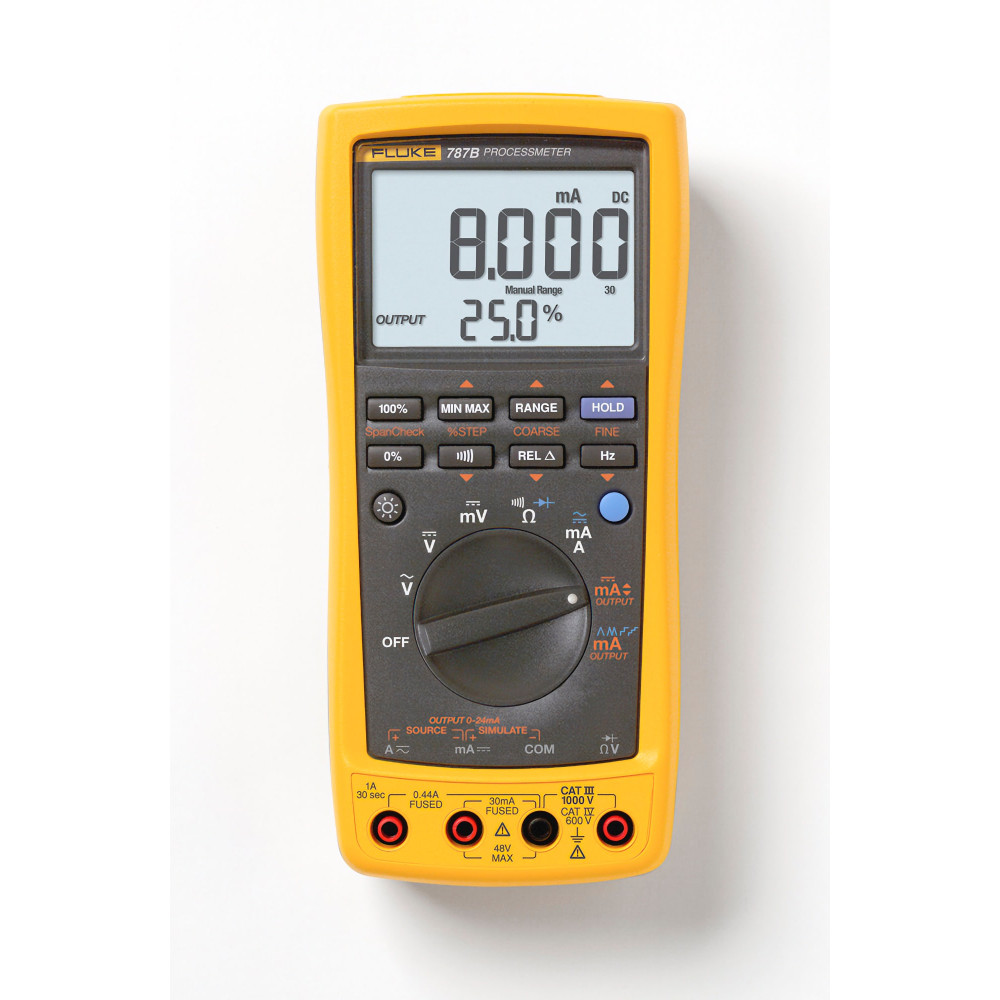

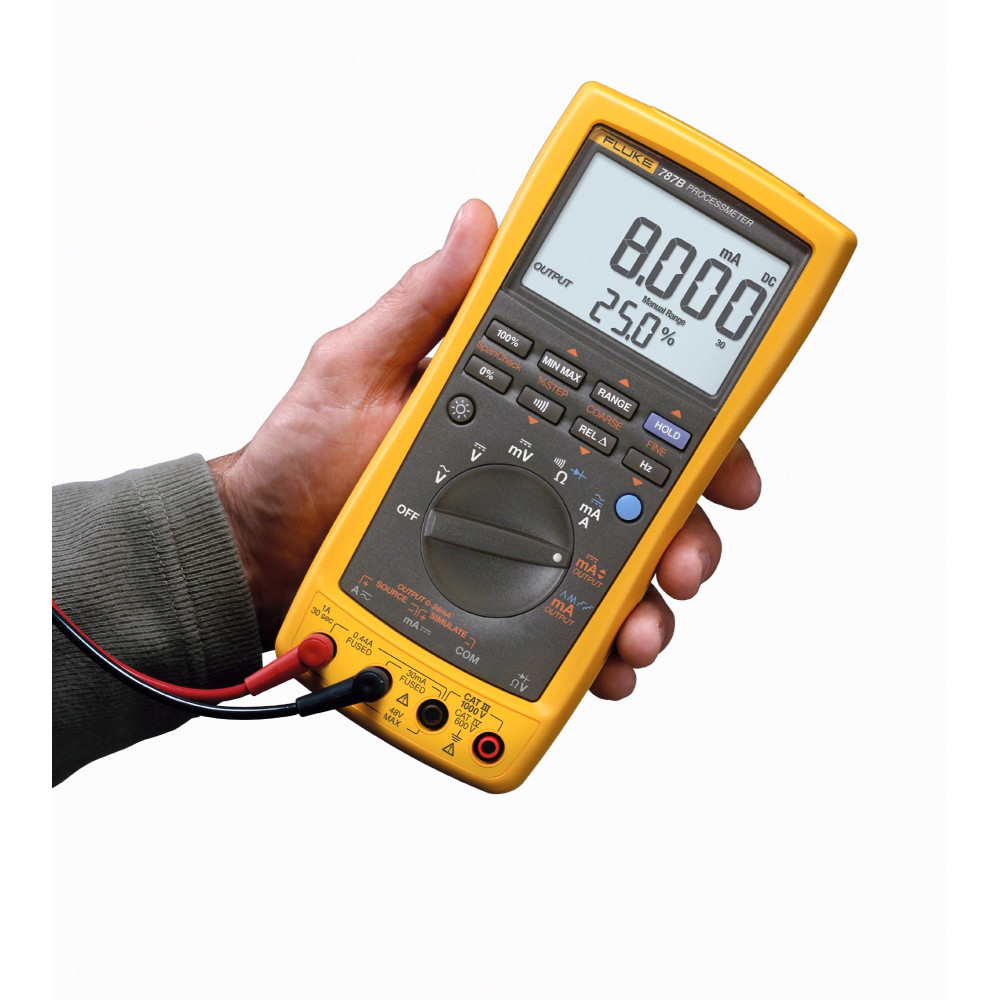

Fluke 787B Multimeter 1000V AC/DC, 440mA, with 0..20mA Process Calibrator
Fluke 787B is a ProcessMeter with a voltage range of 1000 V AC/DC, 440 mA and process calibrator from 0 to 20 mA.
Key features:
- Compact digital multimeter and mA loop calibrator solution
- Measure/Source/Simulate loop currents while powering the loop
- Manual and automatic ramp up - ramp down functions
- Easy-to-read backlit display

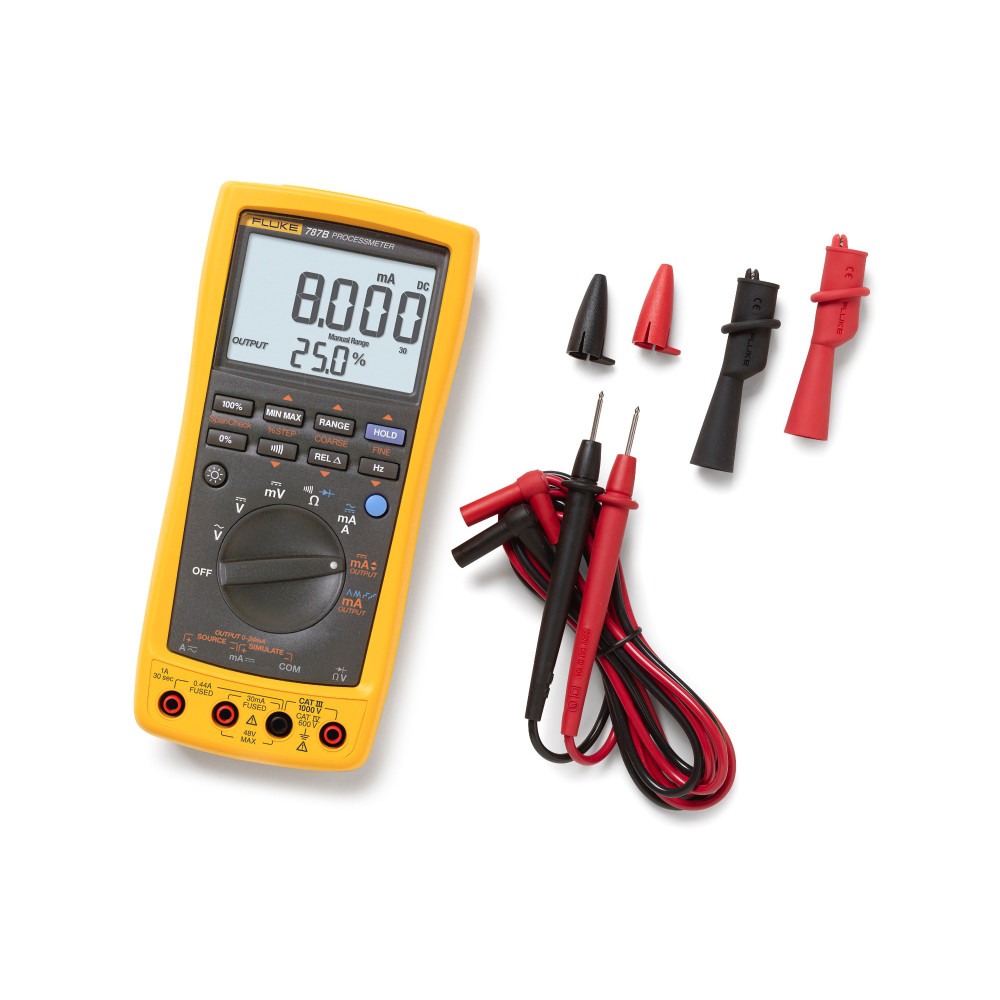

What's in the box:
(1 pair) TL71 Premium test leads
(1 set) AC72 Alligator clips
4 x AA alkaline batteries (installed)
1 x Quick reference guide
The Fluke 787B ProcessMeter doubles your troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87V meter, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.
With Fluke Connect mobile app and desktop software compatibility, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.* If you’re looking for even more troubleshooting power, the Fluke 789 ProcessMeter offers technicians even more flexibility, and even includes a built-in 24 V loop power supply.
* Requires Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.
| Model | 787B | 789 |
| DMM and Loop Calibrator in one tool | ✔ | ✔ |
| Precision 1000 V, True RMS Digital Multimeter | ✔ | ✔ |
| DC current source and Loop Calibrator | ✔ | ✔ |
| 24 V Loop power supply | - | ✔ |
| Min/Max / Average / Hold / Relative Modes | ✔ | ✔ |
| Diode Test and Continuity Beeper | ✔ | ✔ |
| Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp | ✔ | ✔ |
| Simultaneous mA and % of scale read-out | ✔ | ✔ |
| Externally accessible battery | ✔ | ✔ |
| Externally accessible fuses | - | ✔ |
| HART mode setting with loop power and a built-in 250 Ω resistor | - | ✔ |
| 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check | - | ✔ |
| Infrared I/O serial port | - | ✔ |
| Fluke Connect enabled | ✔ | ✔ |
Expand your troubleshooting capabilities
The Fluke 787B not only allows you to source, measure and simulate 20 mA DC current but also allows you simultaneously look at mA and percent of scale readouts so you can easily compare readings to what you see on your controller. Manually step mA signals (100%, 25%, Coarse adjustment, Fine adjustment) or use the Auto step and Auto ramp feature to work even more efficiently.
Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV standards, the Fluke 787B is also a full-featured, precision, true-rms digital multimeter with standard features for diode testing and a continuity beeper. Troubleshoot more, while carrying less. The 787B also allows you to make frequency measurements to 20 kHz and includes Min/Max/Average/Hold/Relative modes for easy operation. Even the batteries and fuses are easily accessible allowing you to make fast, easy changes.
