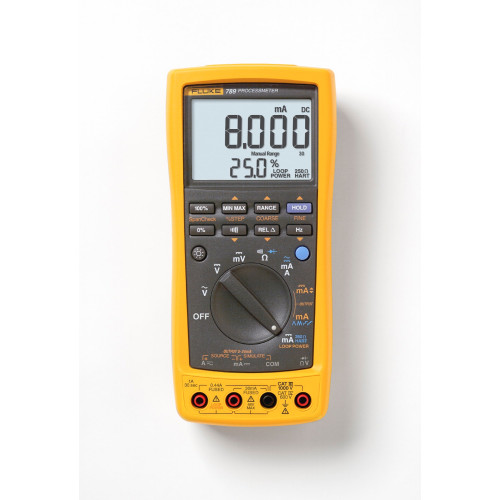

Fluke 789/E Multimeter 1000V AC/DC, 440mA, with Process Calibrator 0..20mA, 24V, HART
Fluke 789/E is a ProcessMeter with a voltage range of 1000 V AC/DC, 440 mA, process calibrator from 0 to 20 mA, 24V and HART.
Key features:
- Compact digital multimeter and mA loop calibrator solution
- Full-featured mA loop calibrator with built-in 24v Loop Power
- Quickly and easily troubleshoot every part of a control loop
- Large, bright dual-measurement display
What's in the box:
(1 set) AC175 Alligator clips
(1 set) TL71 Test lead set
4 x AA 1.5V Alkaline batteries (installed)
1 x Quick reference guide
1 x Safety information card
The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART resistor eliminates the need to carry a separate resistor.
The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect mobile app to log data wirelessly to your smart phone and review it from a remote location.
* Requires Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.
| Model | 787B | 789 |
| DMM and Loop Calibrator in one tool | ✔ | ✔ |
| Precision 1000 V, True RMS Digital Multimeter | ✔ | ✔ |
| DC current source and Loop Calibrator | ✔ | ✔ |
| 24 V Loop power supply | - | ✔ |
| Min/Max / Average / Hold / Relative Modes | ✔ | ✔ |
| Diode Test and Continuity Beeper | ✔ | ✔ |
| Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp | ✔ | ✔ |
| Simultaneous mA and % of scale read-out | ✔ | ✔ |
| Externally accessible battery | ✔ | ✔ |
| Externally accessible fuses | - | ✔ |
| HART mode setting with loop power and a built-in 250 Ω resistor | - | ✔ |
| 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check | - | ✔ |
| Infrared I/O serial port | - | ✔ |
| Fluke Connect enabled | ✔ | ✔ |
Do a lot more while carrying a lot less
The 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper. Combine that with the ability to troubleshoot every part of the loop.
Measure, source, simulate 4-20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop. The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and % of scale readings for faster troubleshooting. It also delivers 1200-ohm drive capability on mA source.
Accuracy
This ProcessMeter offers manual step, 100%, 25%, Coarse, Fine, plus auto step and auto ramp. It also delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy.
