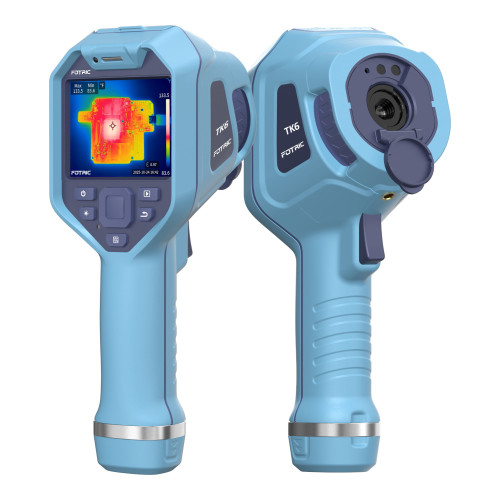

FOTRIC TK6 Kit, Handheld Thermal Camera 384 x 288 with Manual Focus
FOTRIC TK6 Kit is a professional handheld thermal camera designed to deliver superior image clarity through its true manual focus system. Unlike fixed-focus models, the TK6 allows technicians to achieve precise focus and accurate temperature readings at any distance, making it ideal for everything from close-up PCB analysis (min. 0.15 m) to distant electrical and mechanical inspections.
Powered by a 384x288 pixel ceramic-packaged detector with a thermal sensitivity of <40mK, it captures exceptionally detailed thermal images using a focused 25°×19° field of view. The proprietary T-DEF® technology blends thermal and visible images (5 MP camera) for intuitive diagnostics. Built for rugged environments, it features an IP54 rating, 2-meter drop resistance, and a battery life exceeding 4 hours.
- IR Resolution: 384×288 px
- Thermal Sensitivity (NETD): <40mK @ 30°C
- Field of View (FOV): 25°×19°
- Focus: Manual (minimum distance 0.15 m)
- Digital Camera: 5 MP industrial grade
- 3.5" IPS Touch Display (640×480)
- Temperature Range: -20°C ~ 550°C
- Accuracy: ±2°C or ±2%
- Image Modes: Thermal, Visible, PiP, T-DEF® Blend
- IP54 protection, 2m drop resistance
- Li-ion Battery 3.6V 5000mAh, runtime >4h
Standard accessories:
- Main unit ×1
- Rechargeable Lithium Battery
- Charging Dock
- Power Adapter
- USB Type-C to USB cable ×1
- 32GB SD card
- Calibration certificate
- Quick start guide
- Packing list
