Rohde & Schwarz MXO5-K36 Frequency response analysis for R&S MXO 5
Rohde & Schwarz MXO5-K36 is a frequency response analysis option for the Rohde & Schwarz MXO 5 series.
Low-frequency response analysis made easy
- Quickly perform low-frequency response analysis with the Rohde & Schwarz MXO5-K36 frequency response analysis (FRA) option
- Easily characterize the frequency response of various electronic devices, including passive filters and amplifier circuits
- Precisely measure the control loop response (CLR) and power supply rejection ratio (PSRR) in switch mode power supplies
The FRA option leverages the oscilloscope's built-in waveform generator to create stimulus signals from 10 mHz to 100 MHz. By measuring the stimulus signal to output signal ratio for the device under test at each test frequency, the oscilloscope accurately plots logarithmic gain and phase for valuable insights into your device's behavior.
Broad probe portfolio for accurate characterization
Choose the right probes for accurate CLR and PSRR characterization. The low-noise Rohde & Schwarz RT-ZP1X 38 MHz bandwidth 1:1 passive probe is recommended for the Rohde & Schwarz MXO 5 Series oscilloscope. The probe minimizes attenuation errors and delivers the best SNR, even at low peak-to-peak amplitudes of Vin and Vout.
| Frequency response analysis option specifications | |
| Note: MXO5-B6 is a prerequisite for FRA applications | |
| Frequency range | from 10 mHz to 100 MHz |
| Amplitude mode | fixed or amplitude profile |
| Amplitude level | from 10 mV to 10 V into high Z |
| from 5 mV to 5 V into 50 Ω | |
| Test points | from 10 points to 500 points per decade |
Enhanced features and functionality
- Amplitude profile for improved SNR

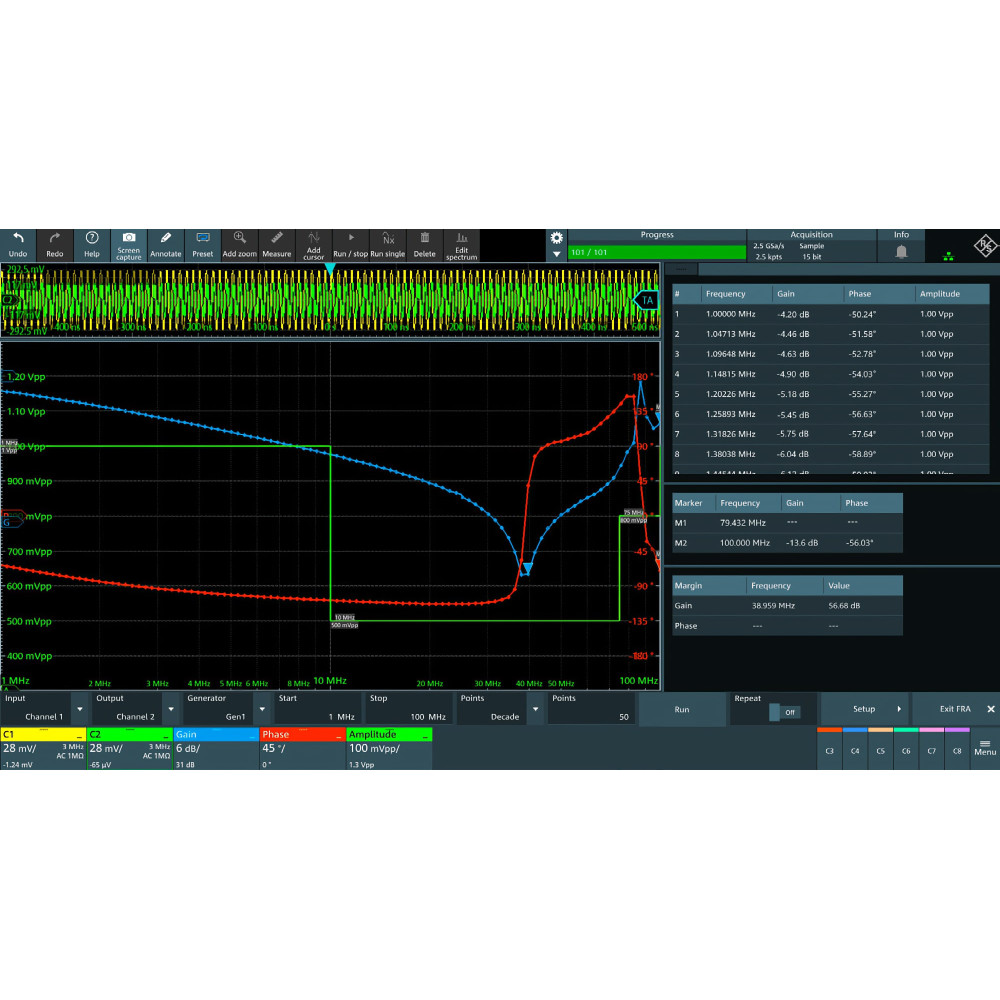

Rohde & Schwarz MXO5-K36 has user-configurable profiles of the amplitude output level from the generator. This feature optimizes the signal-to-noise ratio (SNR) at different frequency ranges, ensuring high-quality CLR and PSRR measurements. - Improved resolution and markers support
Adjust resolution and sweep time to your specific requirements with user-configurable points per decade. Markers on the traces conveniently correlate with table entries, making it easy to determine phase and gain margin with the auto placement function. - Parallel display of time domain
Gain deeper insights by monitoring the time domain alongside the frequency domain.
Identify distortion and errors in measurements caused by the injected signal, which may be difficult to detect with just the Bode plot. - Measurement result table
Quickly access comprehensive information about each measured point, including frequency, gain and phase shift with the measurement result table. Save screenshots, table results, or both to a USB device for reporting and efficient documentation. - Calibration and setup
FRA has a calibration capability to help optimize measurement setups for greater accuracy when passive probes are used. The calibration data can be saved for future setup for repetitive measurements.
