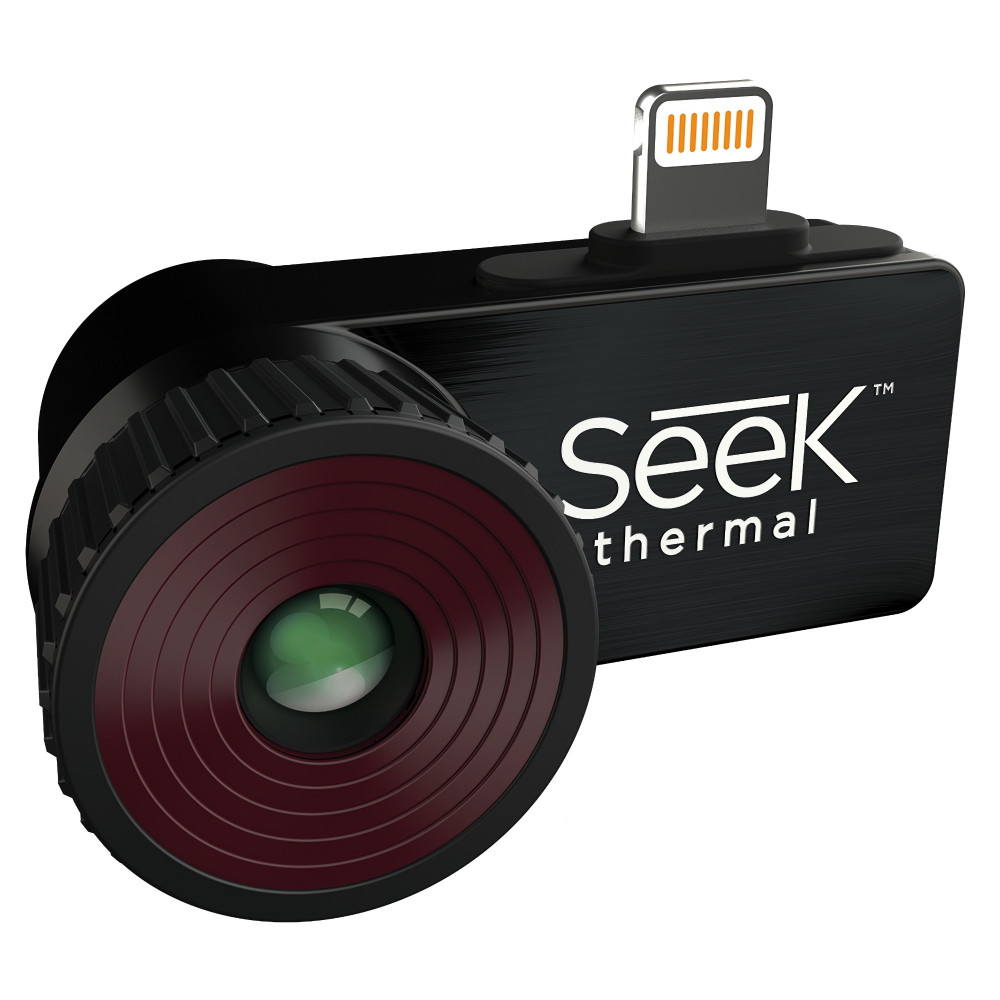

Seek Compact Pro Fast Frame for iOS, 320x240 pixels

Seek Compact Pro Fast Frame for iOS, 320x240 pixels

Seek Compact Pro FF for iOS

Affordable, High-Performance Thermal Imaging

CompactPRO is our most advanced thermal imaging camera designed for your smartphone. Made for iPhone® and Android™ top models, this highly-portable thermal imaging camera features a large, 320x240 thermal sensor with high sensitivity and a wide, 32-degree field of view. Offering adjustable thermal span, level, and emissivity settings, the CompactPRO delivers unprecedented high-resolution thermal imaging and software capabilities.

Newly Enhanced Mobile App and Software Features

Seek’s newly enhanced free mobile App software, available for download in all iTunes and Google Play stores, now features an entirely new human-centered user design that maximizes the power of the smartphone processor and adds feature-sets engineered for the needs of the commercial and industrial end user. Select new key software features include:

Thermal Level and Span - Easily set and lock a temperature range to display the maximum thermal information of any object or scene with a set point and range.

Emissivity Control - Calibrate for emissivity through easy, pre-defined settings. Compensate for various surface materials, ensuring accurate readings and reporting.

Radiometric File Format – Coming in early August, the ability to store 76,800 pixels of thermal measurements for post-analysis and documentation.

New Image Color Palettes – Enhanced palette options provide the visual capabilities necessary to help users easily examine and understand thermal imagery.

Full Frame Thermography – Choose from 4:3 or 16:9 formats displaying all temperature data for the maximum clarity and options responsive to your device format and size.

Complete with 7 User Modes including: Spot temperature, High / Low temperature, Level and Span, Above Threshold, Below Threshold, Equal Threshold, and Thermal+ Visible.

Specifications Description
Thermal Sensor 320 x 240 (76.800 pixels)
Detection Distance from 15cm to 550m
Field of View 32° FOV
Tempeature Range -40 + 330°C
Frame Rate > 15Hz fast Frame
Focus Adjustable Focus
Lens Material Chalcogenide
Microbolometer Vanadium Oxide
Therma Sensitivity < 70 mK
Spectral Range 7,5 - 14 Microns
User Interface Free Seek Thermal Mobile App
Temp. Display Scale Fahrenheit, Celsius or Kelvin
Color palettes 9 Options
Store Media Store Directly to Smartphone
Battery Low power provided by Smartphone (280mW)
Phone Compatibility Top iPhone and Android Models
