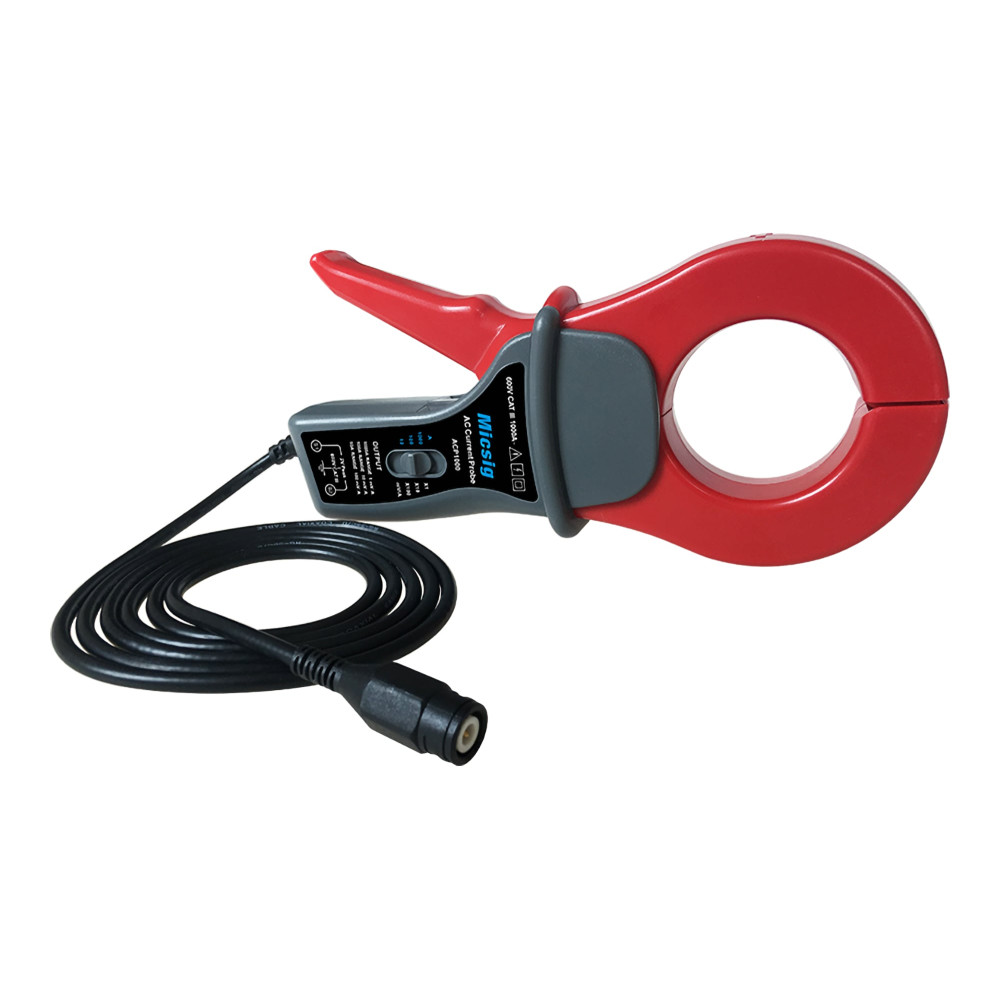

Micsig ACP1000 AC Current Probe for Oscilloscope
Micsig ACP1000 AC current probe is clamp-on core design, it tests the circuit current safely and directly without disconnecting the circuit. This method permits a safe,easy and portable current measurement.
Features:
- Clamp-on core design safer, easier installation without disconnecting the circuit to test
- Current or three specs voltage outputignal
Applications:
- Current, ower energypower factor correction device
- Industrial control device
- Oscilloscope andharmonic wavesnalyzer
Specifications:
- Current range: 0.1A - 1000A
- Maximum working current: 2000A
- Output signal: mV/A
- Operating frequency: 10Hz - 100kHz
- Maximum accuracy: 1%
- Operating Temperature: -15°C to 60°C
- Safety class: CAT III 600V
- Maximum conductor diameter: 2.05 inches (52mm)
- Dimensions: 4.37 x 8.50 x 1.77 inches (111x216x45mm)
- Output cable: 1.5m BNC insulated coaxial output cable can connect directly to an oscilloscope, and can be used with Multimeters with optional BNC/Banana adapter
- Environmentl compliance: RoHS compliane
| Model | Input | Rated Output | Frequency | Rated Burden | Accuracy Grade |
| ACP1000 | 0.1 - 10A | 100 mV/A | 10 - 100k Hz | ≥100K Ohms | 3% ± 10mV |
| 0.1 - 100A | 10 mV/A | 2% ± 5mV | |||
| 1 - 1000A | 1 mV/A | 1% ± 1mV |
