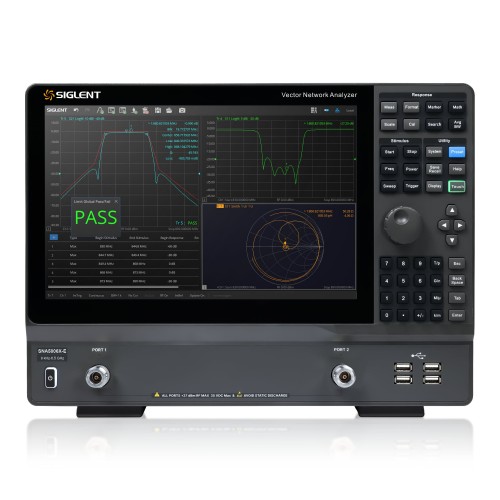

SIGLENT SNA5006X-E, 2-Port Vector Network Analyzer (9 kHz - 6.5 GHz)
The SIGLENT SNA5006X-E is a cost-effective and compact 2-port vector network analyzer tailored to meet core RF testing requirements while delivering an outstanding cost-to-performance ratio. Covering a broad frequency range from 9 kHz to 6.5 GHz, this lightweight instrument (approx. 5.4 kg) features a space-saving design (only 12.6 cm deep) that optimizes bench space without sacrificing measurement reliability or precision.
Equipped with a large, responsive 12.1-inch high-resolution touch screen, the SNA5006X-E allows users to view complex setups in multi-window layouts, managing up to 256 channels simultaneously. It boasts top-tier performance, including a typical dynamic range of 125 dB, ultra-low trace and receiver noise, and the ability to perform segmented sweeps, impedance conversions, and fixture simulations. The analyzer is also highly expandable via software licenses to include time-domain analysis (TDA and TDR for TDR/TDT and eye diagrams), spectrum analysis (SA), and automatic fixture removal (AFR).
Key Features:
- Frequency Range: 9 kHz to 6.5 GHz.
- Configuration: 2 Ports with standard internal Bias-Tees.
- Outstanding Performance: 125 dB typical dynamic range, low trace noise (0.002 dB rms at 1 kHz), and 1 Hz frequency resolution.
- Intuitive Interface: 12.1" capacitive touch screen display (1280x800) with multi-window and multi-trace support.
- Expandable Capabilities: Time-Domain Analysis (TDA/TDR), Spectrum Analysis (SA), and Automatic Fixture Removal (AFR) available as options.
- Compact Design: Lightweight, space-saving format ideal for R&D benches and production lines.
Package contents:
- SNA5006X-E Analyzer
- Quick Start Guide
- USB Cable
- Power Cable
- Calibration Certificate
- Wireless Mouse
- Protective Cover
