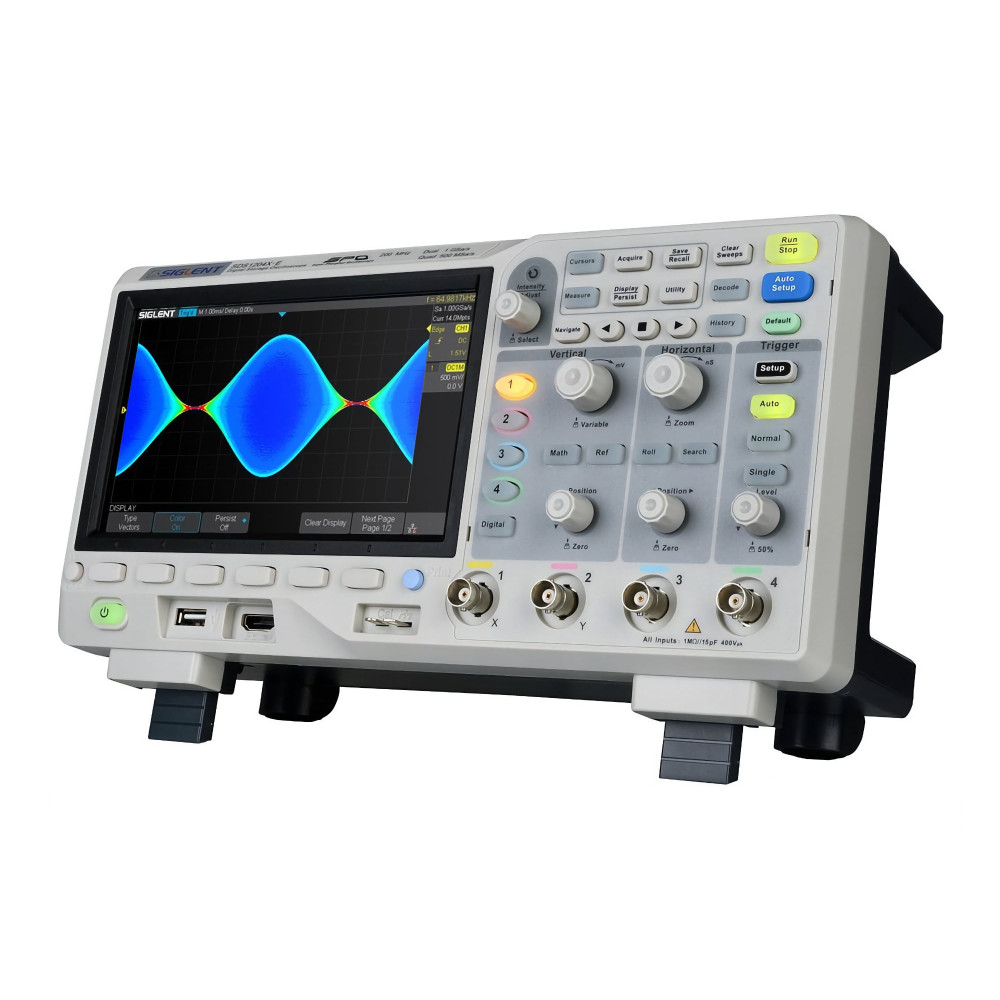

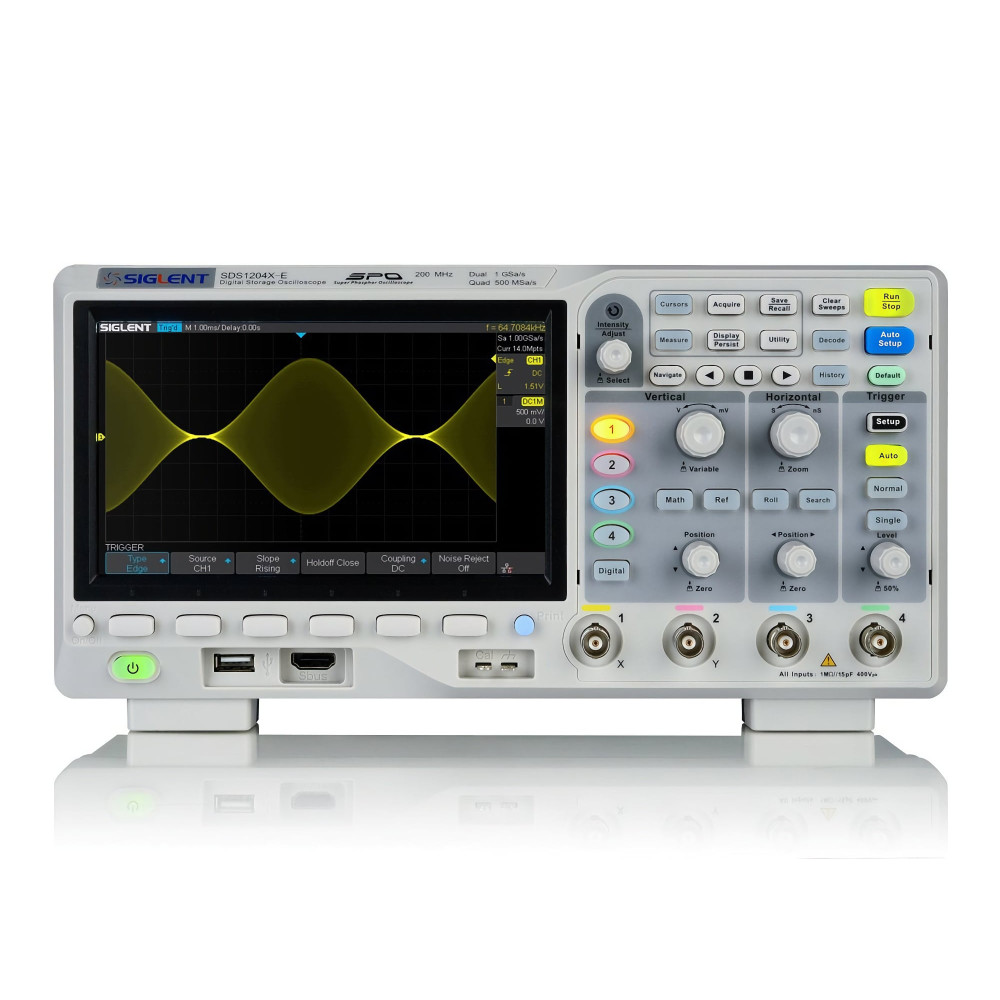

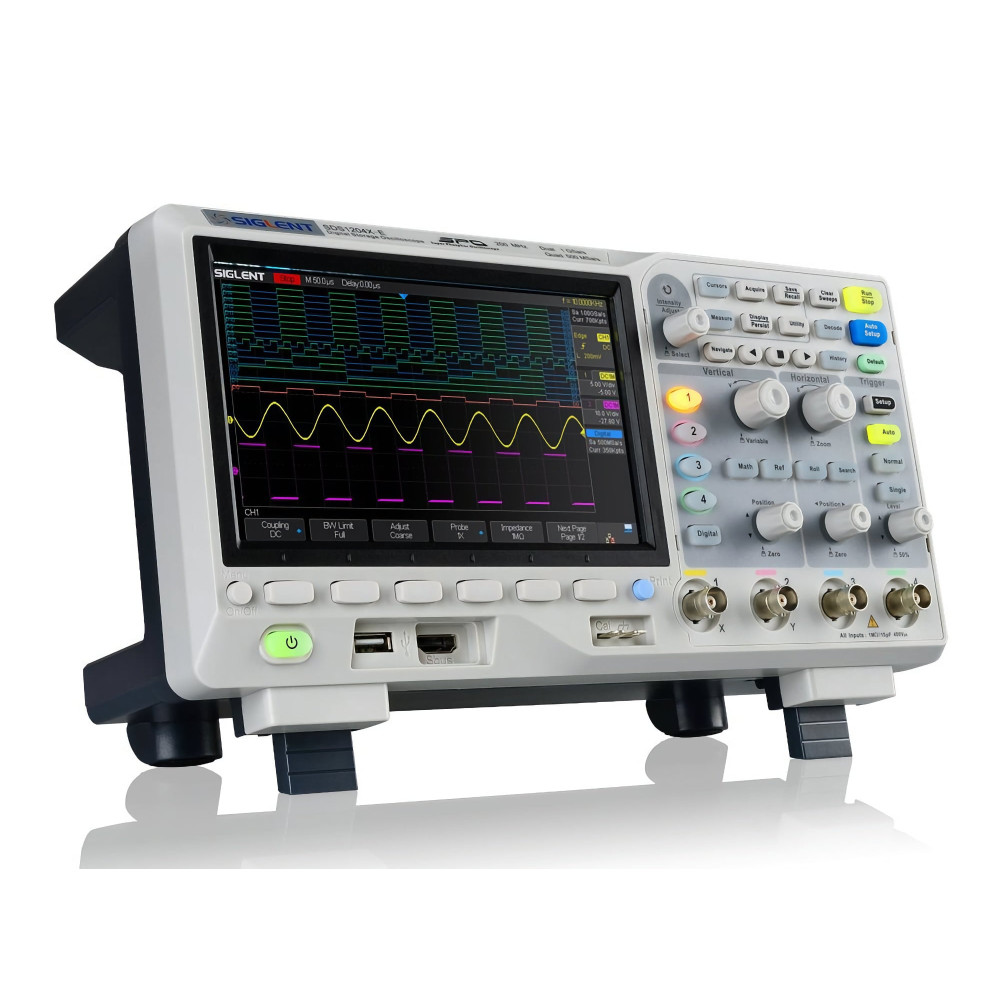

SIGLENT SDS1104X-E 100MHz, 4 Channels Oscilloscope
SIGLENT SDS1104X-E is a Super Phosphor Oscilloscope with a bandwidth of 100MHz, 4 channels, sample rate of 1GSa/s and 14Mpts of buffer memory. I2C, SPI, UART/RS232, CAN and LIN trigger and decoding are standard.
Key Features:
- 100 MHz Bandwidth
- 1 GSa/s Real-Time Sampling Rate (Total of 2 A-D converters)
- 14 MPts Waveform Memory
- 500 uV/div Sensitivity
- Maximum waveoform capture rate: 100,000 frames / sec (Standard mode), 400,000 frames / sec (Sequence mode)
- Serial bus decode and trigger: standard
- Digital trigger provides low jitter
- Intensity-Graded display / Color-Temperature display mode
- Video triggering / HDTV
- Cursors Measurement functions

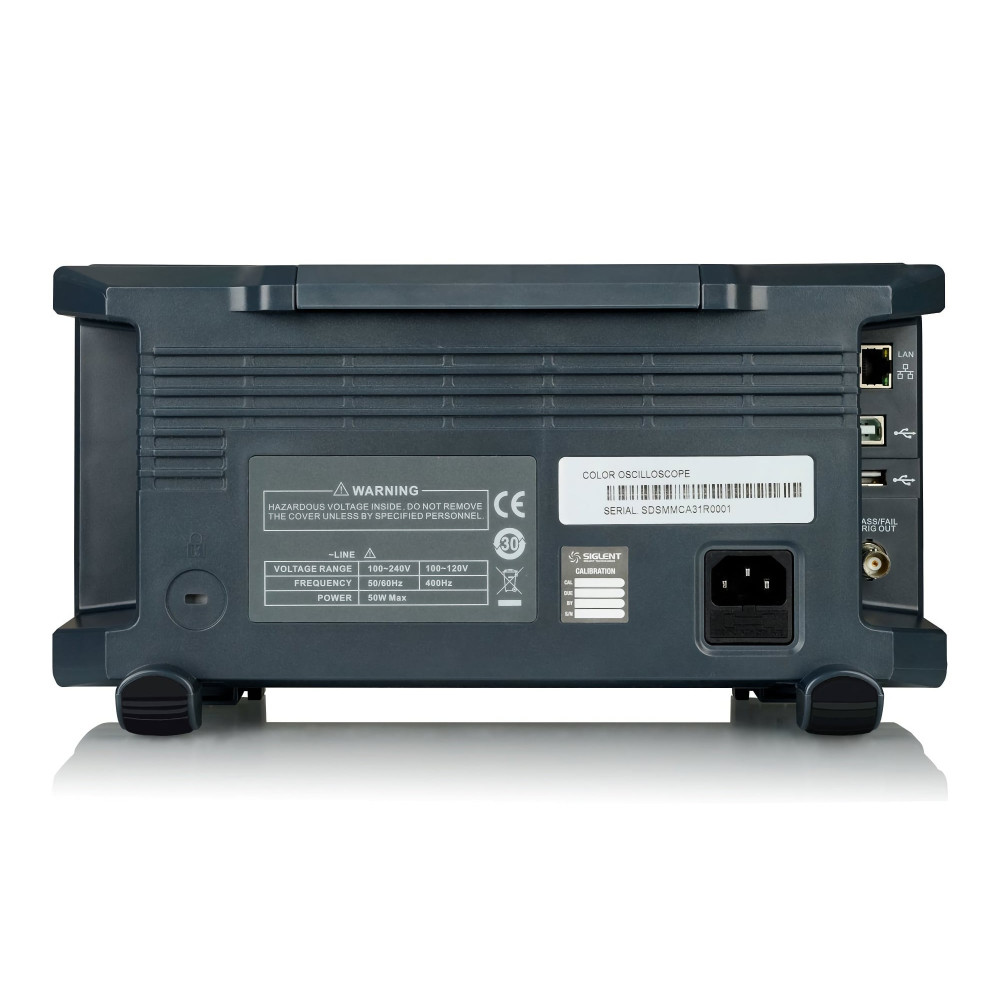

- USB and LAN interfaces
- 7″ (diagonal) display
- Sequence trigger mode
- History function
- Secure erase feature
- Optional MSO capability
- Bode Plot function (Requires SIGLENT SDG X or SAG1021 function generator)
- Optional Wi-Fi dongle
- Web-based browser remote control interface
- Search and Navigate keys
Standard accessories:
1 x USB Cable
1 x Quick Start Guide
4 x Passive Probes
1 x Certification
1 x Power Cord
| Model | SDS1202X-E | SDS1104X-E | SDS1204X-E |
| Bandwidth | 200 MHz | 100 MHz | 200 MHz |
| Sample Rate (max.) | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Waveform Capture Rate | 100000 wfms/s | 100000 wfms/s | 100000 wfms/s |
| Memory Depth | 14 Mpts | 14 Mpts | 14 Mpts |
| Display | 7" (800x480px) | 7" (800x480px) | 7" (800x480px) |
| Channels | 2 | 4 | 4 |
| FFT Data Points | 1 MPts | 1 MPts | 1 MPts |
| Waveform Generator | - | Option | Option |
| Logic Analyzer | - | Option | Option |
| Serial Decoder | ✔ | ✔ | ✔ |
