Optically Isolated Probing System For Oscilloscopes

The Next Ground Breaking Probe Solution

NEXT GENERATION GROUND BREAKING SOLUTION
With optical isolation

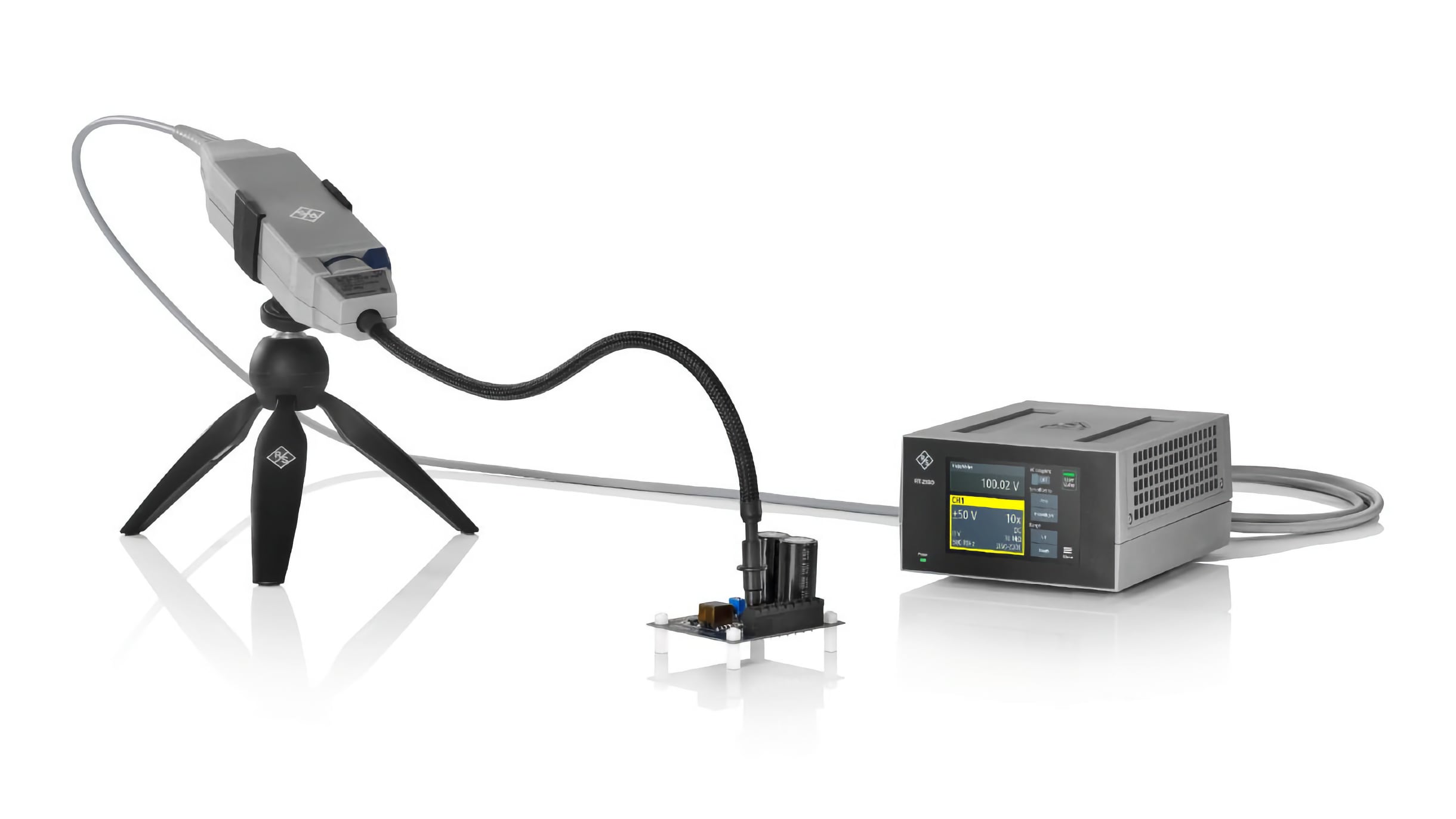

The R&S^®RT-ZISO isolated probing system can tackle the challenge of measuring in high voltage and fast switching environments. The power-over-fiber-optic architecture galvanically isolates the device under test (DUT) for the highest possible common mode rejection ratio (CMRR) at up to 1 GHz. The complete systems compensate thermal drifts and gain errors for the highest possible and uncompromising signal fidelity.

Key Facts

100, 200, 350, 500 MHz and 1 GHz bandwidth, upgradeable
> 90 dB CMRR at 1 GHz
± 3000 V differential input range and offset
± 60 kV common mode range
Dual connectivity with a Rohde & Schwarz probe interface and SMA connector

CONTACT ME FOR A DEMO

Features & Benefits

For Fast Common Mode Probing Challenges

RT-ZISO isolated probing system suppresses interference from fast common mode signals with optical isolation for a CMRR of > 90 dB at 1 GHz. This helps with high-side gate measurements on complementary switching circuits especially wide bandgap devices.

1 GHz > 90 dB
500 MHz > 100 dB
100 MHz > 115 dB
1 MHz > 145 dB

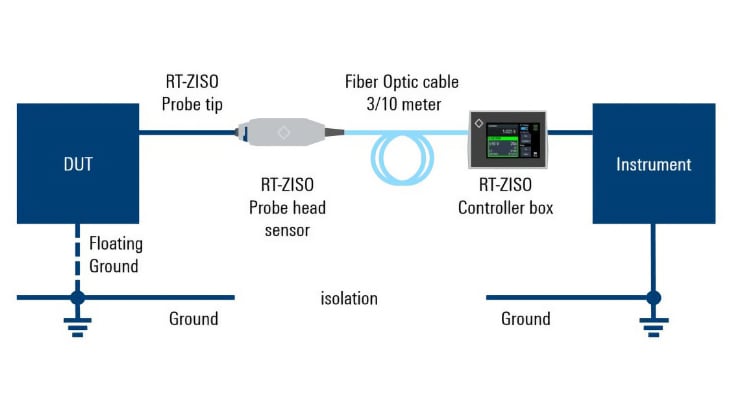

Isolation limits CM noise loop formation in the system.

Probe Tips Matter

RT-ZISO comes in a variety of probe tips and the MMCX probe tip is the most important one for CMRR performance. Different connector types such as square pins and wide square pins are also supported with different attenuation ratios. The probe tip cables are long and formable for easy access to probe points with minimal mechanical stress.

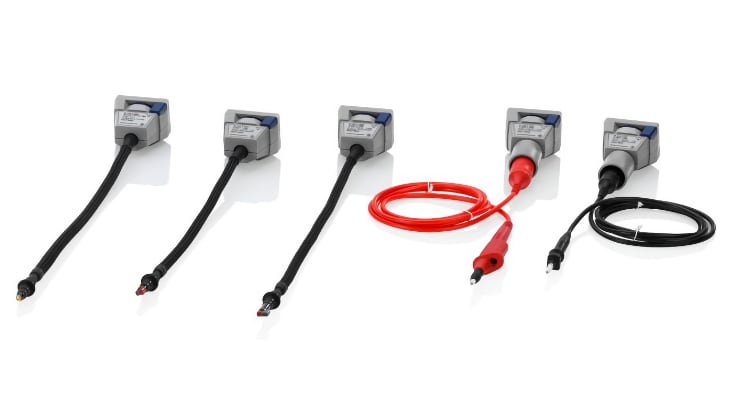

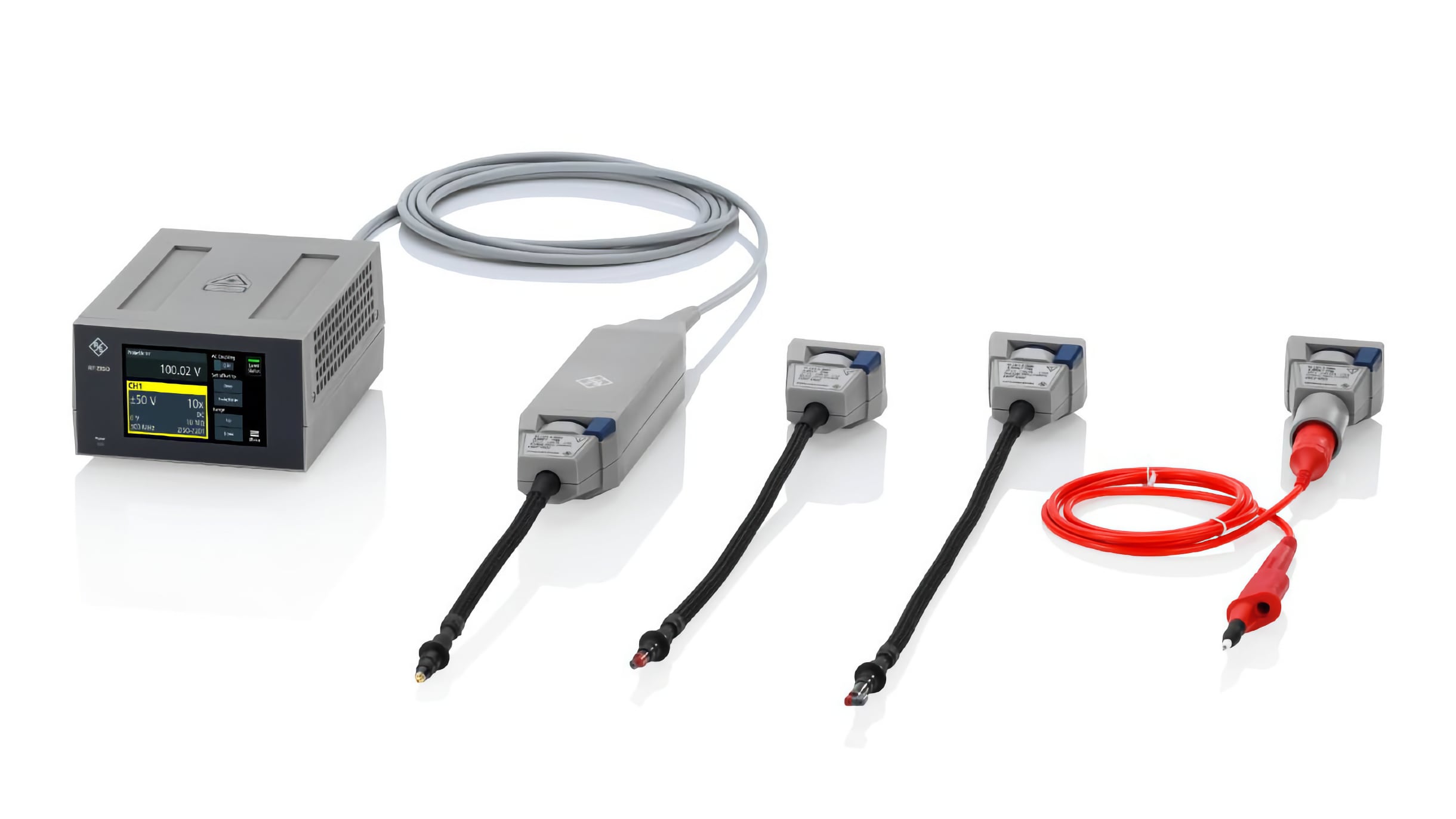

Formable probe tips with different connectors and browser probes.

Hassle-Free Setup with Rohde & Schwarz Oscilloscopes

Using the R&S^®RT-ZISO with the Rohde & Schwarz probe interface on our oscilloscopes creates a seamless experience. The instrument detects and sets up the probe tip information. Offset and range control can be easily configured on the instrument. Users can also easily use all Rohde & Schwarz oscilloscope functions and features such as fast acquisition and responsive FFT in their measurements.

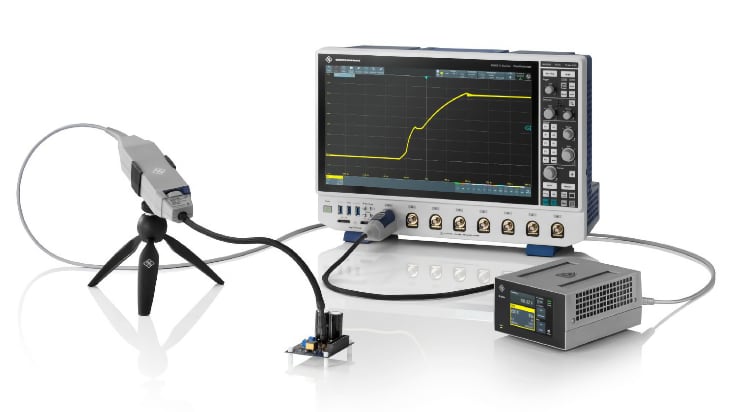

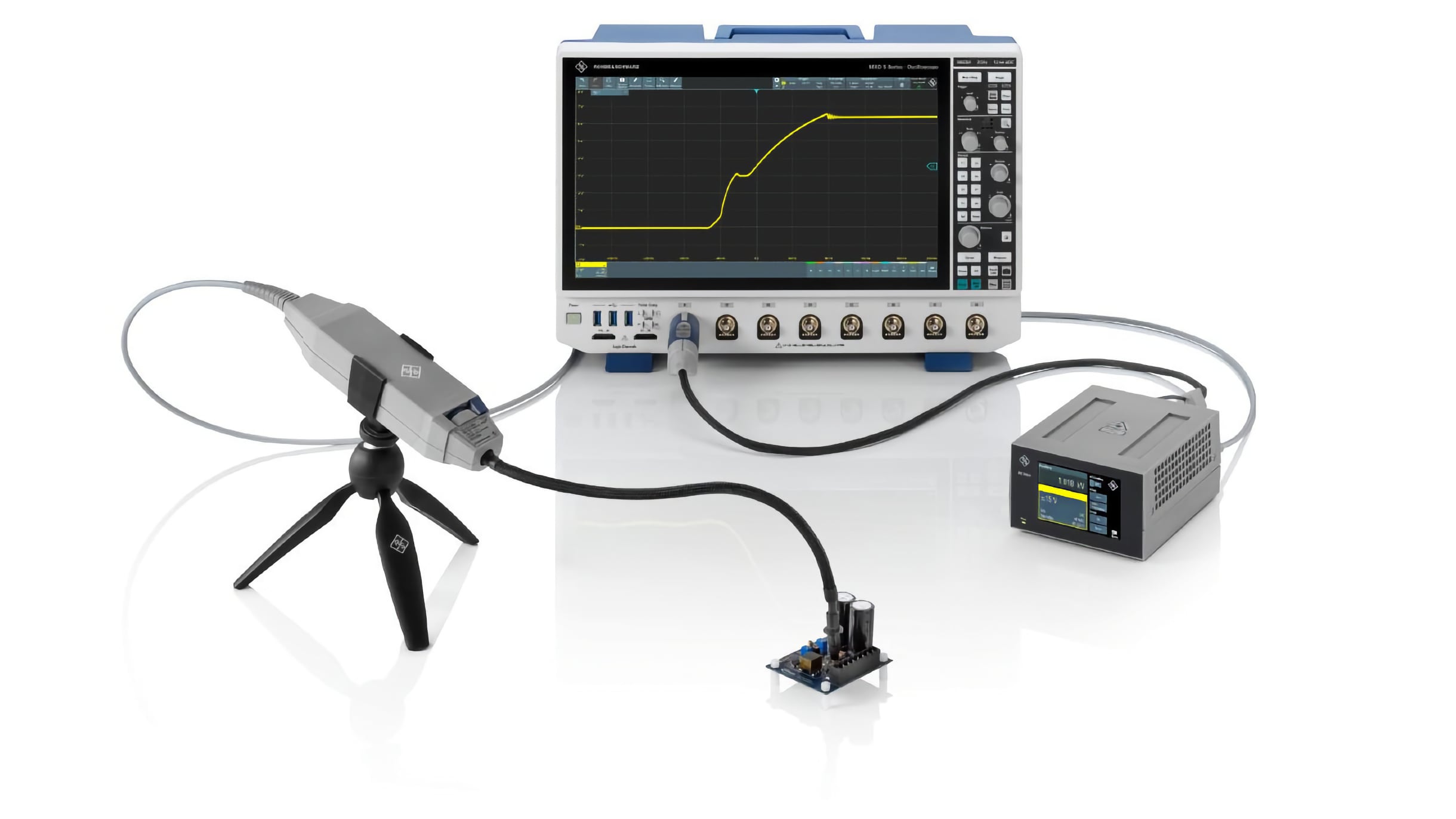

Seamless connection for control with a Rohde & Schwarz oscilloscope.

Investment Protection

R&S^®RT-ZISO isolated probe systems can connect to any oscilloscope with a BNC or SMA interface. Investment in instruments can be based on performance needs. The R&S^®RT-ZISO lets bandwidth be upgraded based on future needs.

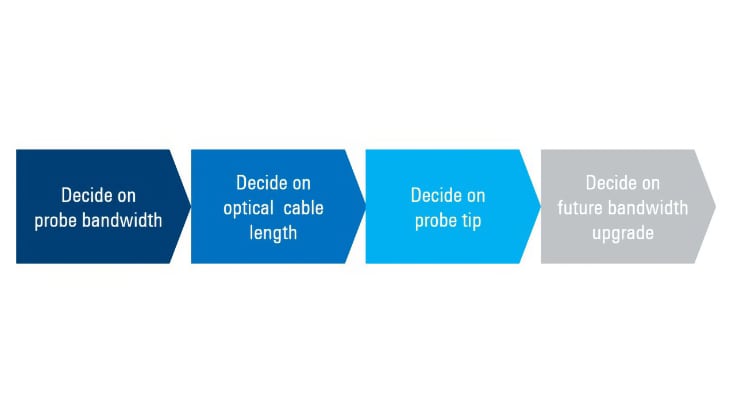

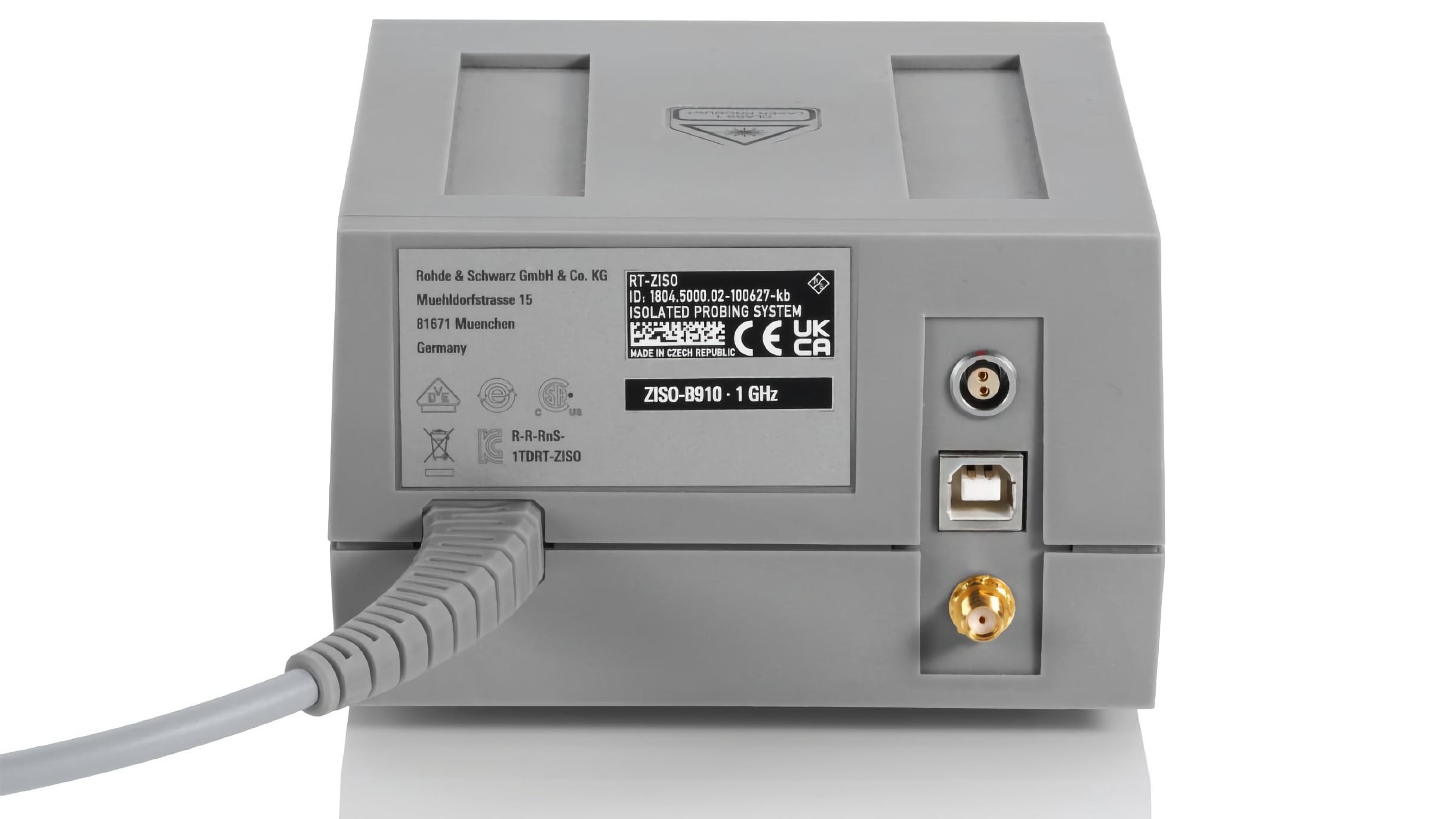

Future bandwidth upgrade possible with the R&S®RT-ZISO.

Safely Measure, Securely Operate

The R&S^®RT-ZISO complies with CAT III 1000V safety ratings. The material and mechanical structures comply with IEC/EN 61010-31 covering hand-held probe assemblies for electrical measurements.

CAT III 1000V safety rating
Safe attach on probe tips
Class 1 laser safety

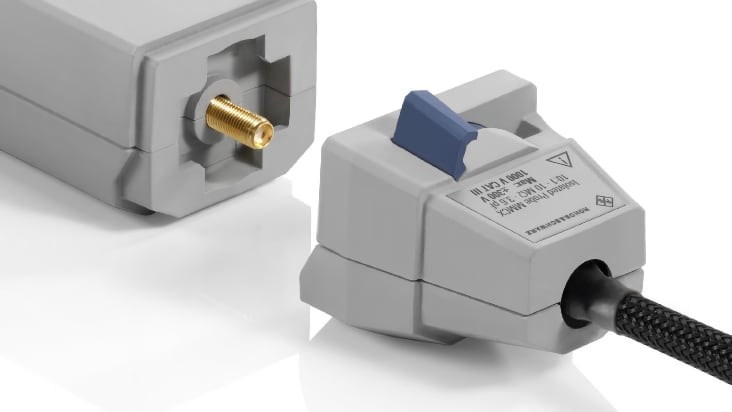

Safe attach lets you safely swap out probe tips.

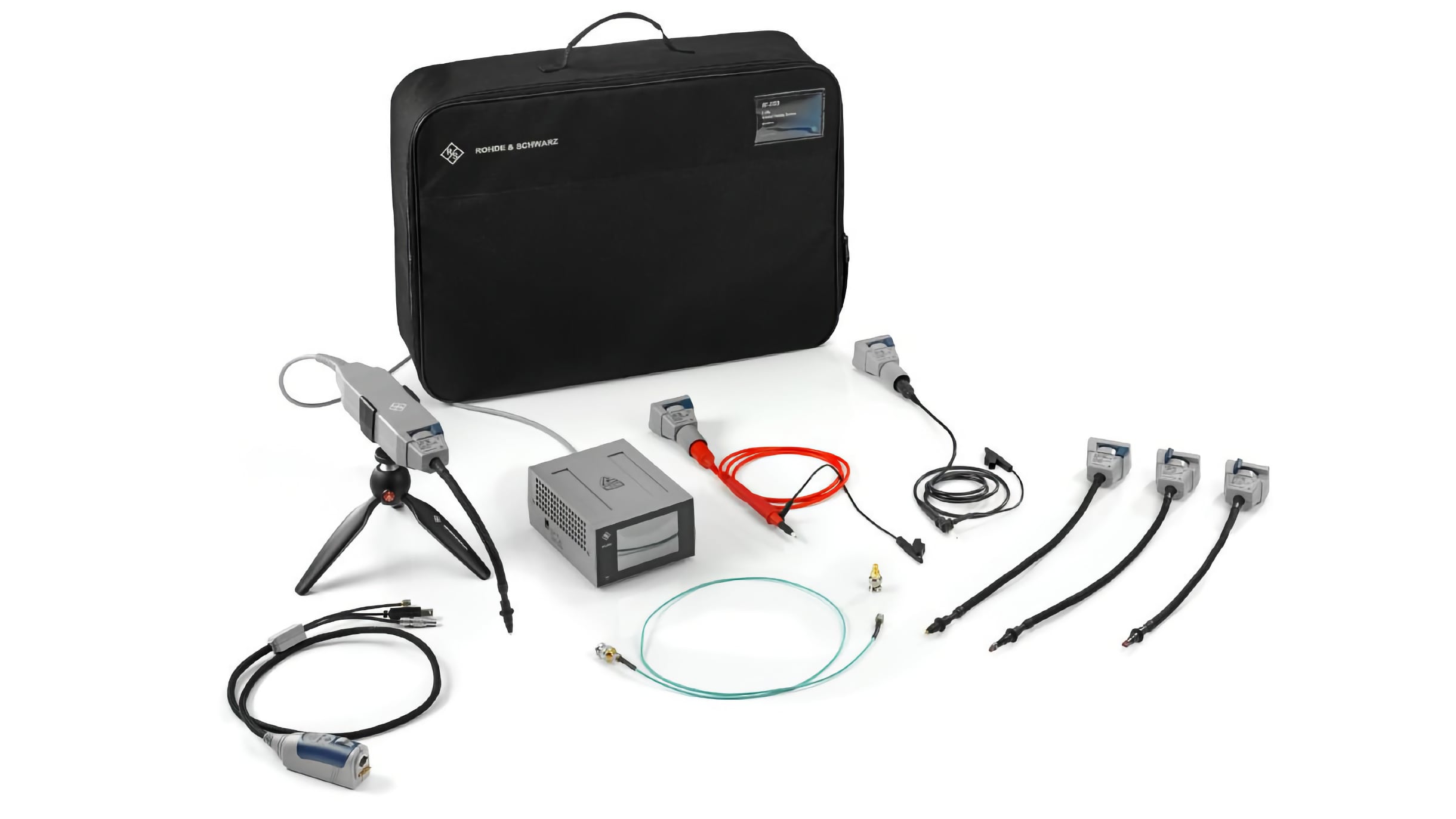

Models Overview

Models	MPN	Bandwidth	Rise time	Cable length
R&S^®RT-ZISO	1804.5000.02	100 ~ 1000 MHz	< 4 ~ 0.45 ns	3 or 10 meters
R&S^®RT-ZISO01	1804.5000P11	100 MHz	< 4 ns	3 meters
R&S^®RT-ZISO02	1804.5000P12	200 MHz	< 2 ns	3 meters
R&S^®RT-ZISO03	1804.5000P13	350 MHz	< 1.14 ns	3 meters
R&S^®RT-ZISO05	1804.5000P14	500 MHz	< 800 ps	3 meters
R&S^®RT-ZISO10	1804.5000P15	1 GHz	< 450 ps	3 meters
R&S®RT-ZISO01L	1804.5000P21	100 MHz	< 4 ns	10 meters
R&S®RT-ZISO02L	1804.5000P22	200 MHz	< 2 ns	10 meters
R&S®RT-ZISO03L	1804.5000P23	350 MHz	< 1.14 ns	10 meters
R&S®RT-ZISO05L	1804.5000P24	500 MHz	< 800 ps	10 meters
R&S®RT-ZISO10L	1804.5000P25	1 GHz ext.	< 450 ps	10 meters
