Fluke SMFT-1000/PRO Multifunktionales PV-Analysator
Fluke SMFT-1000/PRO Multifunction tester with I-V curve tracing tests that PV systems are performing to their optimal power output as well as operating safely. SMFT-1000/PRO is designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under and provides a complete PV testing solution that conforms to IEC 62446-1 standards. Measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting through Fluke’s TruTest™ Software without having to bring a laptop on-site. The SMFT-100/PRO includes also Advanced TruTest™ Software and MC4 Solar Clamp Test Lead Set.
Key features:
- All-in-one solar PV system testing solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
- Kit includes TruTest™ Advanced Software for solar asset management and MC4 Solar Clamp Test Lead Set
- Compare on-location I-V curve results with manufacturer I-V curve data
- Irradiance meter connection for precise real-time irradiance and temperature measurements

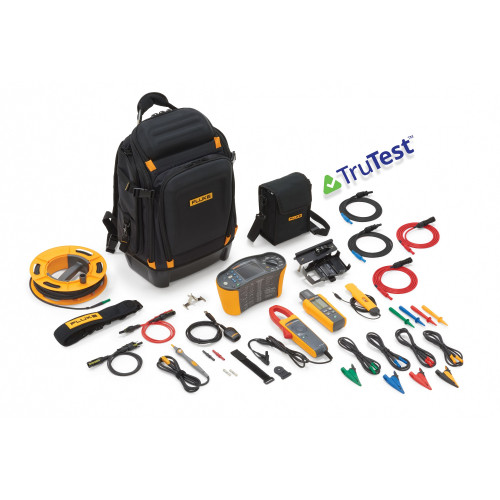

What's in the box:
- Fluke SMFT-1000-BP Professional Tool Backpack
- SMFT-1000 Multifunction PV Analyzer
- Carry Strap
- Fuse Pack
- Adapter Cable IRDA Optical-to-USB
- Zero Adapter
- IRR2-BT Wireless Solar Irradiance Meter Pro
- 80PR-IRR External Temperature Probe
- Mounting Bracket for solar panel
- Carry Case
- i100 AC/DC Current Clamp 100 A
- TPAK Magnet Set
- TP1000 Test Probe with Remote Test Button
- TL1000 Test Lead Set
- TL1000-MC4 Test Lead Set
- TL1000/30M Test Lead on Reel
- Coupler set
- PVLEAD3 MC4 Solar Clamp Test Lead Set
- TruTest™ Advanced Data Management and Reporting Software
| Functions | SMFT-1000/LITE | SMFT-1000/KIT | SMFT-1000/Pro |
| Rapid (<30 seconds), AUTO and mandatory safety tests (IEC 62446-1 Category 1) | ✔ | ✔ | ✔ |
| Extended safety: CAT III 1000 V classification (IEC 61010-2) and high voltage warning | ✔ | ✔ | ✔ |
| Intuitive user interface | ✔ | ✔ | ✔ |
| Set of test leads (incl. 2x set with MC4 connectors) | ✔ | ✔ | ✔ |
| Fluke TruTest™ Solar Database | ✔ | ✔ | ✔ |
| System performance testing (IEC 62446-1 Category 2): I-V curve plotting | - | ✔ | ✔ |
| Irradiance, temperature, tilt, compass | - | ✔ | ✔ |
| Advanced accessories (30m test lead on coil, current clamp, test probe with remote test button, optical-to-USB adapter cable, etc.) | - | ✔ | ✔ |
| Functional testing, including inverter efficiency | - | ✔ | ✔ |
| Software analysis with TruTest™ | - | - | ✔ |
| Fluke Premium Care Plan | - | - | - |
Designed for PV professionals, the SMFT-1000 solar tools kit provides a complete solution for PV installation, commissioning, inspection, and maintenance testing that conforms to IEC 62446-1 standards. Through Fluke’s TruTest™ Software, measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting without having to bring a laptop on-site.
Category 1 – IEC 62446-1 full sequence safety testing
- Protective resistance earth (Rpe)
- Voltage on open circuit (Voc)
- Short circuit current (Isc)
- Insulation resistance (Rins)
- Polarity
Category 2 – IEC 62446-1 system performance testing
While taking an I-V curve reading in the field, the SMFT-1000 will display the curve as it loads in the test data, against the module specifications as defined by the manufacturer. This makes it easy to immediately confirm measurements without the use of a laptop or tablet. Run the I-V curve test on new installations to confirm they are working according to the site specifications, or to test if existing modules or strings are working to their expected performance levels.
- I-V Curve tracing and software analysis with TruTest
- Irradiance, temperature, tilt, cardinal direction
Wireless Irradiance Meter
To perform precise I-V curve measurements, real time irradiance and temperature data is needed. The SMFT-1000 Solar Tools Kit includes the IRR2-BT irradiance meter wirelessly connects to the SMFT-1000 to communicate data in real time, providing the most accurate I-V curve measurements possible. If the wireless connection is interrupted for any reason, the IRR2-BT will continue recording data for up to 17 hours that can later be matched to tests taken with the SMFT-1000.
TruTest™ Advanced Solar Software: Spend less time processing test results and compiling reports
Cover all your certification and documentation needs through the fast and reliable TruTest™ software. TruTest™ integrates solar asset management, data storage and reporting on a single platform. Whether you are analyzing panel efficiency through I-V curves, or safety testing the system through the Category 1 test regime in conformance to IEC 62446-1, proper data management is critical for producing easy-to-understand reports for clients. TruTest™ Software allows you to quickly and easily import measurement results directly from your solar multifunction tester to your computer, organize and analyze the data, compare individual asset data against previous measurements imported and provide a comprehensive and visual client report.
- Easily manage measurement data from solar site installation and commissioning testing
- Quickly create inspections and reports compliant with IEC 62446-1 and other directives
- I-V curve analysis with easy pass/fail visuals; see changes in I-V curve over multiple site visits
- Compare site data to previous site data to see changes over time
