KEYSIGHT B2960C Series, Low Noise Power Source Introduction
KEYSIGHT B2960C: 6.5-Digit Power Sources with Ultra-Low Noise
The KEYSIGHT B2960C series represents excellence in precision sources for IV testing, combining 6.5-digit resolution (100 nV/10 fA), ultra-low noise (down to 10 µVrms), and advanced features for critical laboratory and production applications.
Available models: B2961C (1 channel) and B2962C (2 independent channels)
Bipolar range: ±210 V / ±3 A (DC) / ±10.5 A (pulse)
Arbitrary waveform generation (1 mHz - 10 kHz) and device emulation modes
Interfaces: USB, LAN, GPIB, digital I/O
Main Applications
Characterization of semiconductors, ADC/DAC, and RF circuits
Testing of solar cells, biomedical sensors, and nanostructured materials
Precision analysis of power supplies, converters, and storage systems

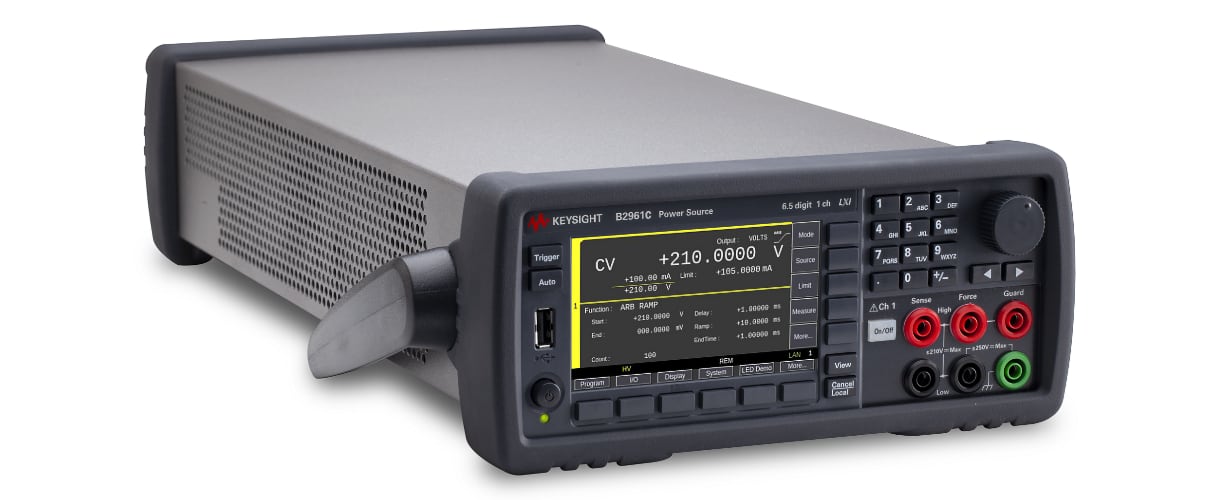

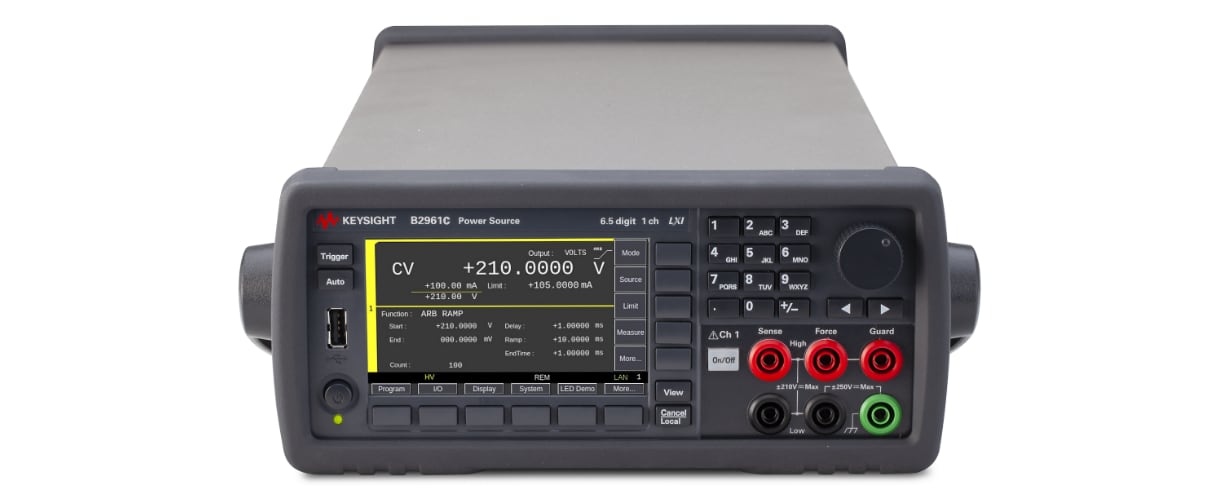

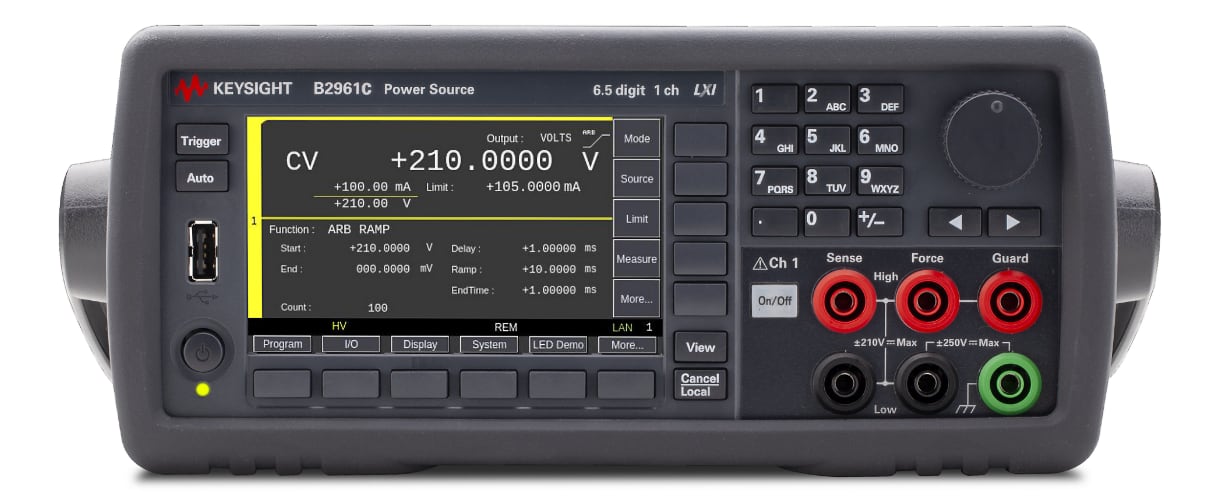

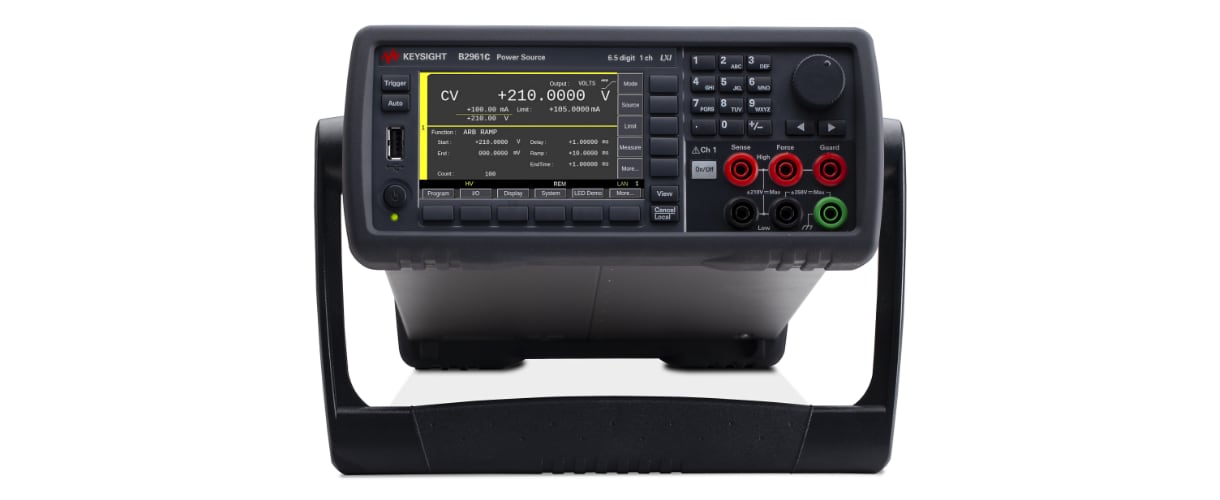

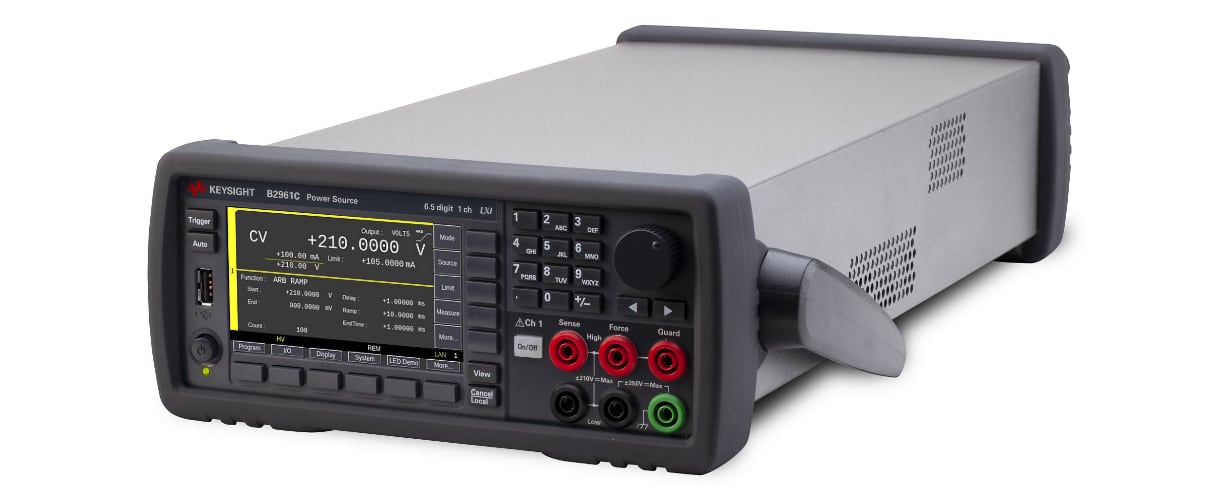

B2961C - 1-Channel SourceSingle channel source with 6.5-digit resolution, ideal for high-precision testing on semiconductors and low-power devices.

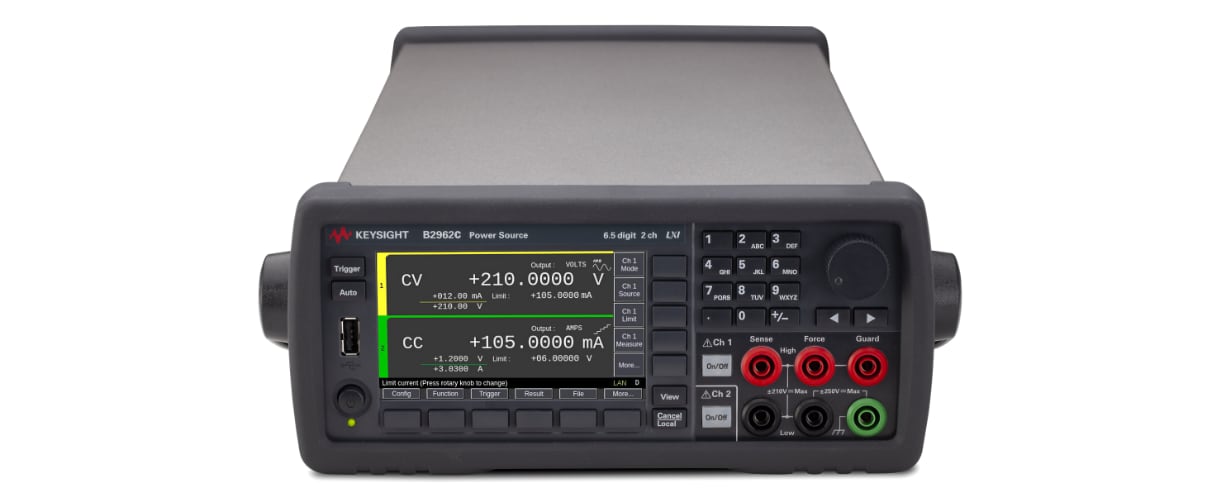

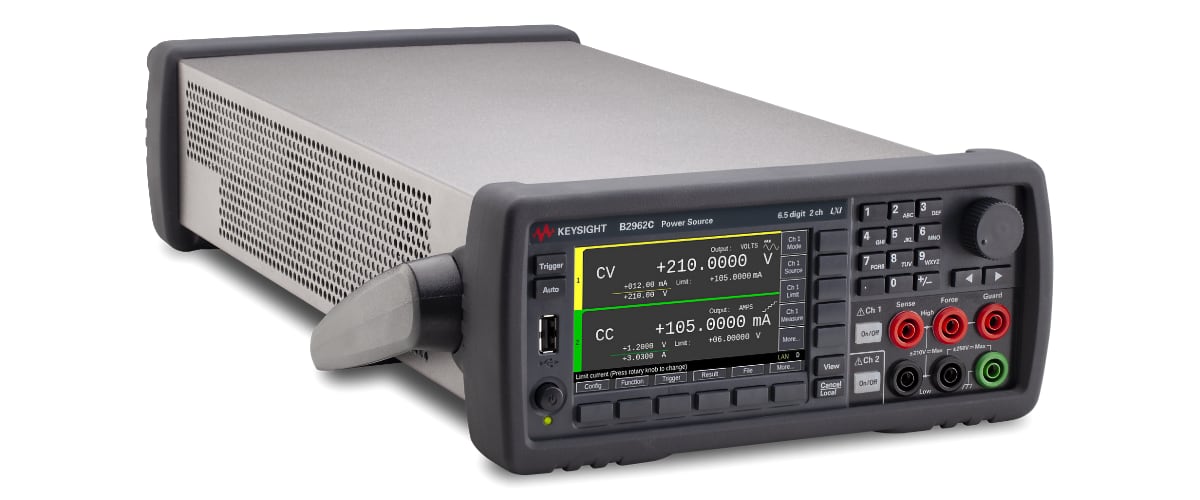

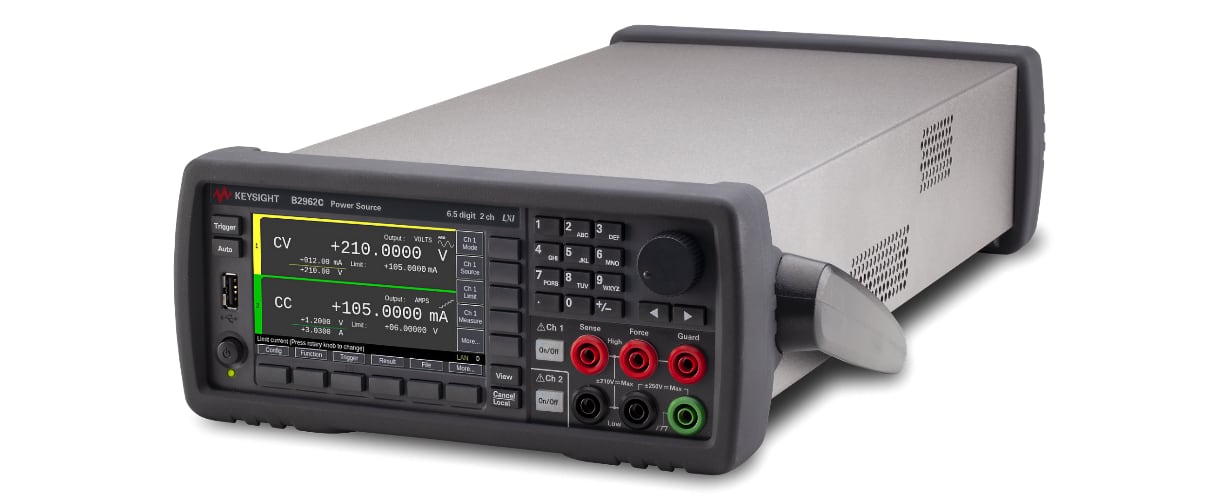

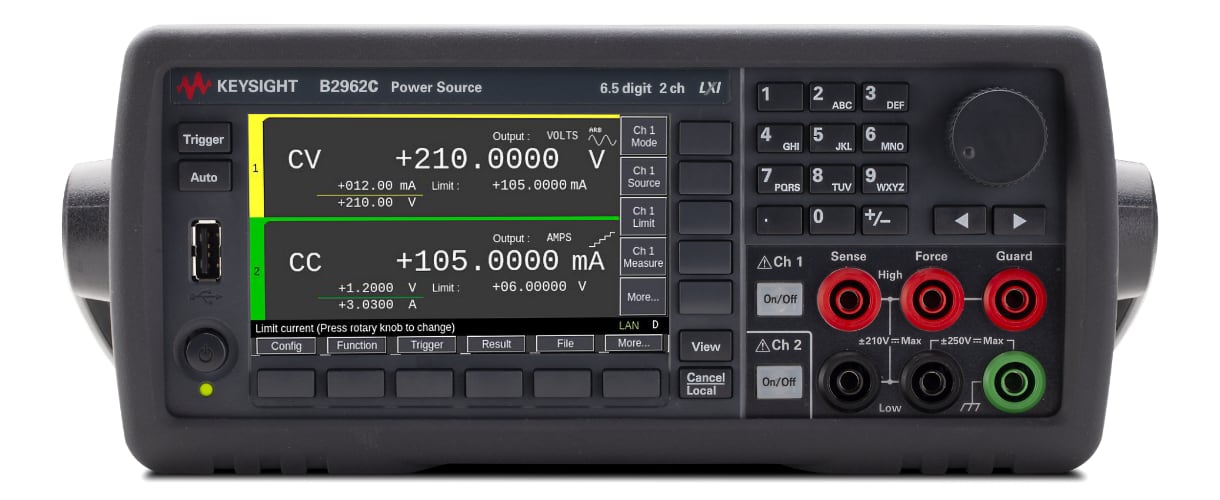

B2962C - 2-Channel SourceDual channel for synchronized testing on inverters, power supplies, and complex systems with independent control.
Features
B2961C
B2962C
Channels 1
2 (independent)
Max Voltage ±210 V DC / ±200 V (pulse)
Max Current 3 A DC / 10.5 A (pulse)
3 A DC / 10.5 A (pulse per channel)
Resolution 100 nV / 10 fA (6.5 digits)
Noise (RMS) 10 µVrms (with optional filter)

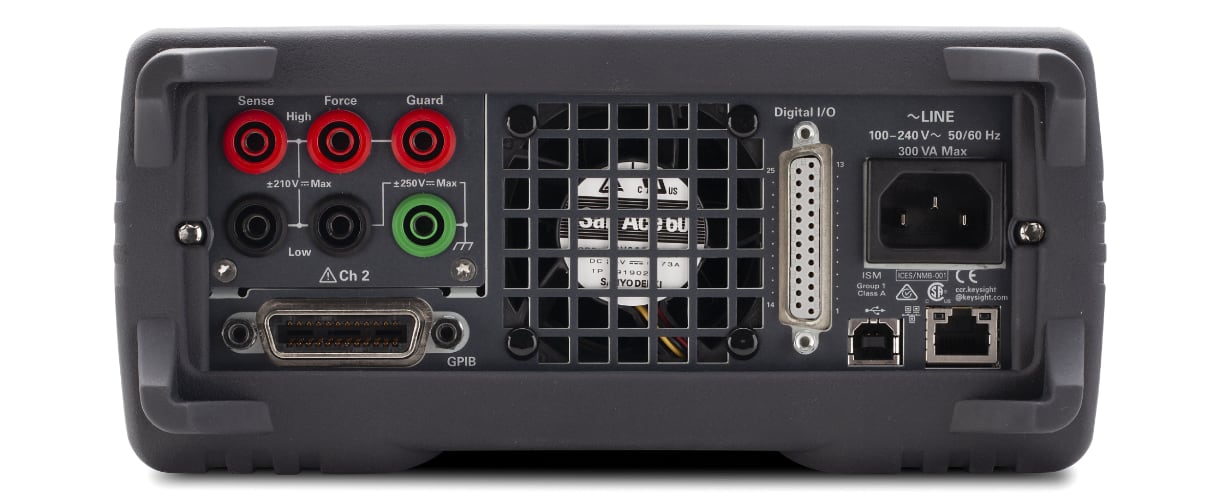

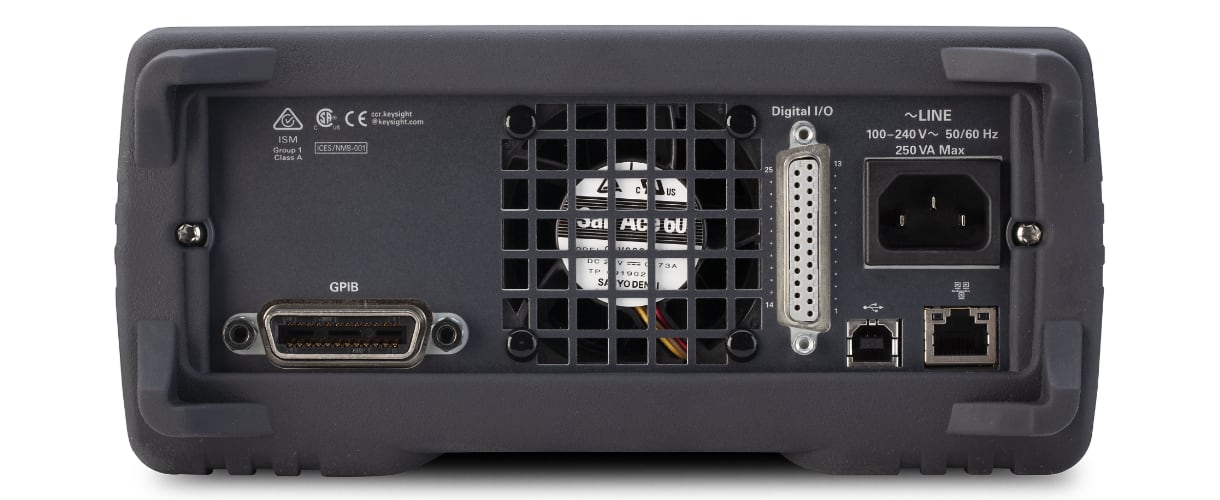

Interfaces USB, LAN, GPIB, digital I/O
Display 4.3" touchscreen with real-time graphs
Recommended Accessories

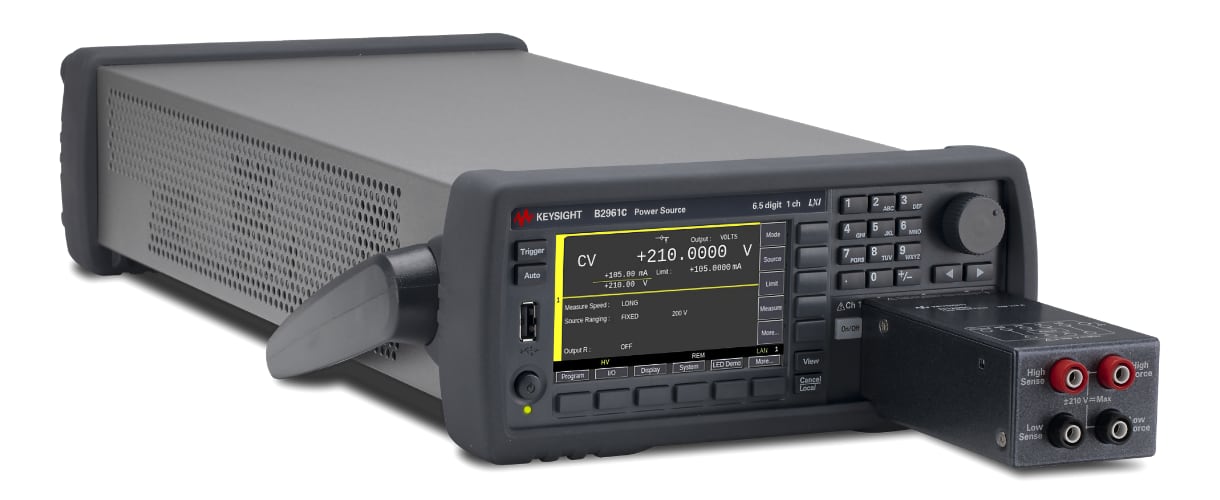

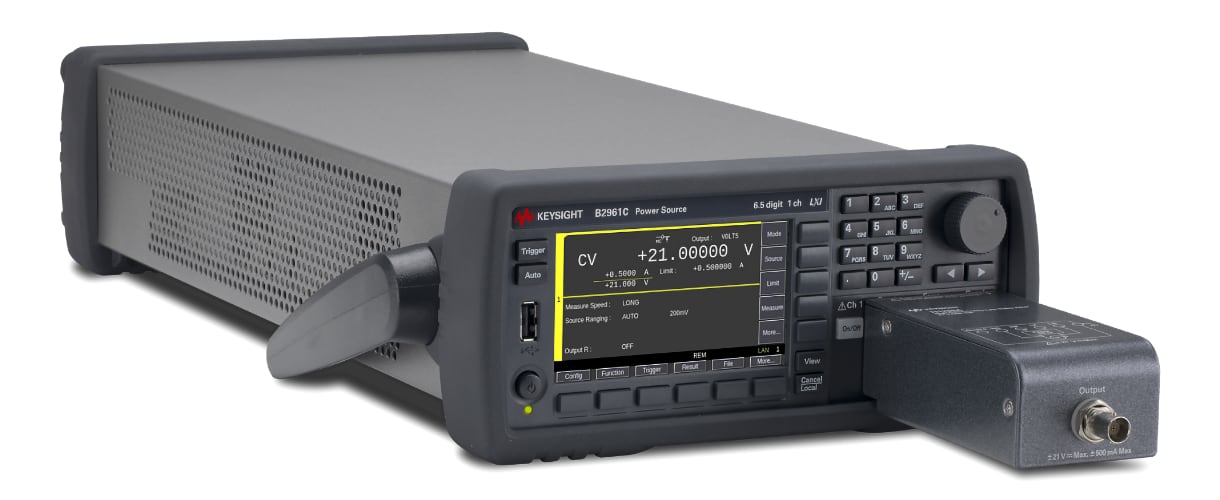

N1297A/B: Banana-triax adapters (2/4 wires)N1298C: Low-noise filter for high-power applications16494A: Low-dispersion triaxial cables (1.5 m / 3 m)
Automation and Control
PathWave BenchVue and IV Curve software for preconfigured tests
IVI/LabVIEW drivers and SCPI commands
Integrated Web GUI for remote browser control
