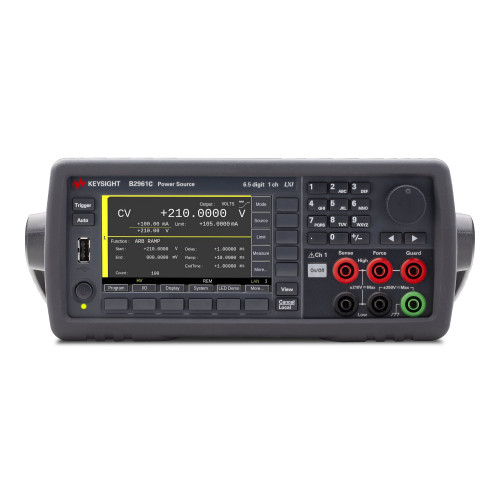

KEYSIGHT B2961C, 6.5 Digit Low Noise Power Source, 1 channel, 210 V, 3 A
KEYSIGHT B2961C is a 6.5-digit low noise precision power source designed for advanced testing and characterization of electronic devices, sensitive materials, and analog circuits. It offers a wide bipolar range (±210 V, ±3 A DC, ±10.5 A pulse) in true 4-quadrant operation, with arbitrary waveform generation and programmable output resistance emulation.
Main features:
- 1 independent channel
- Voltage range: ±210 V
- Current range: ±3 A DC / ±10.5 A pulse
- Resolution: 6.5 digits (100 nV / 10 fA minimum)
- Ultra-low noise: down to 10 µVrms with optional filters
- Arbitrary waveform generation (1 mHz – 10 kHz, up to 100,000 points)
- Programmable resistance and V/I emulation modes
- 4.3" color LCD with intuitive GUI (numeric, dual, and graph views)
- Integrated 4.5-digit voltage/current monitor
- Interfaces: USB 2.0, LAN (LXI), GPIB, digital I/O
- Protections: OVP/OCP, safety interlock
- Dimensions: 88 × 213 × 450 mm; Weight: 6 kg
Typical applications: ADC/DAC testing, precision analog circuits, sensors, medical devices, advanced materials, solar cells, research and development.
Included accessories: power cable, USB cable, quick reference guide.
