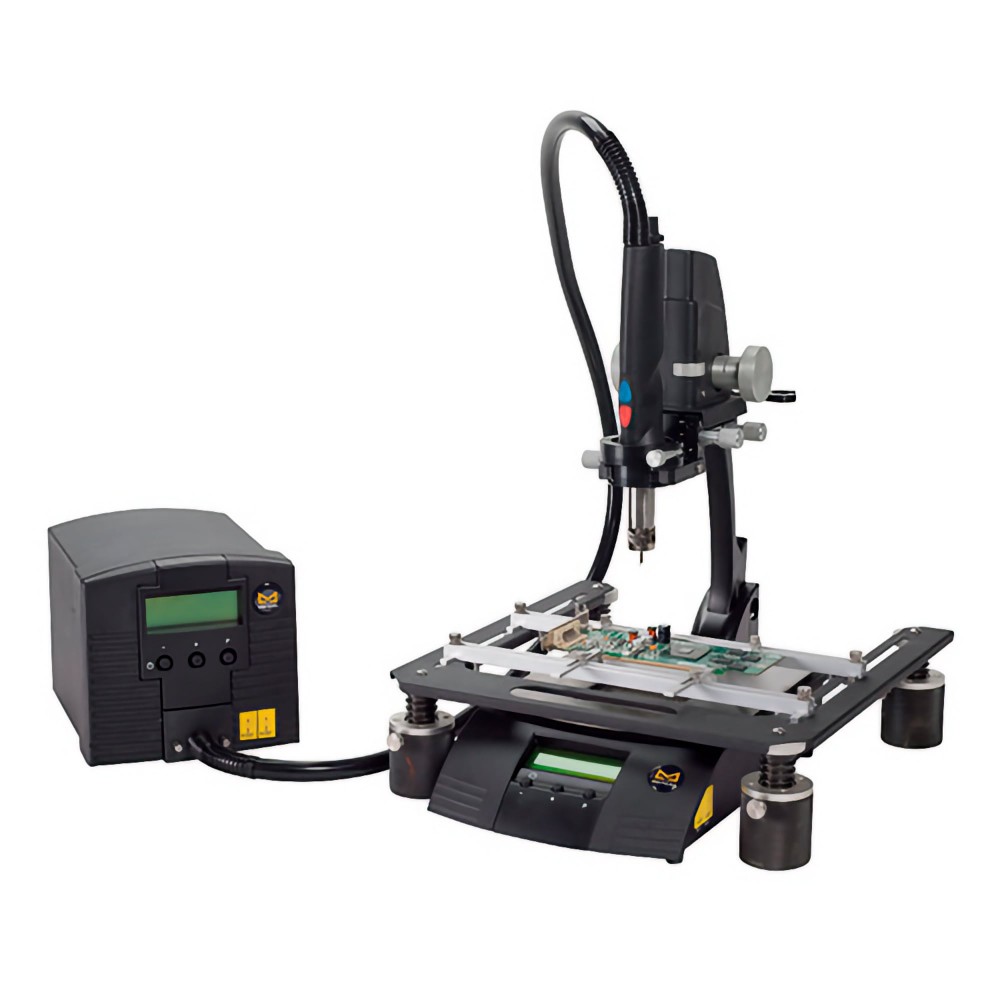

Metcal MRS-1100A Modular Rework System, Advanced
Metcal MRS-1100A modular system is an integrated convection station designed for the rework and assembly of BGA, CSP, and SMT components. The configuration combines a hot-air tool, a preheater, an adjustable stand, and an independent board holder. Via a digital interface, the unit stores up to fifty profiles, enabling advanced four-zone or fixed-temperature programming. Temperature control, which can be managed internally or via a thermocouple at the joint, ensures maximum flexibility and operational precision.
Product Comprise of:
- The 4 components of the MRS-1100A are:
- HCT-1000 Programmable Handheld Convection Tool.
- PCT-1000 Programmable Pre-heater.
- ATH-1100A Adjustable Tool Holder.
- BH-2000 Freestanding boardholder
Features and Benefits:
- Digital display for repeatable temperature settings and profile control
- Automatic control of the preheater for simple operation
- Easy profile creation for operator repeatability
- Integrated vacuum pickup for easy component removal
- Hand held or tool holder mounted for operator comfort
- Manual mode for quick setup
- External thermocouple for process setup and verification
- Digital controlled airflow for repeatable results
- X, Y, Z and Theta controls forcomponent alignment
- Adjustable PCB holder for easychange outs
- Automatic vacuum lift off at theend of the cycle
- Password lockout of programmedprofiles
