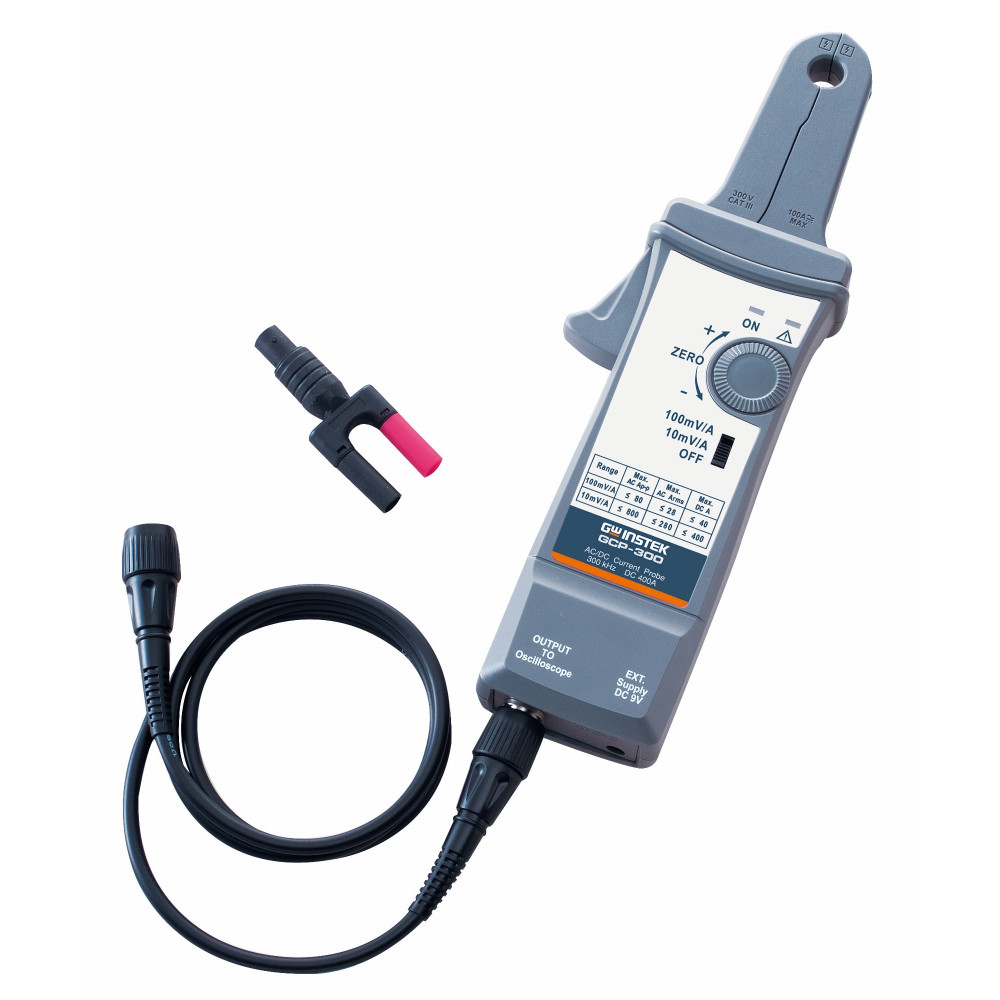

GW Instek GCP-300 300kHz/200A Current probe
GW Instek GCP-300 300kHz/200A AC/DC Current Probe
Features:
- Bandwidth: DC ~ 300kHz
- Max. Measure Range: 200A and 20A (10mV/A) (100mV/A)
- Overload Indicator
- Designed to measure AC and DC current
- Equipped with an AC power converter
- Designed to give priority to the external power supply
The GCP-300, GCP-500 and GCP-1000 are designed to measure AC and DC current. The test frequency range of GCP-300 is from DC to 300kHz; GCP-500 is from DC to 500kHz and GCP-1000 is from DC to 1MHz. For the current measure range of GCP-300 is from 50mA to 200A; GCP-500 is from 30mA to 150A and GCP-1000 is from 20mA to 70A (Do not clamp the probe onto circuits with voltages greater than 600 VAC). The current probe is equipped with an AC power converter and designed to give priority to the external power supply. If there is no 9V alkaline battery or the power is insufficient, the AC power converter can be used to provide power so that the measurement will not be affected.
