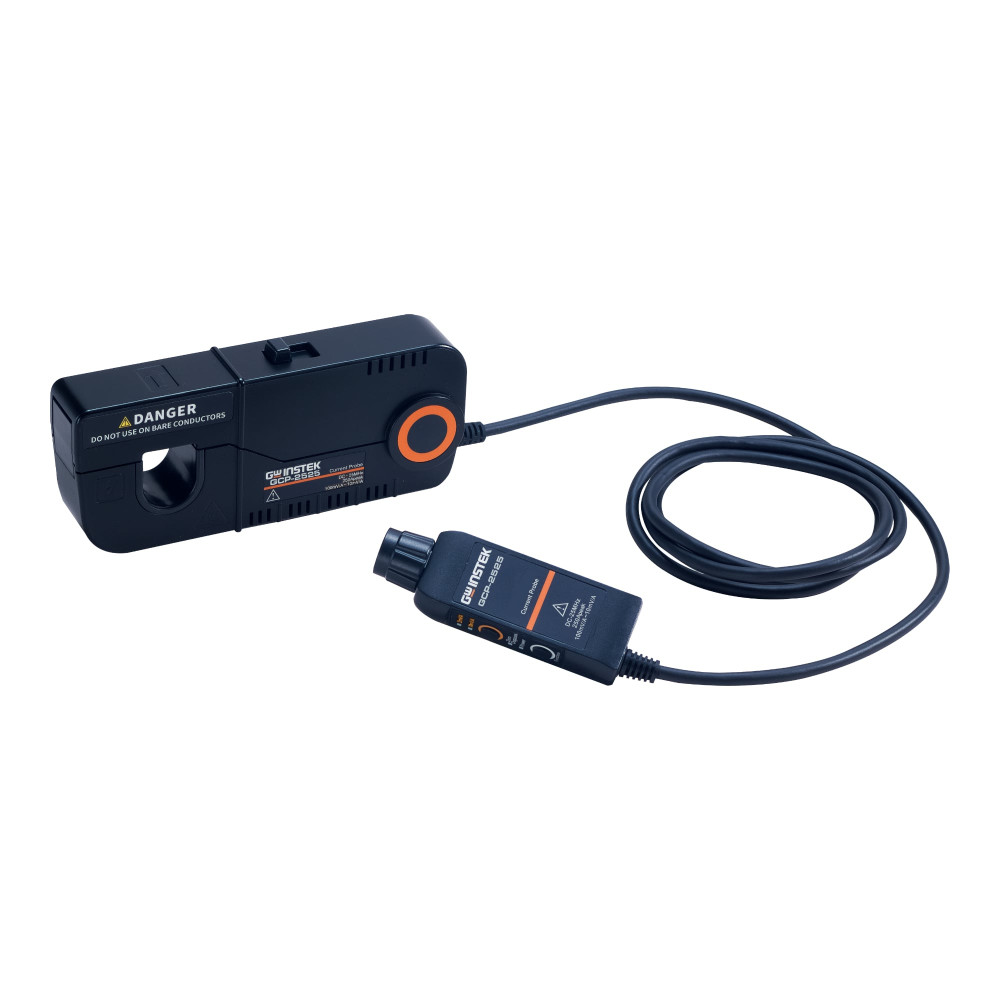

GW Instek GCP-2525, 25 MHz, 250A AC/DC Current Probe
GW Instek GCP-2525 current probe is the ideal solution for high-frequency AC/DC current measurements. Its split-core structure allows for quick and non-invasive installation on conductors, facilitating measurements in any context.
This high-performance probe offers a wide bandwidth from DC to 25 MHz and a fast rise time of less than 14 ns, making it perfect for analyzing fast signals. It can measure continuous currents up to 170 Arms and non-continuous peaks up to 250 A. It is the ideal tool for critical applications such as analyzing switching power supplies, inverters, and power converters when used with a GW Instek oscilloscope.
Key features:
- Bandwidth: DC - 25 MHz
- Maximum Continuous Current: 170 Arms
- Peak Current (non-continuous): 250 A
- Fast Rise Time: ≤ 14 ns
- Design: Split-core with a 20 mm jaw diameter
- Insulated Line Voltage: 600 V CAT II / 300 V CAT III
