Elektro Automatik EA-BIM 20000: Battery Impedance Meter Introduction

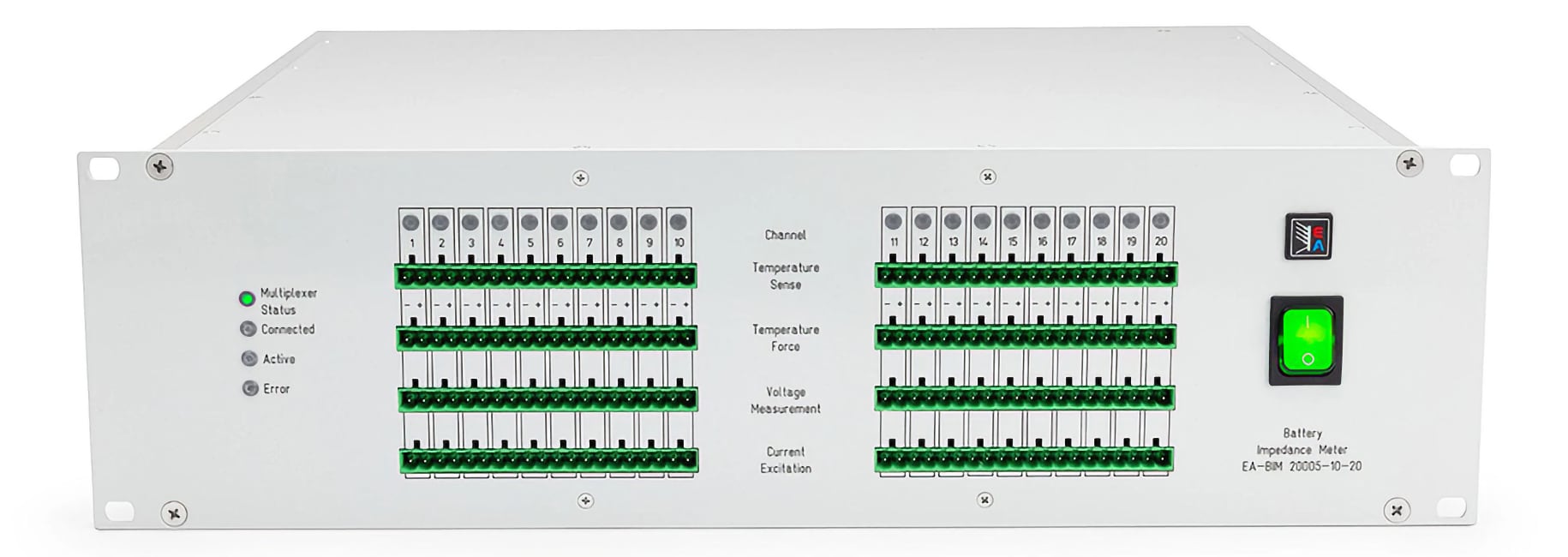

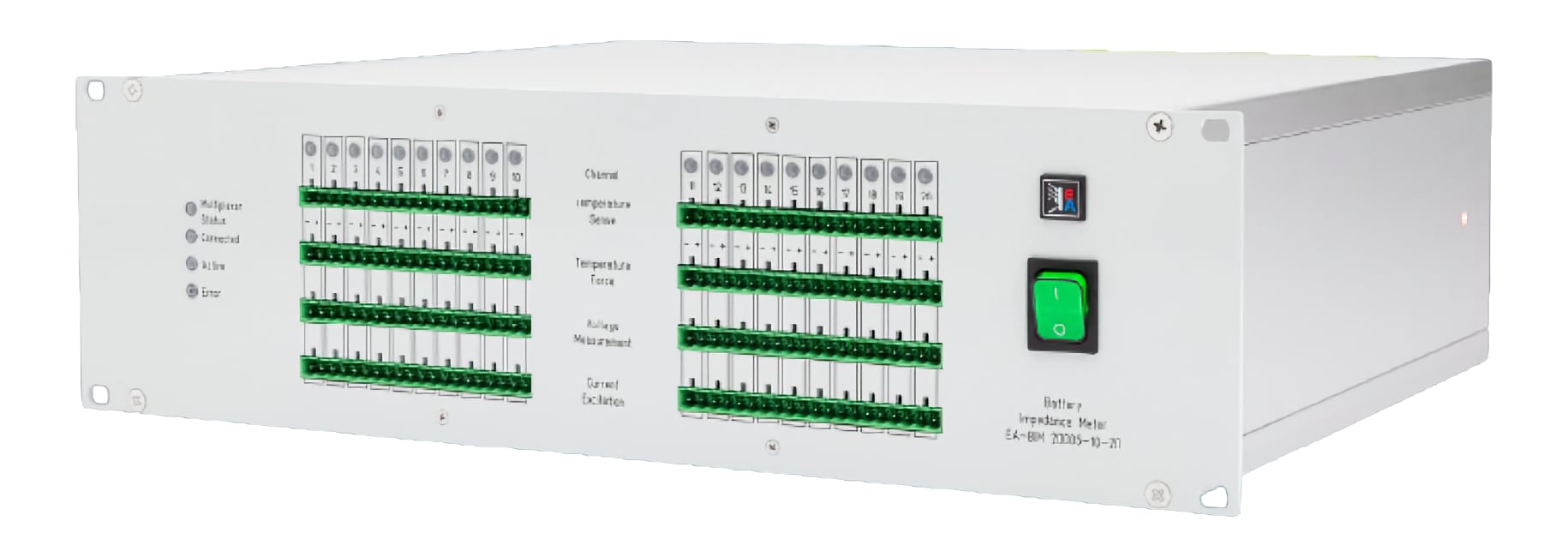

Elektro Automatik EA-BIM 20005 is a 20-channel impedance meter designed for fast and reliable testing of Li-ion cells. Perfect for high-productivity industrial testing, it offers precise measurements, thermal management, and automated connectivity, all in a compact format.
- 20 channels with simultaneous impedance and PT100 temperature measurement
- Frequency range from 1 mHz to 10 kHz, up to 10 A AC (peak-to-peak)
- Parallel multi-sine for ultra-fast EIS (Electrochemical Impedance Spectroscopy) testing
- Included software for management, analysis, and advanced test automation

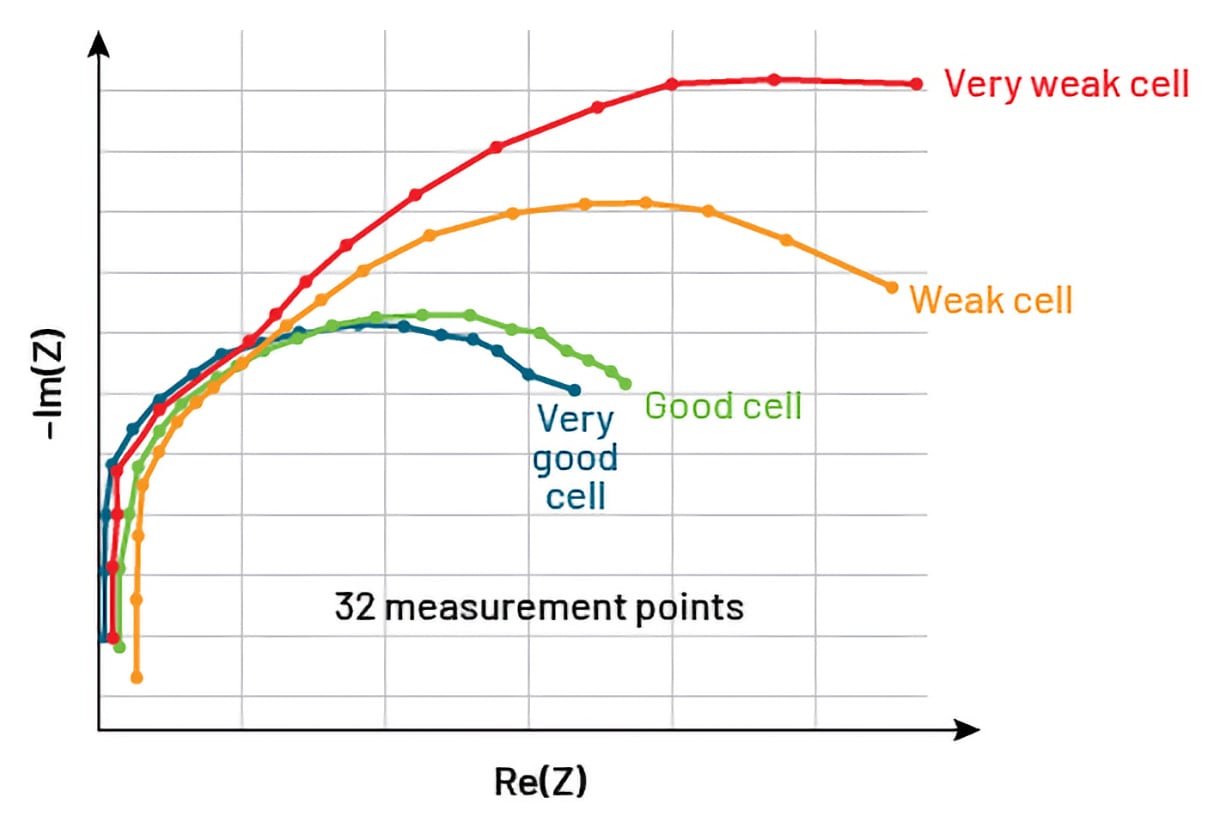

Accurate impedance and deeper insight
Broadband EIS offers deeper insight into the condition of your battery cells.
Impedance measurement accuracy better than 1%
- Frequency range from 1 mHz to 10 kHz
- 20 channels of 4-wire PT100 temperature sensors
- Includes built-in cell charge/discharge up to 1 A at 5 V
- Combine with larger test systems such as EA-BCTS

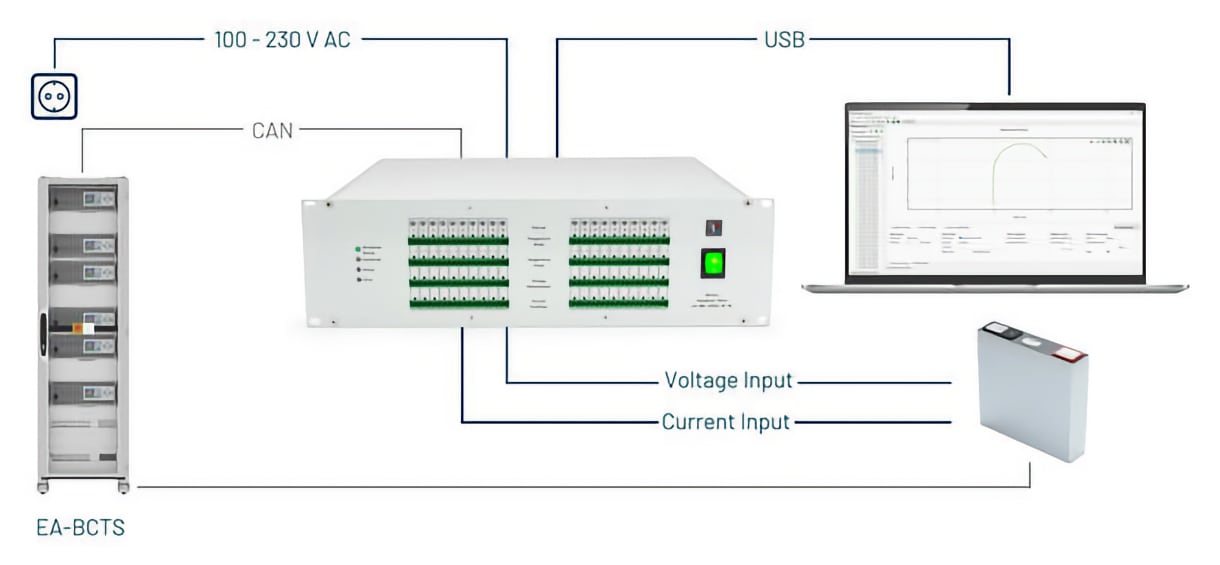

Easily add EIS to your battery testing
The EA-BIM 20005 impedance meter integrates easily into existing battery test automation systems.

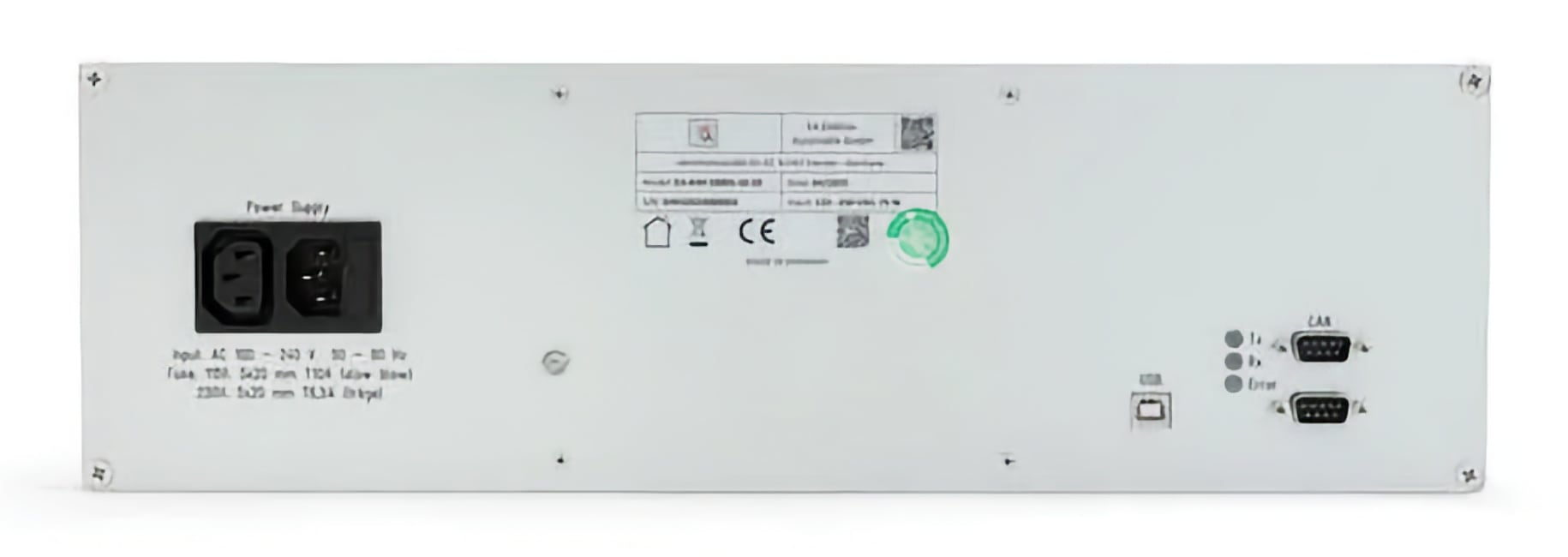

- USB device port for connection to PC
- CAN bus to communicate with battery cycling test systems
- 20 EIS plus temperature channels in just a 3U rack size
- Power consumption < 60 W

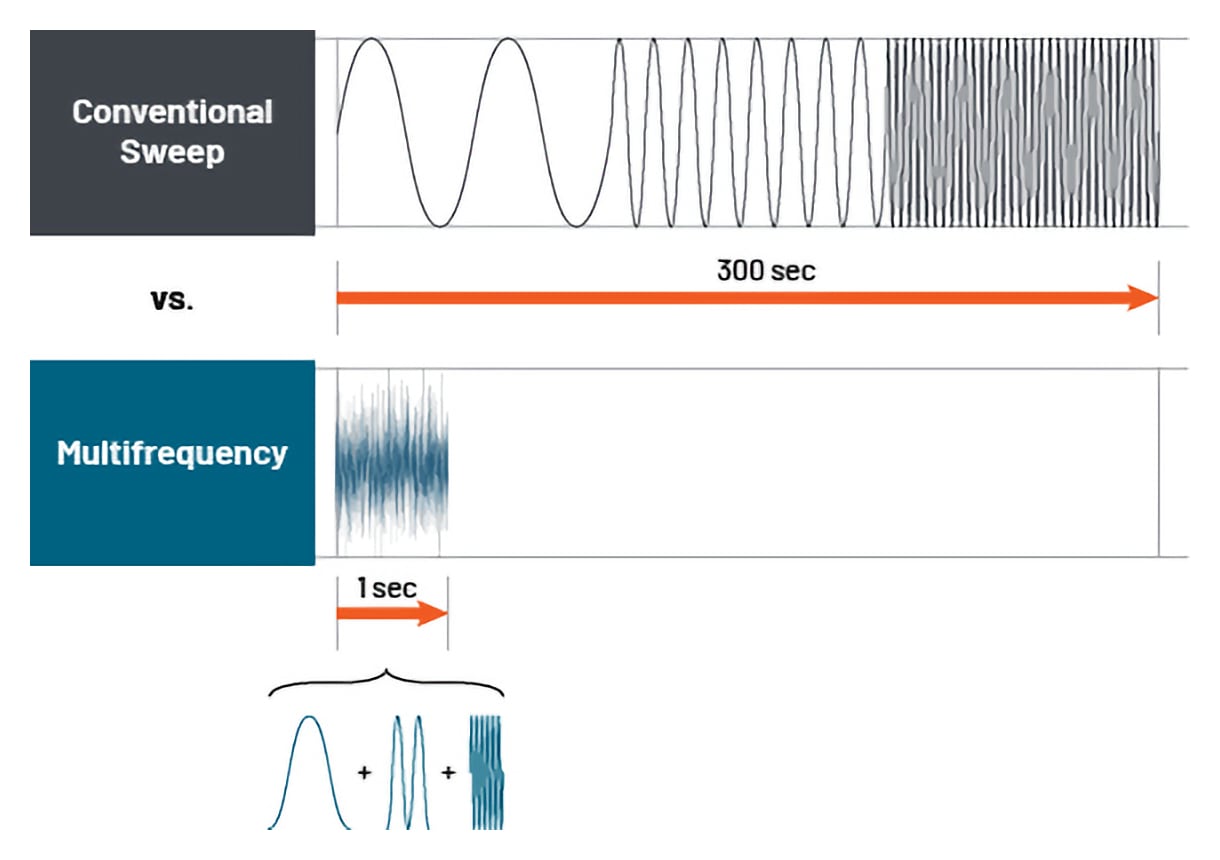

Fastest EIS in the industry
The BIM 20005 is the perfect choice for high-volume testing.
- Multi-frequency pulses deliver measurements hundreds of times faster than traditional sweep methods
- 20 multiplexed EIS measurement channels

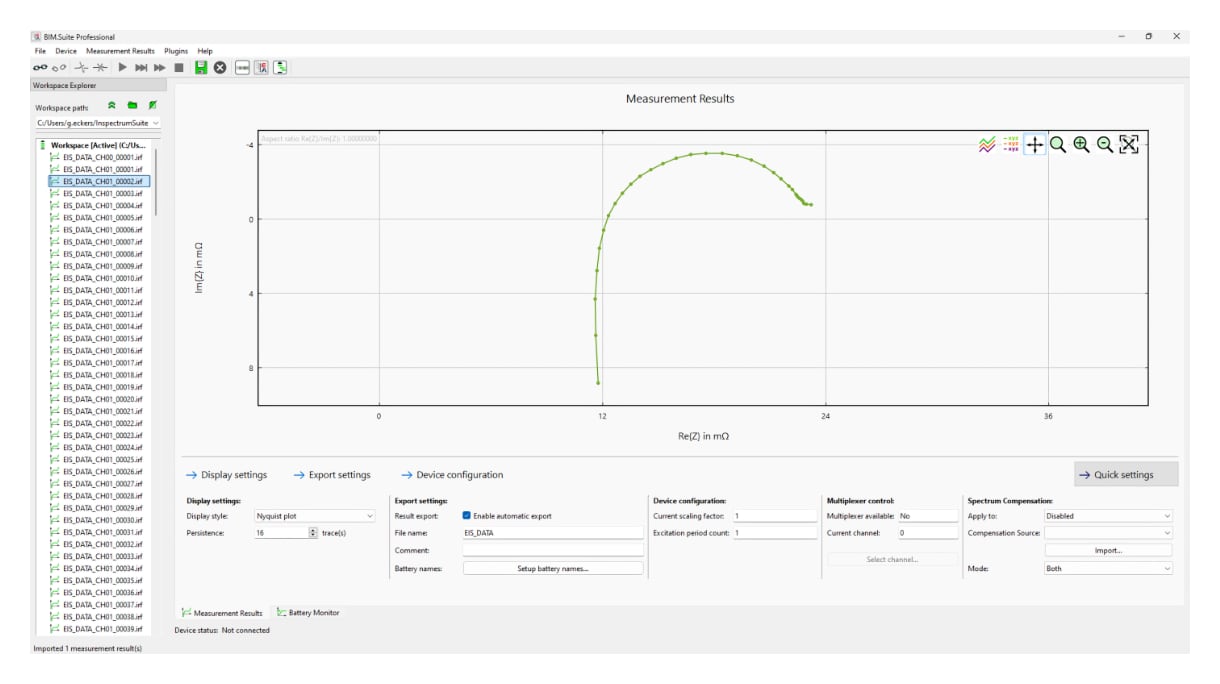

Simple and intuitive electrochemical impedance spectroscopy
The included BIM.Suite software is easy to use and powerful, catering to all your cell characterization needs. Configure settings effortlessly and start your first EIS measurement immediately.
- Evaluate results with built-in visualization and analysis
- Perform standard sweep or rapid multi-sine measurements
- Measure while charging or discharging
- Save results in your preferred file formats
