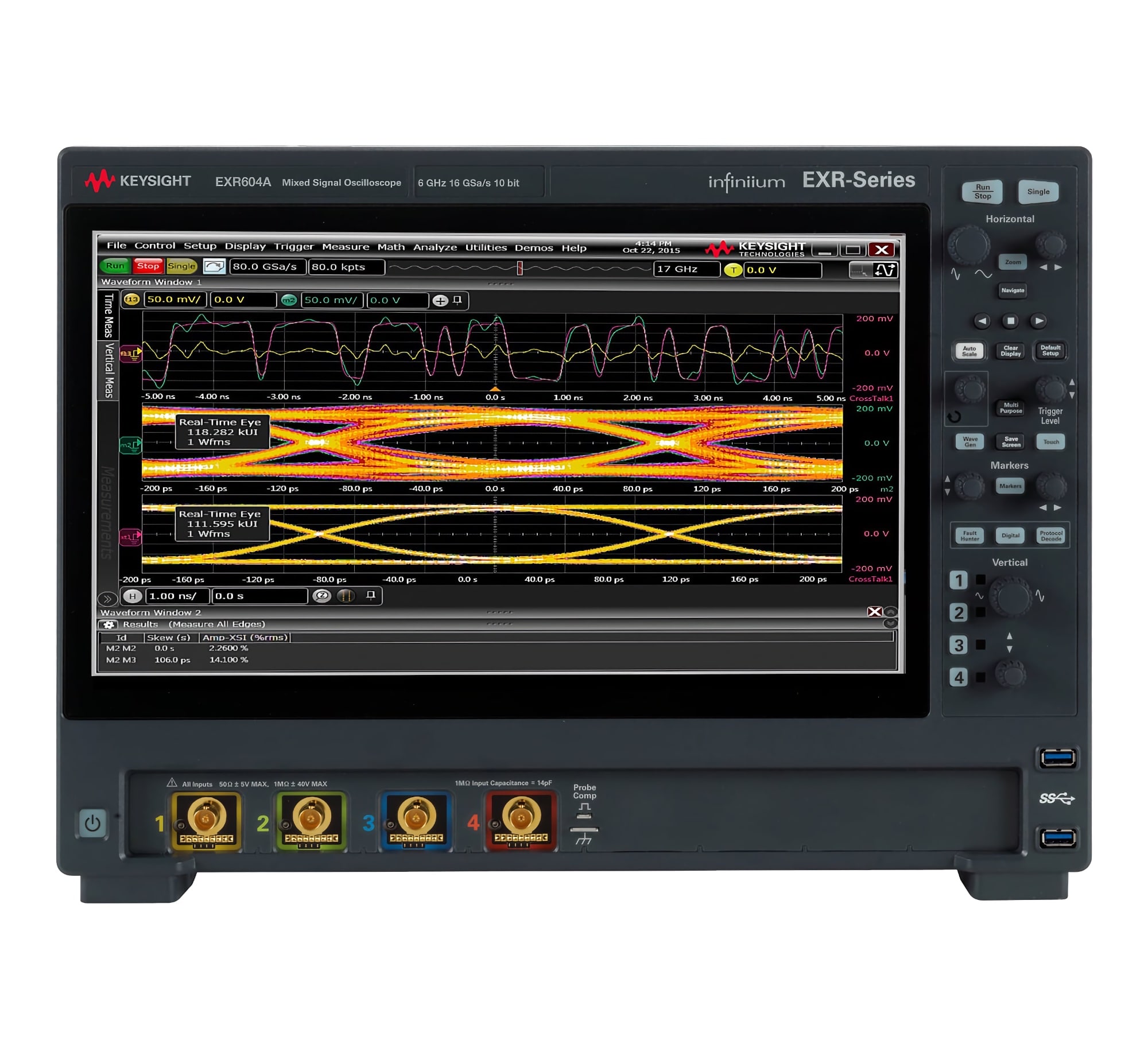

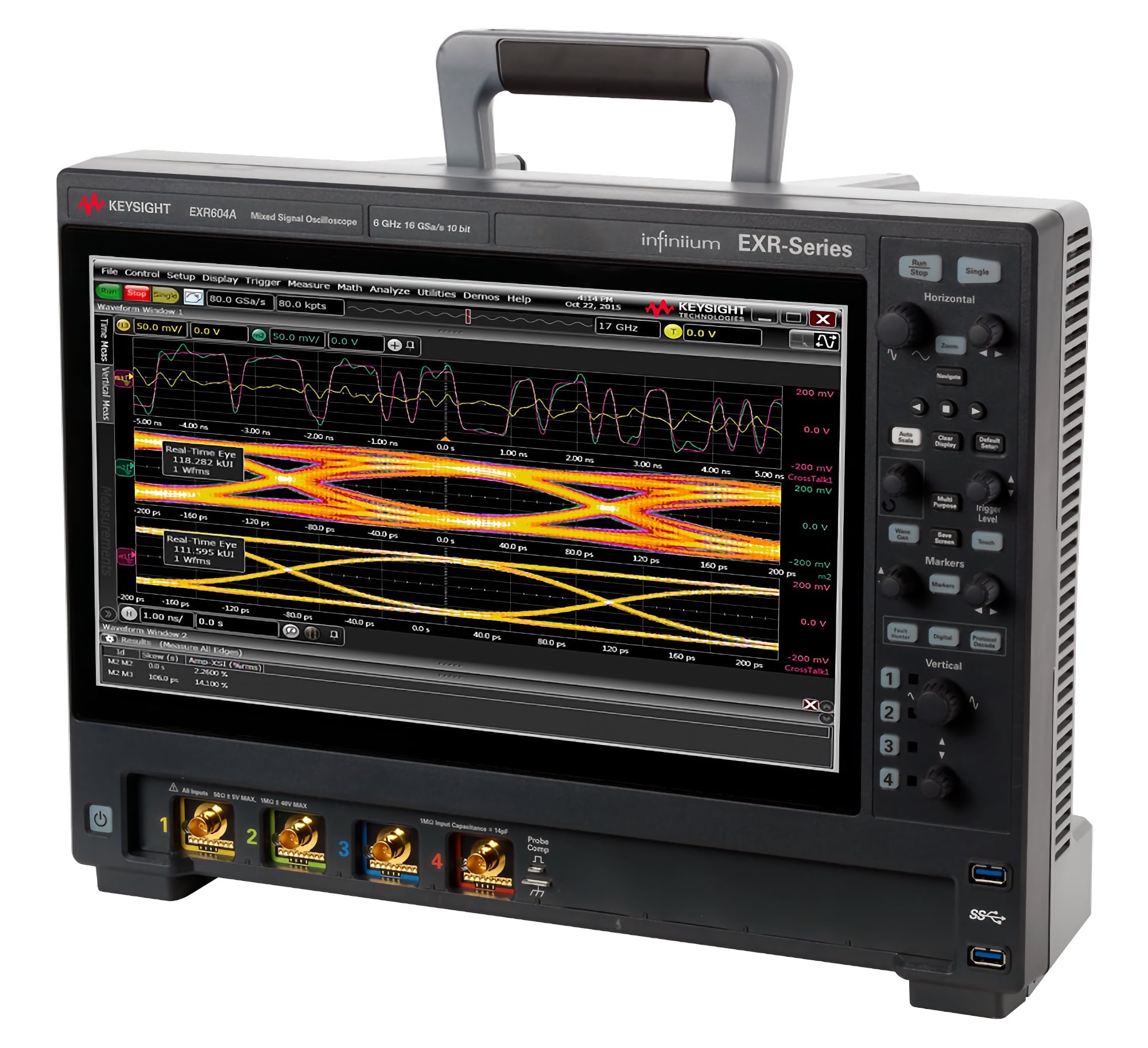

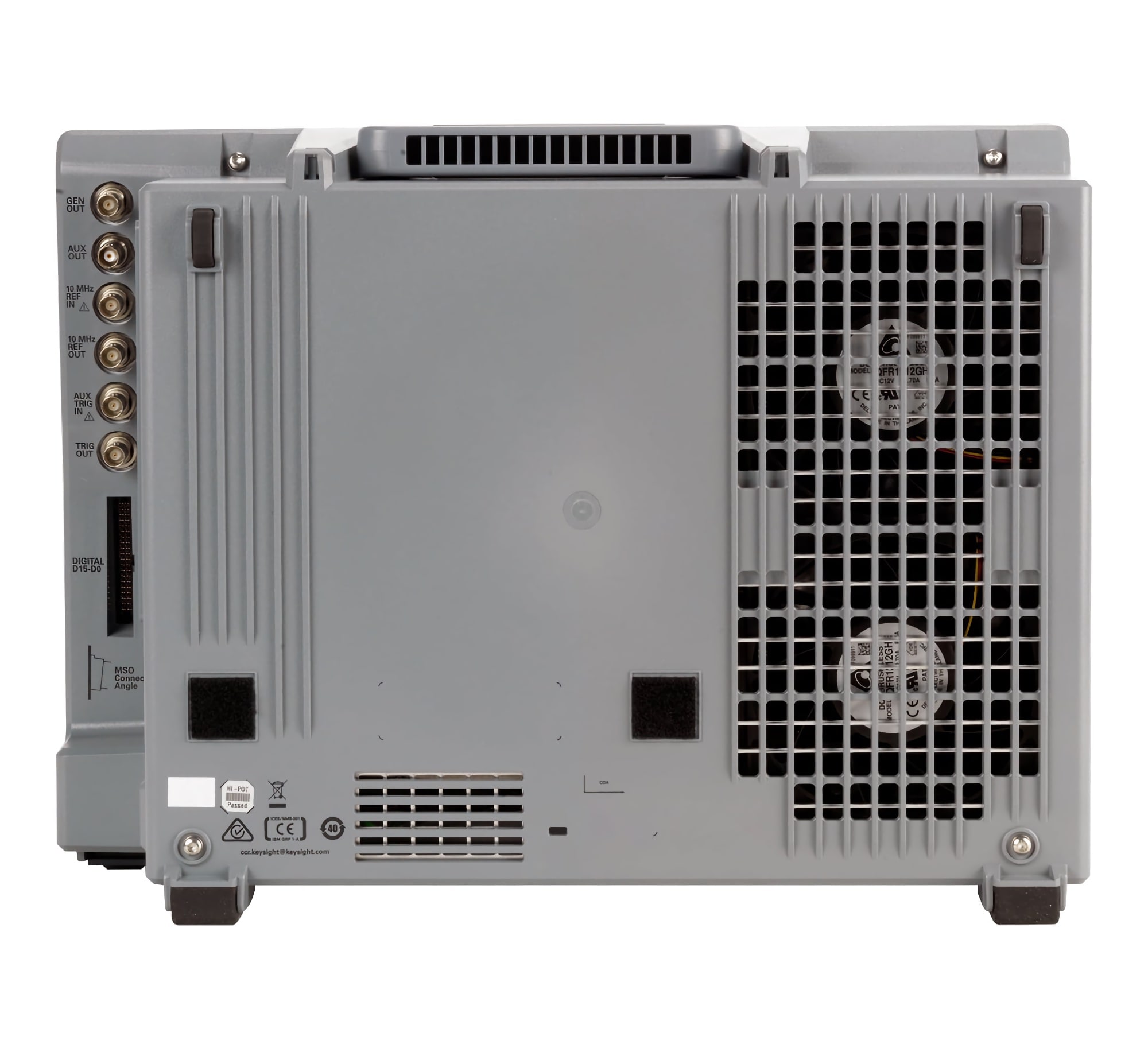

Meet the Infiniium EXR-Series with new 4 and 6 GHz models
Welcome to your all-new Infiniium EXR-Series. With eight models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, your Infiniium EXR-Series is powerful, easy to own, and intuitive to use.
| |
Infiniium EXR-Series Specifications |
| Analog channels |
4 or 8, upgradeable |
| Bandwidth |
500 MHz to 6 GHz, upgradeable |
| Sample rate |
16 GSa/s |
| Memory |
100 Mpts, upgradeable to 400 Mpts or 1.6 Gpts flexible memory 1 |
| Resolution |
10 bits, up to 16 bits with high resolution |
| ENOB |
As high as 9.0 |
| Digital logic channels |
16, dedicated input, upgradeable |
| Update rate |
> 200,000 wfm/s |
| Eye diagram speed |
> 750,000 UI/s |
| Screen display |
15.6” touch, full HD, dual screen support |
1. Check the data sheet specification tables to learn more about the 1.6 Gpts combined flexible memory option.
| Integrated Tools |
Option |
| 16 digital channels |
EXR2MSO |
| 50 MHz waveform generator |
EXR2WAV |
| Bode plotter |
Included with D9110PWRA or EXR2WAV |
| 4-digit Voltmeter, 10-digit counters |
Standard |
| Protocol analysis |
Various, check data sheet |

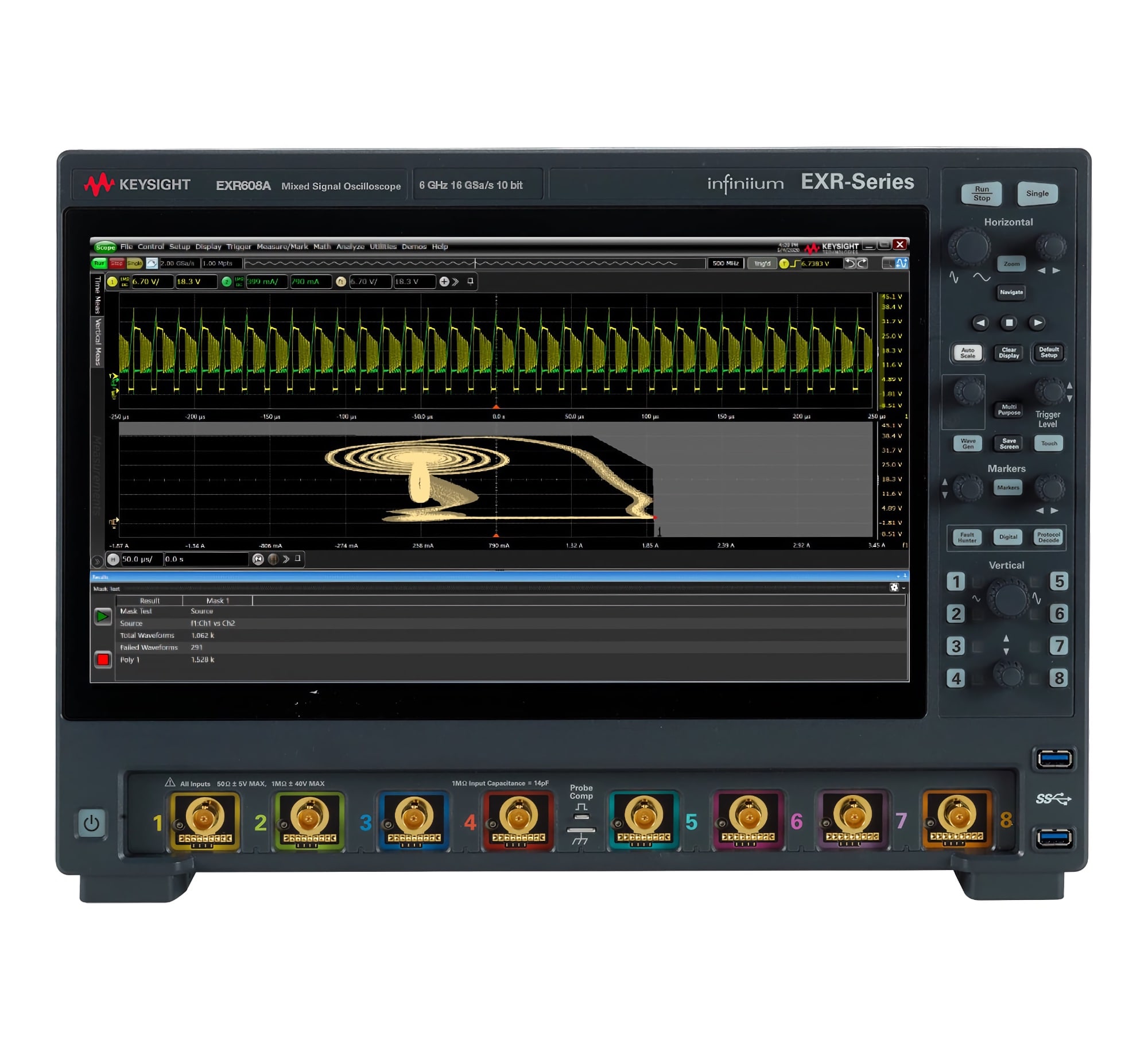

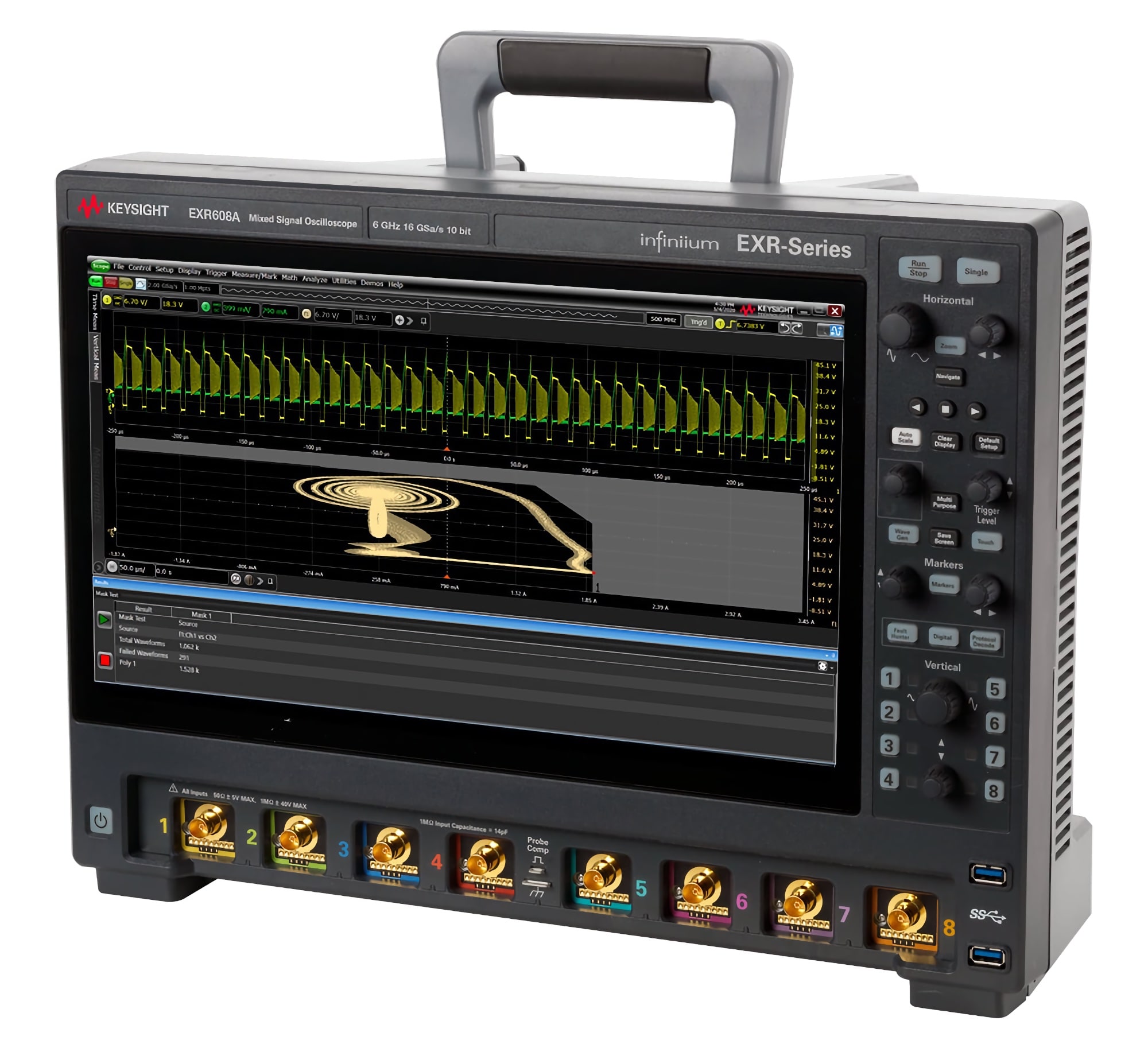

See More in the Time Domain with Eight Analog Channels
The Infiniium EXR-Series offers up to 6 GHz of bandwidth and 16 GSa/s sample rate on every single one of its four or eight channels. Combined with 100 Mpts of standard memory per channel, flexible threestage triggering, over 50 standard measurements, a massive library of application-specific packages, and ASIC-accelerated testing, the Infiniium EXR-Series lets you see more of your signal than ever before.
