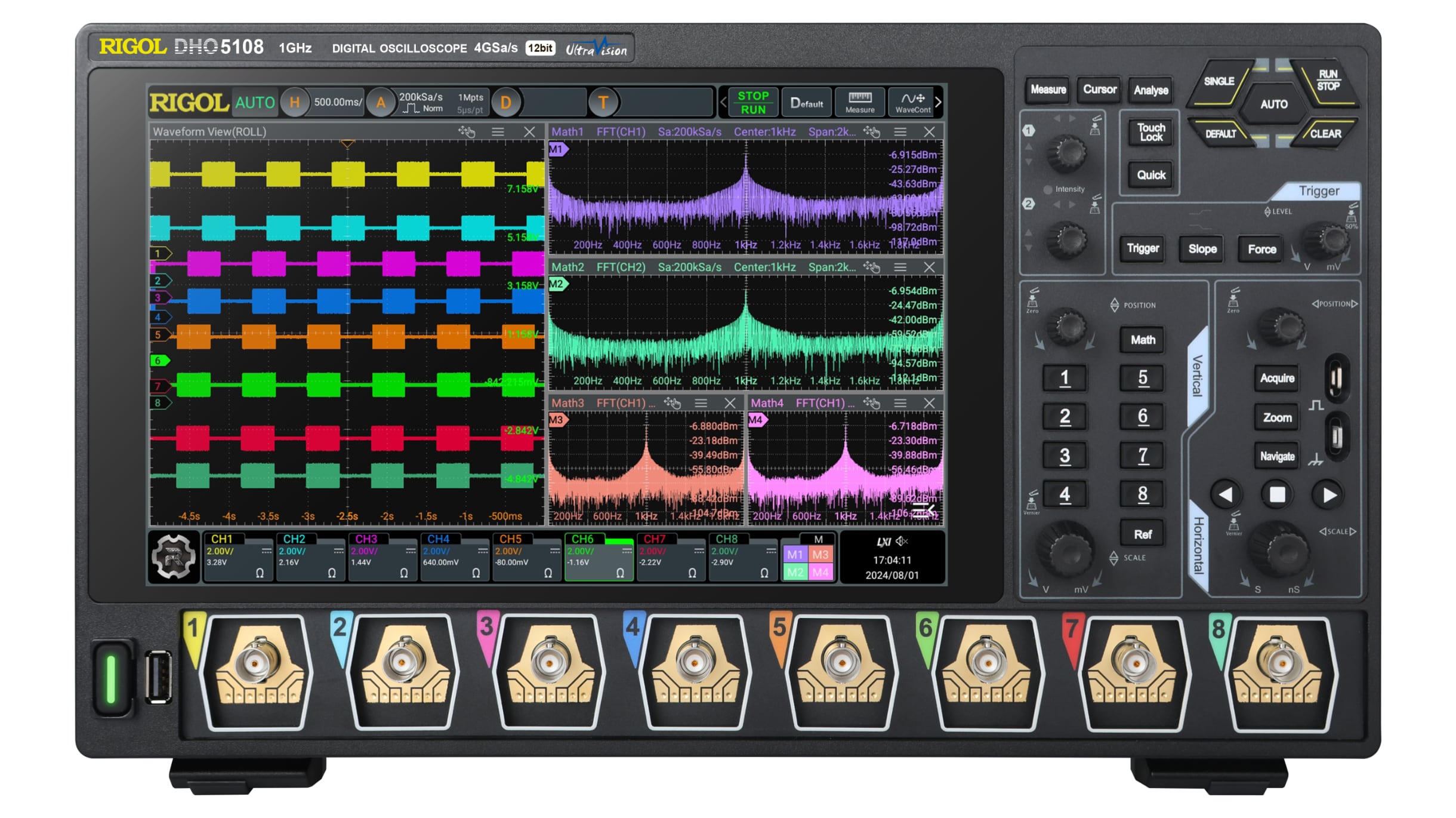

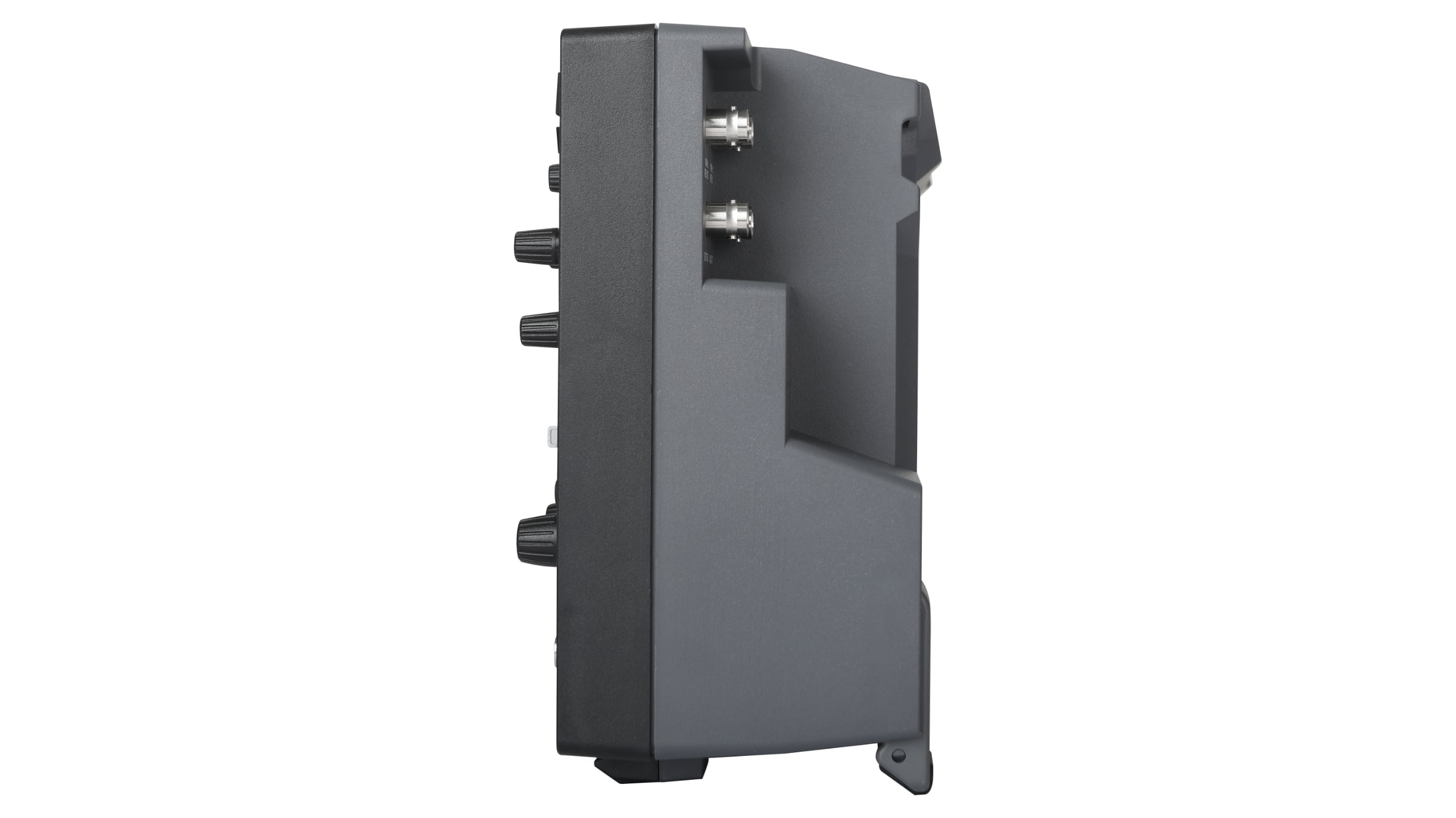

RIGOL MHO/DHO5000 Series Digital Oscilloscope Introduction
RIGOL MHO/DHO5000 is a up to 8 channels high-resolution digital oscilloscope series, designed for the vast mainstream digital oscilloscope market to meet the design, debugging, and test demands. It is developed based on RIGOL's brand new self-developed Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test demands for higher accuracy. The MHO/DHO5000 series digital oscilloscope has multiple models, supporting arbitrary waveform generator, digital signal analysis, Bode plot, and other functions.
Product Features:
- Based on RIGOL's brand new self-developed Centaurus technical platform
- 12-bit resolution for all the series (up to 16-bit in high resolution mode)
- Maximum 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
- 16 digital channels for the MHO models (logic analyzer probe required)
- Real-time sample rate: up to 4 GSa/s
- Maximum memory depth 500 Mpts
- Vertical sensitivity up to 100 μV/div
- Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode
- Arbitrary Waveform Generator and Bode plot for MHO5054 and MHO5104 models
- Power analysis, histogram, digital signal analysis and protocol decodings
- Search and navigation function helps users quickly search for the signals with exceptions and locate them accurately
- 256-level intensity grading display, with digital real-time fluorescence technology
- 10.1" 1280 x 800 pixels high-definition touch screen
- Brand new Flex knob brings friendly user experience

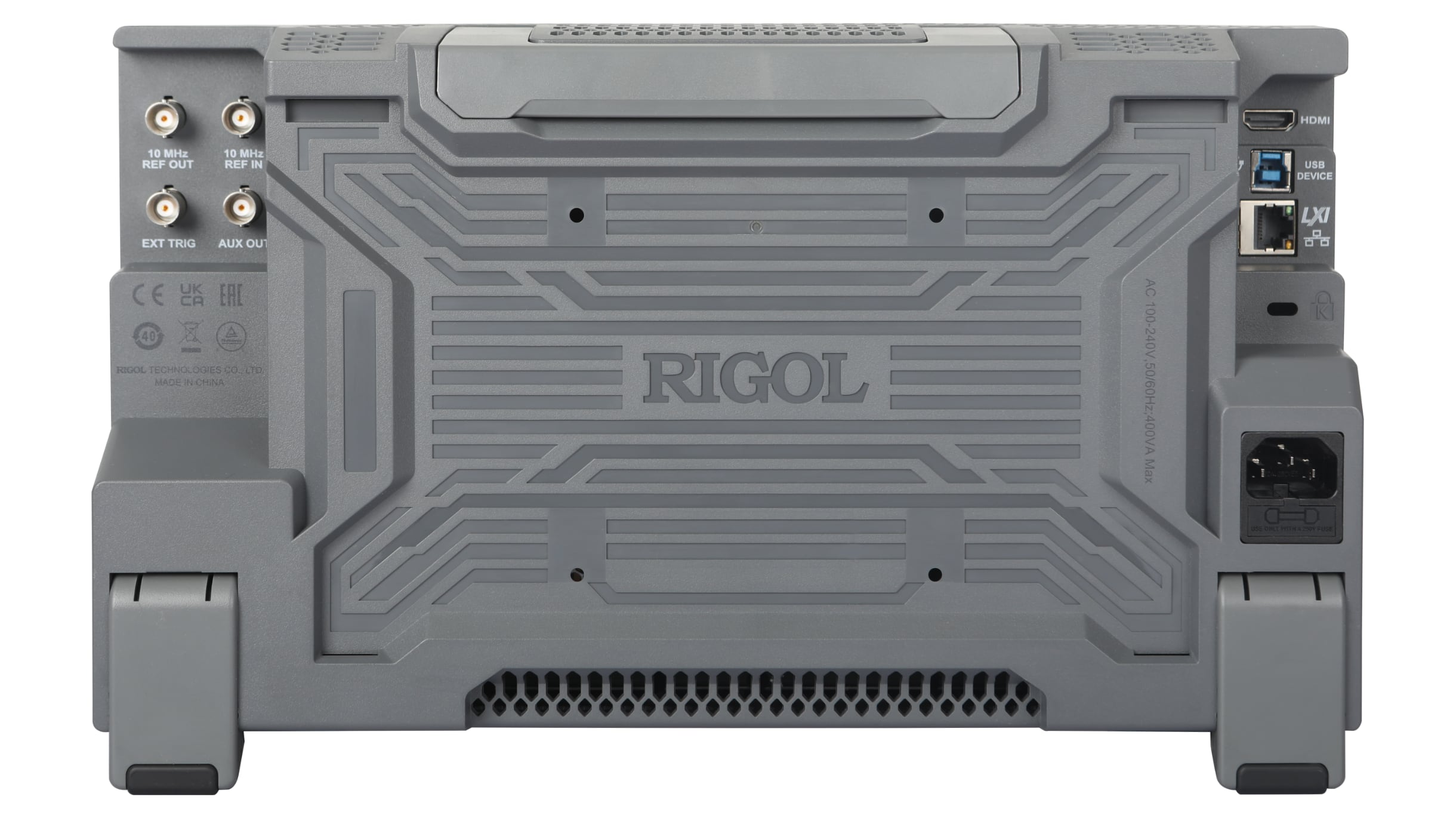

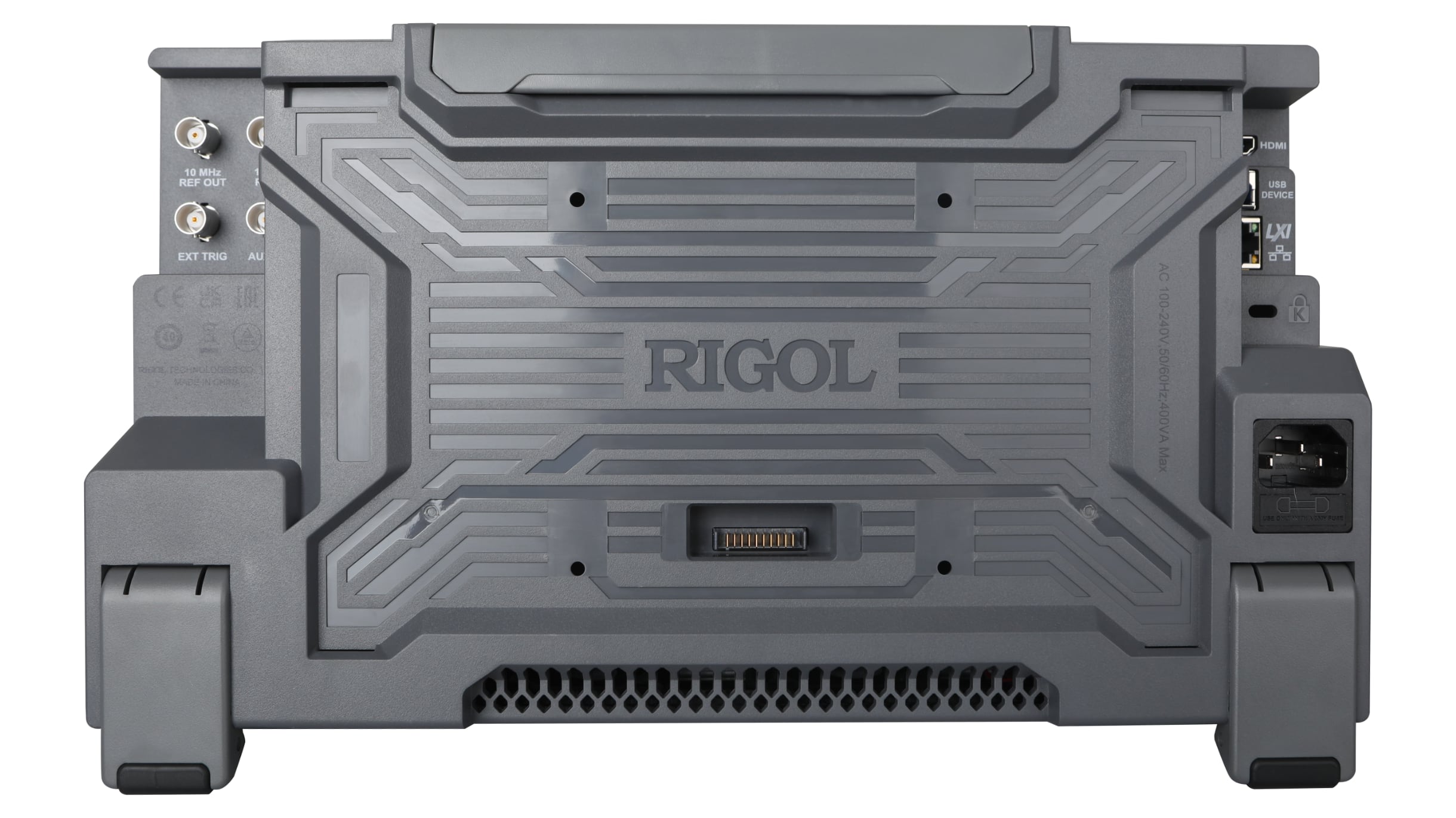

- Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series
- Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility for measurement (available in the future)
- Online upgrade
- Standard configuration of the photoelectric encoder operating knob for all the series to improve the service life of the instrument
| Model |
DHO5058 |
DHO5054 |

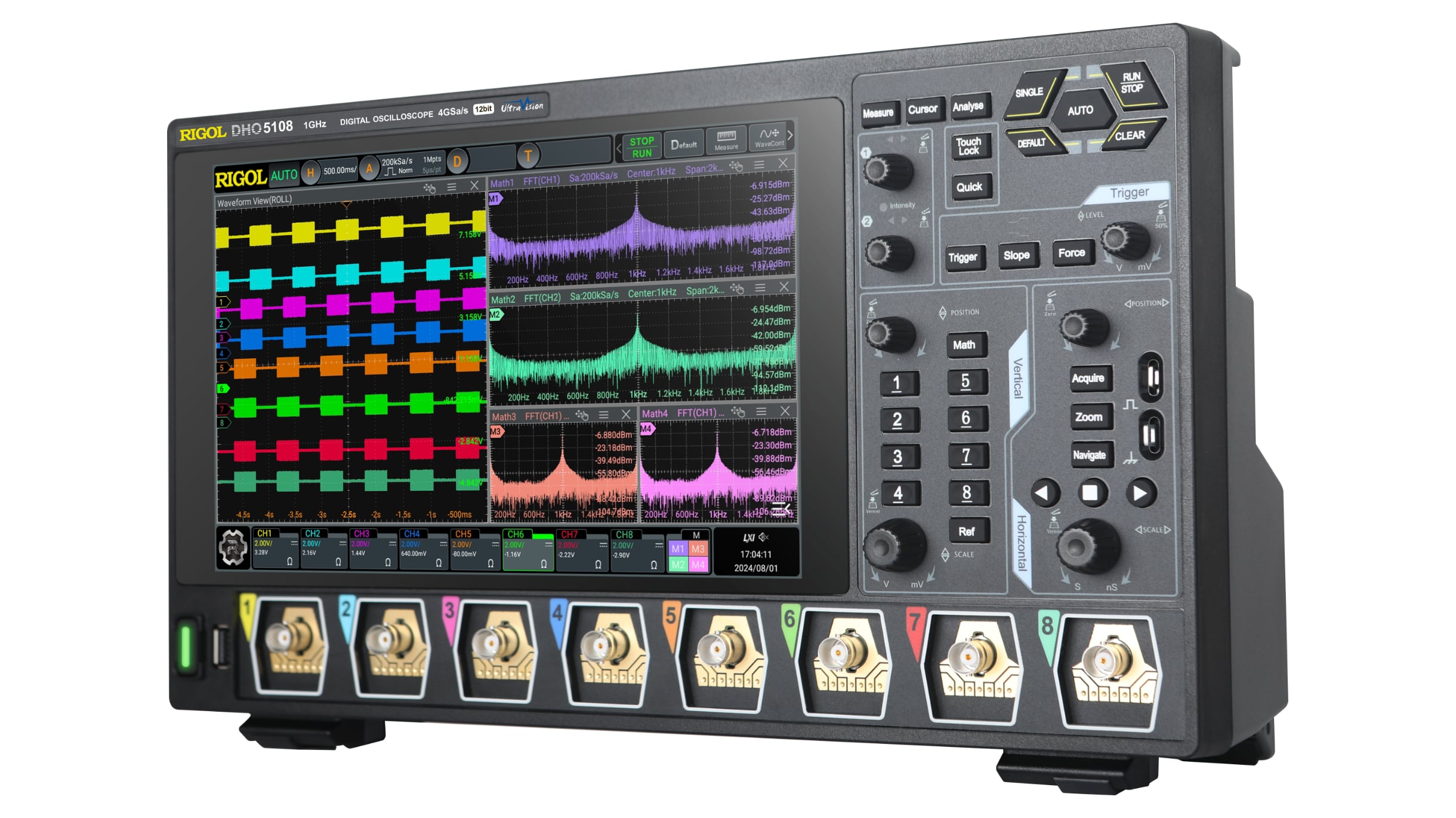

DHO5108 |

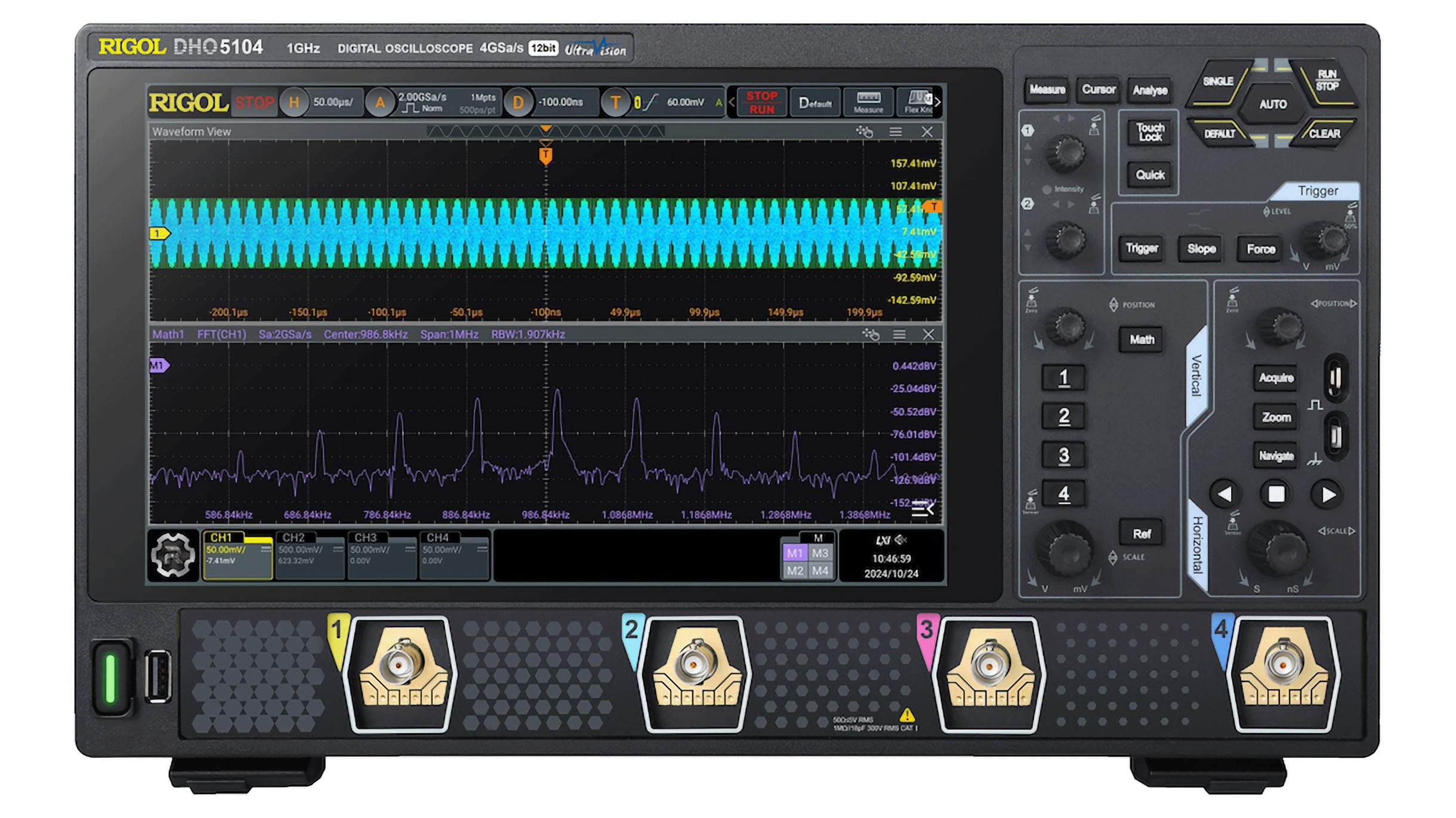

DHO5104 |

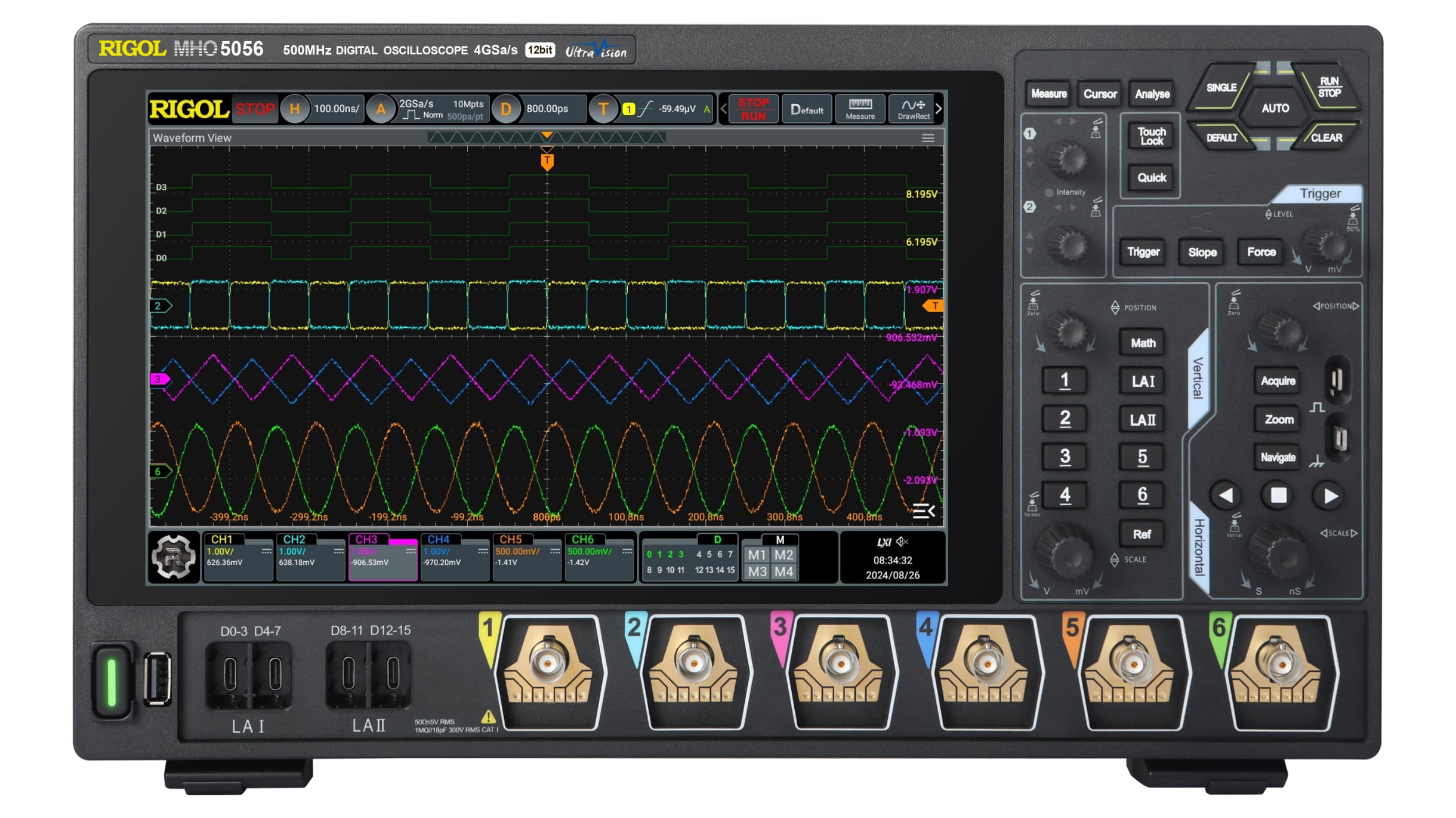

MHO5056 |
MHO5054 |

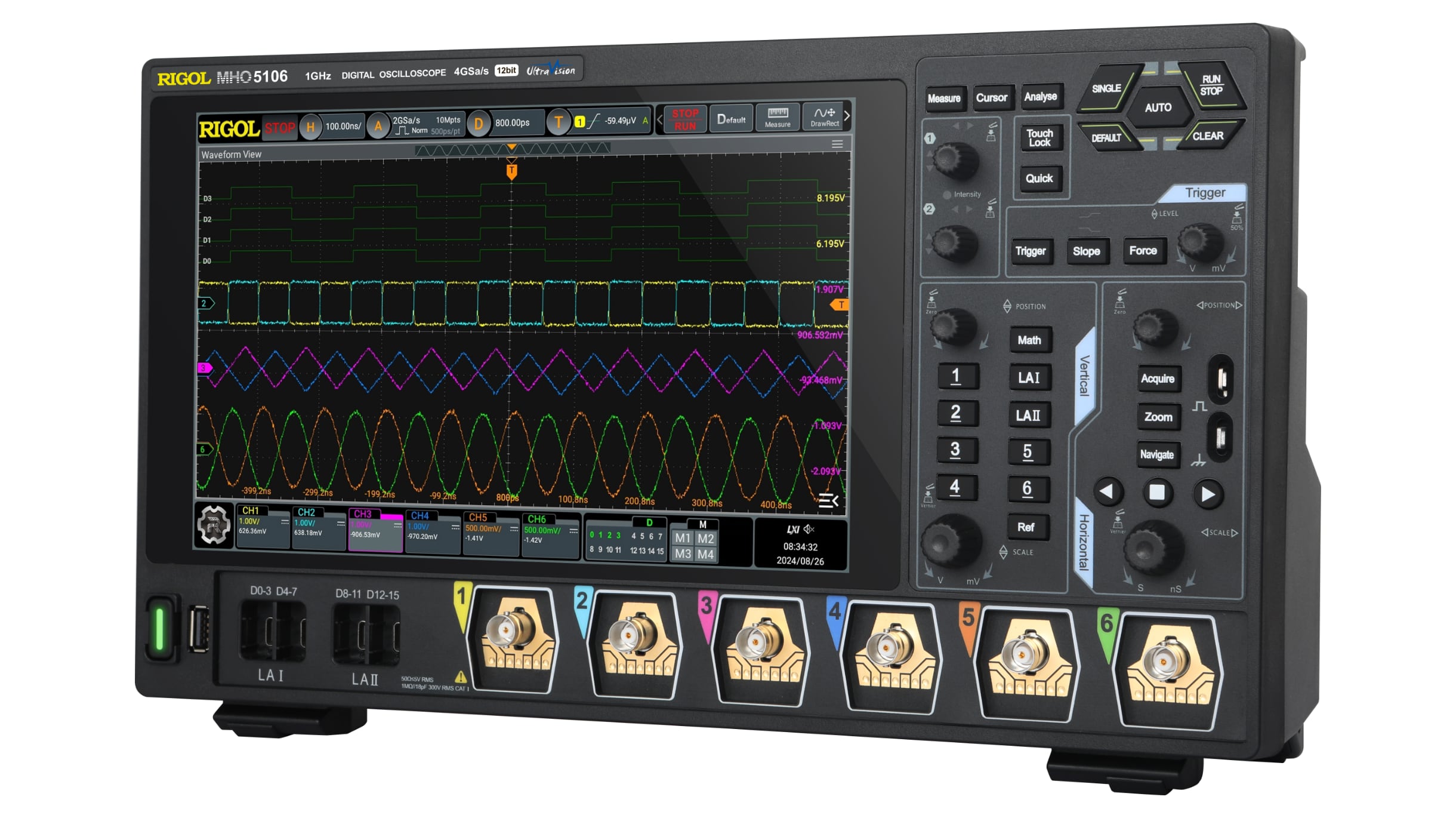

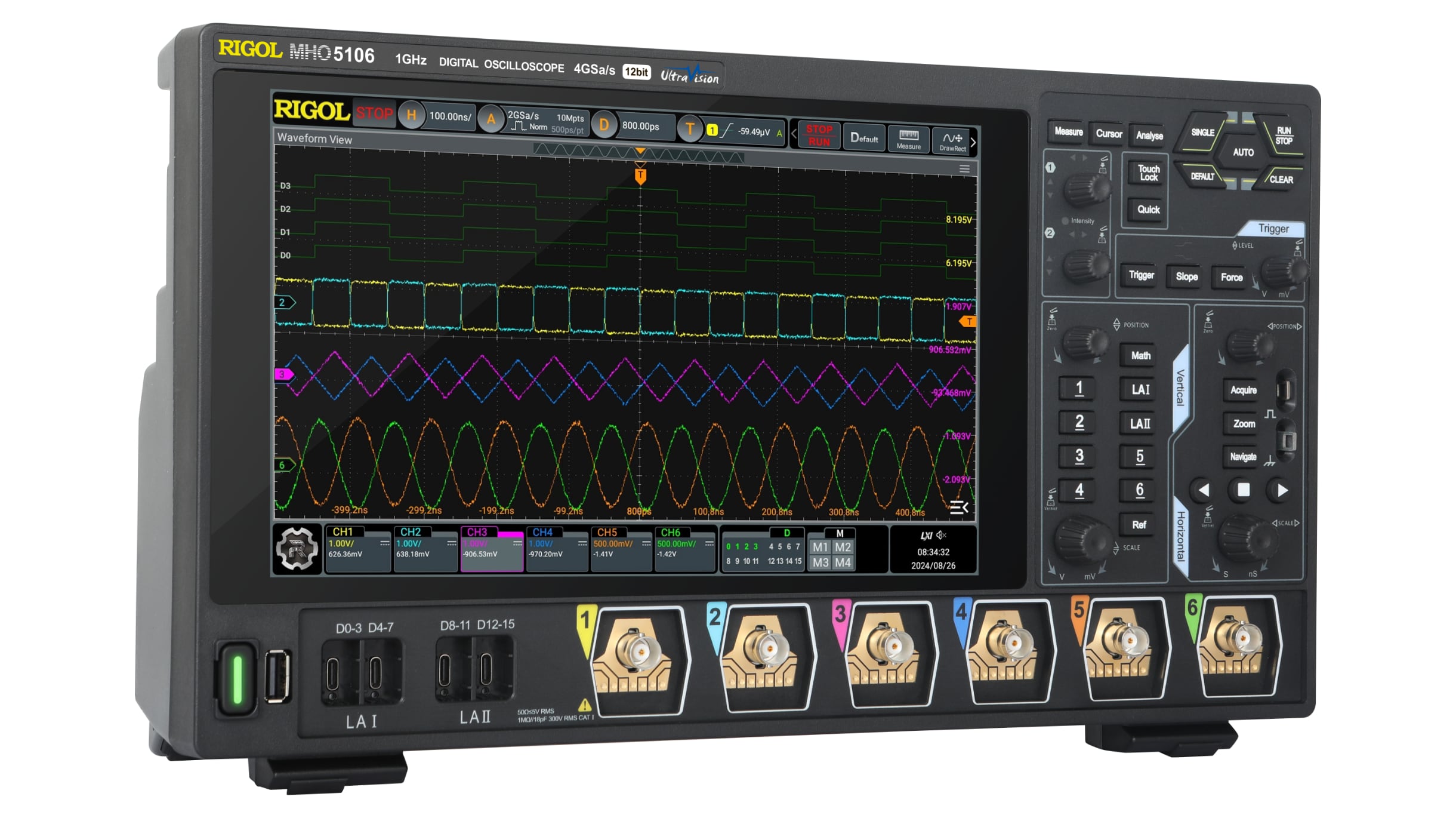

MHO5106 |

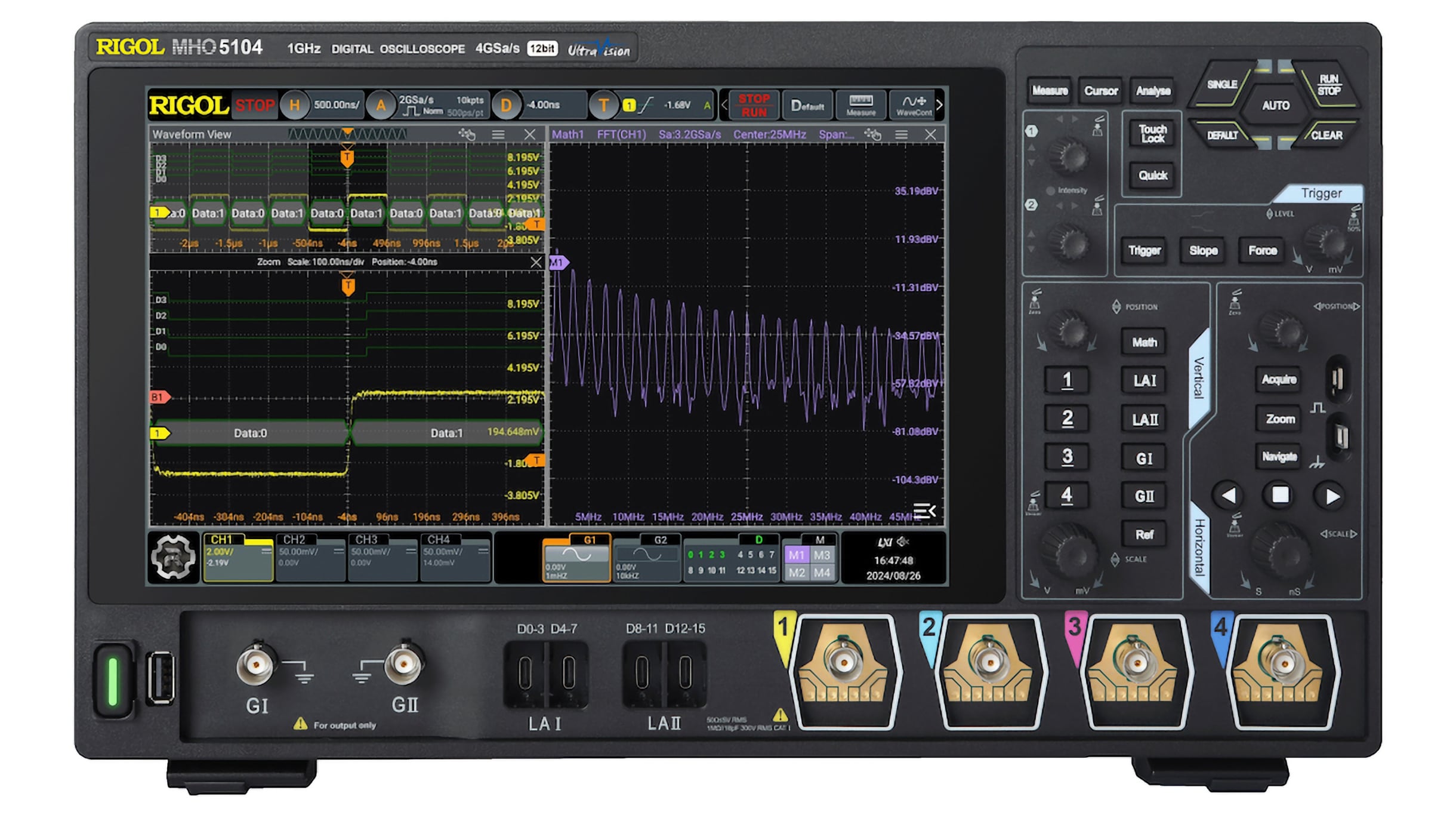

MHO5104 |
| Bandwidth |
500 MHz |
500 MHz |
1 GHz |
1 GHz |
500 MHz |
500 MHz |
1 GHz |
1 GHz |
| Channels |
8 analog channels + 1 EXT channel |
4 analog channels + 1 EXT channel |
8 analog channels + 1 EXT channel |
4 analog channels + 1 EXT channel |
6 analog channels + 16 digital channels + 1 EXT channel |
4 analog channels + 16 digital channels + 1 EXT channel |
6 analog channels + 16 digital channels + 1 EXT channel |
4 analog channels + 16 digital channels + 1 EXT channel |
| Sample rate |
4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) |
4 GSa/s |
4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) |
4 GSa/s |
4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) |
| Rise time |
≤750 ps |
≤350 ps (single-channel & half-channel), ≤440 ps (full-channel) |
≤750 ps |
≤350 ps (single-channel & half-channel), ≤440 ps (full-channel) |
| Memory Depth |
500 Mpts (single-channel & half-channel), 250 Mpts (full-channel) |
| Sampling Mode |
Real-time Sampling |
| Maximum Sample Rate of Analog Channel |
4 GSa/s (single-channel &half-channel), 2 GSa/s (full-channel) |
| Maximum Waveform Capture Rate |
200,000 wfms/s (in Vector mode)
1,000,000 wfms/s (in Record mode) |
| Maximum Frames of Waveform Recording |
Maximum 500,000 frames |
| Peak Detection |
Captures 500 ps glitches |
| LCD Size and Type |
10.1" capacitive multi-touch screen |
| Display Resolution |
1280 x 800 pixels |
