SIGLENT SHN900A Series Vector Network Analyzer (VNA) Introduction

Posted by Batter Fly 21/05/2024 0 Comment(s) 2088 Test y Medida,

CHECK ALL MODELS OF THE SHN900A SERIES

SIGLENT SHN900A series of Vector Network Analyzers have a frequency range of 30 kHz to 26.5 GHz, which support 2-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SHN900A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SHN900A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

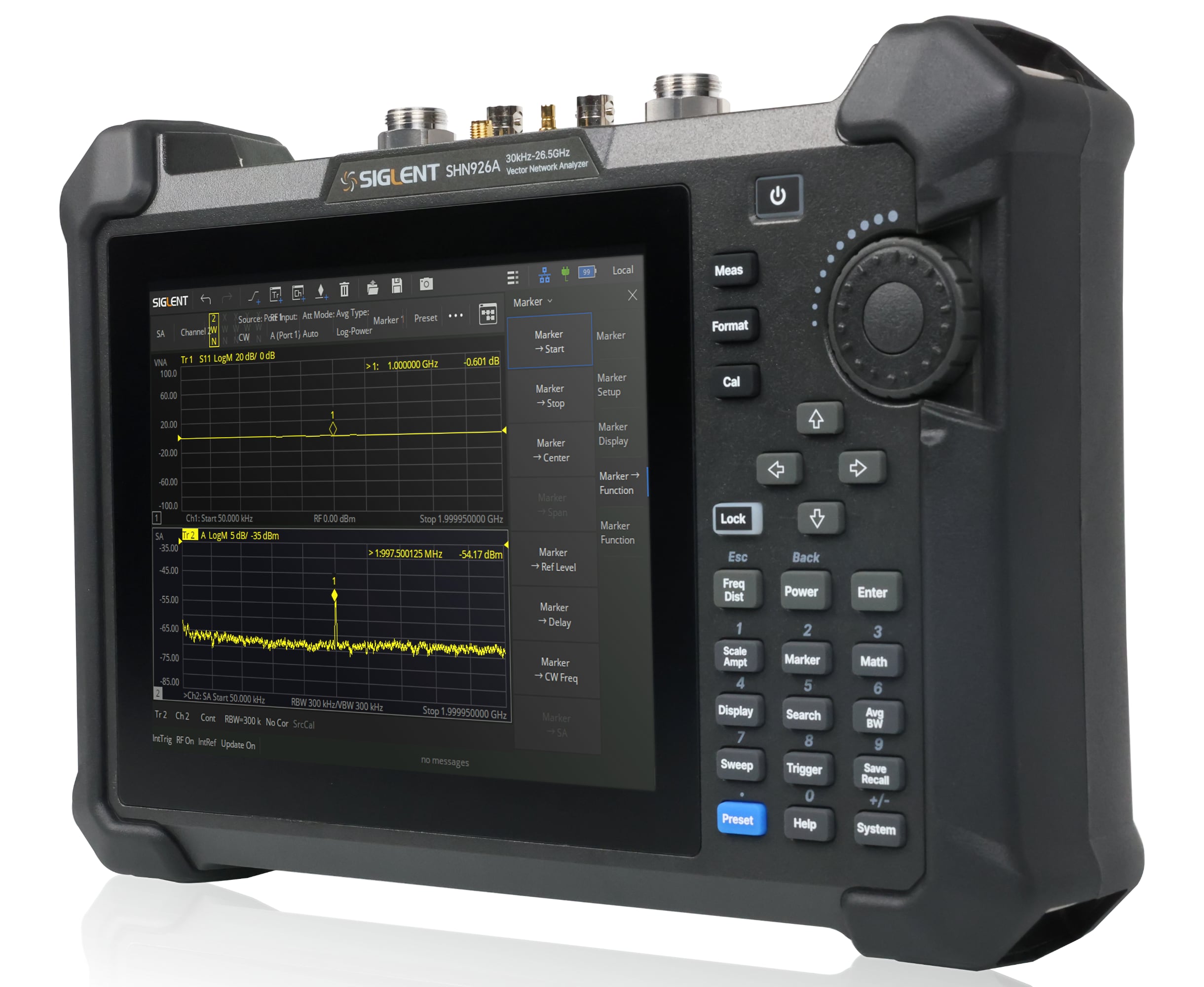

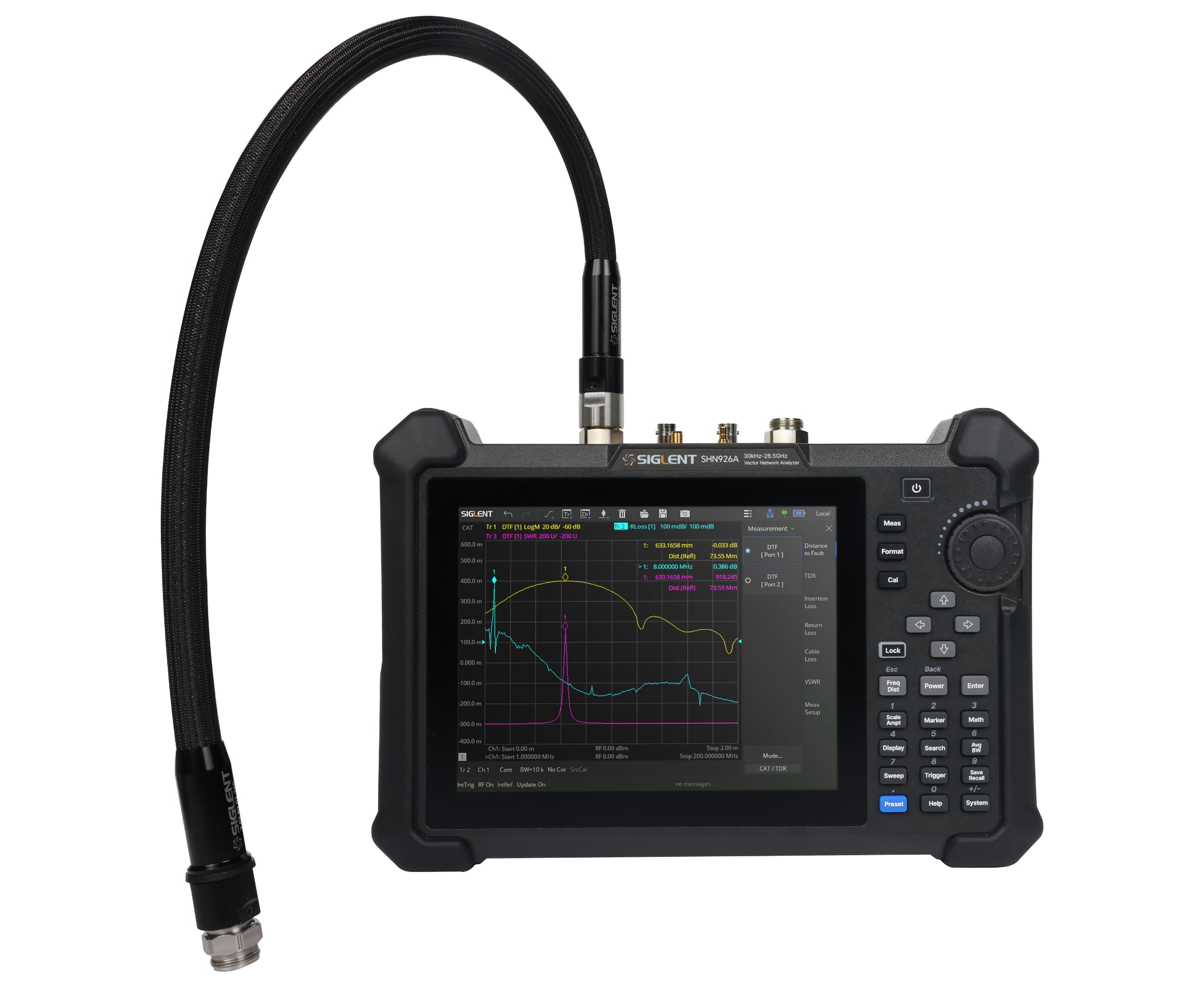

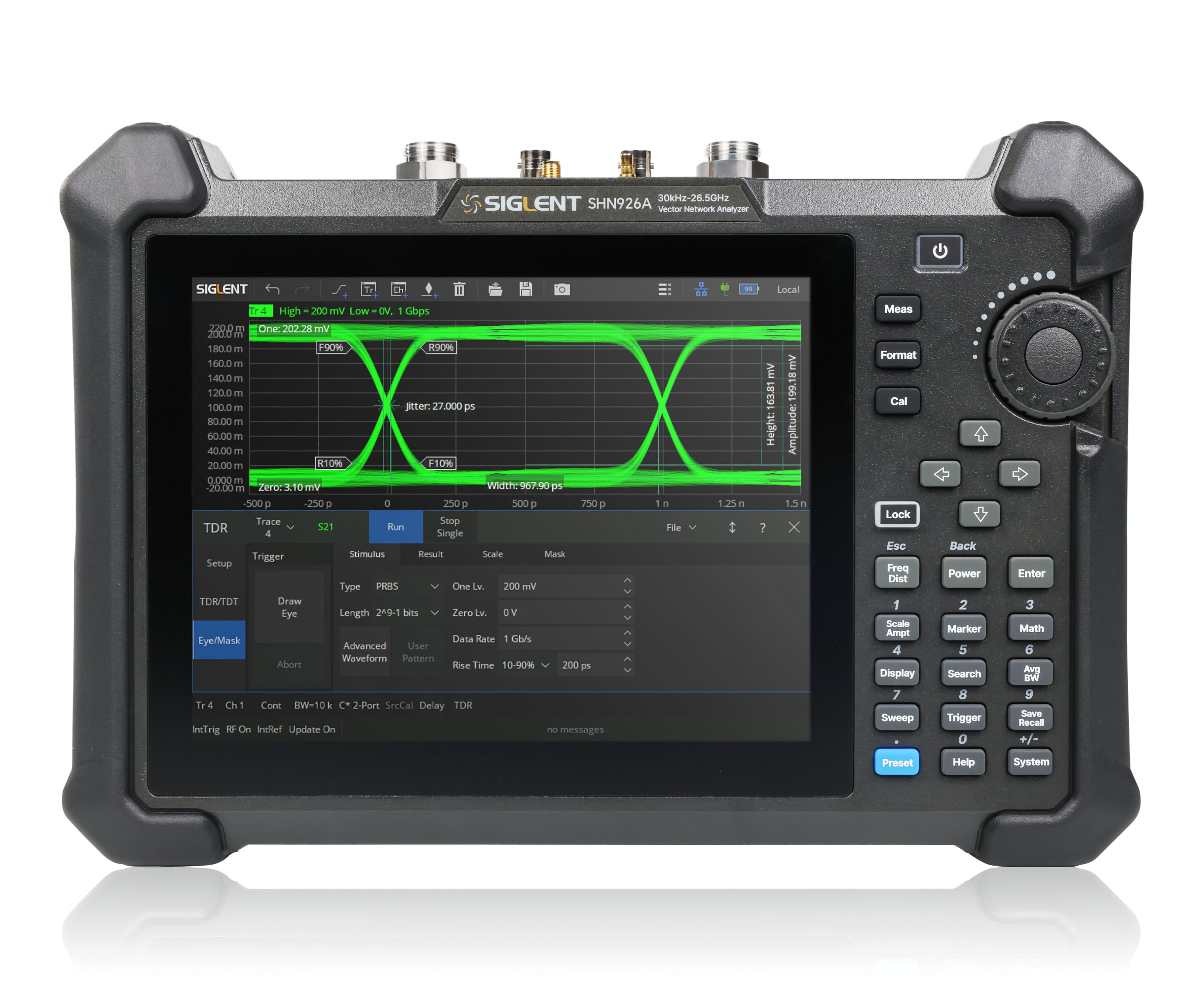

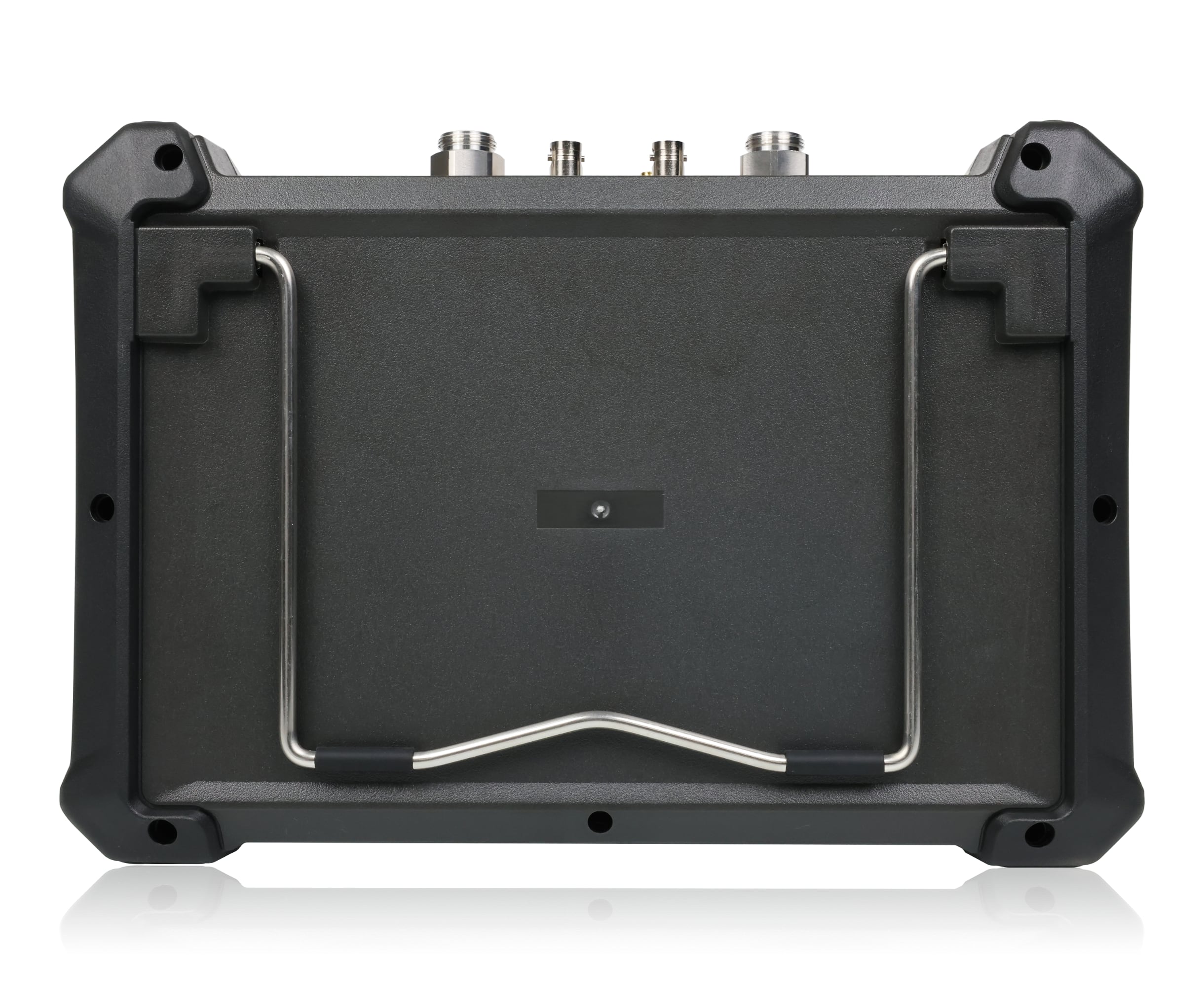

SIGLENT SHN900A Series Vector Network Analyzer

❮ ❯

CONTACT ME FOR A DEMO

Key Features:

Frequency range: 30 kHz - 26.5 GHz
Frequency resolution: 1 Hz
Level resolution: 0.01 dB
Range of IFBW: 10 Hz ~ 3 MHz
Setting range of output level: -45 dBm ~ +10 dBm
Dynamic range: 110 dB (Typical)

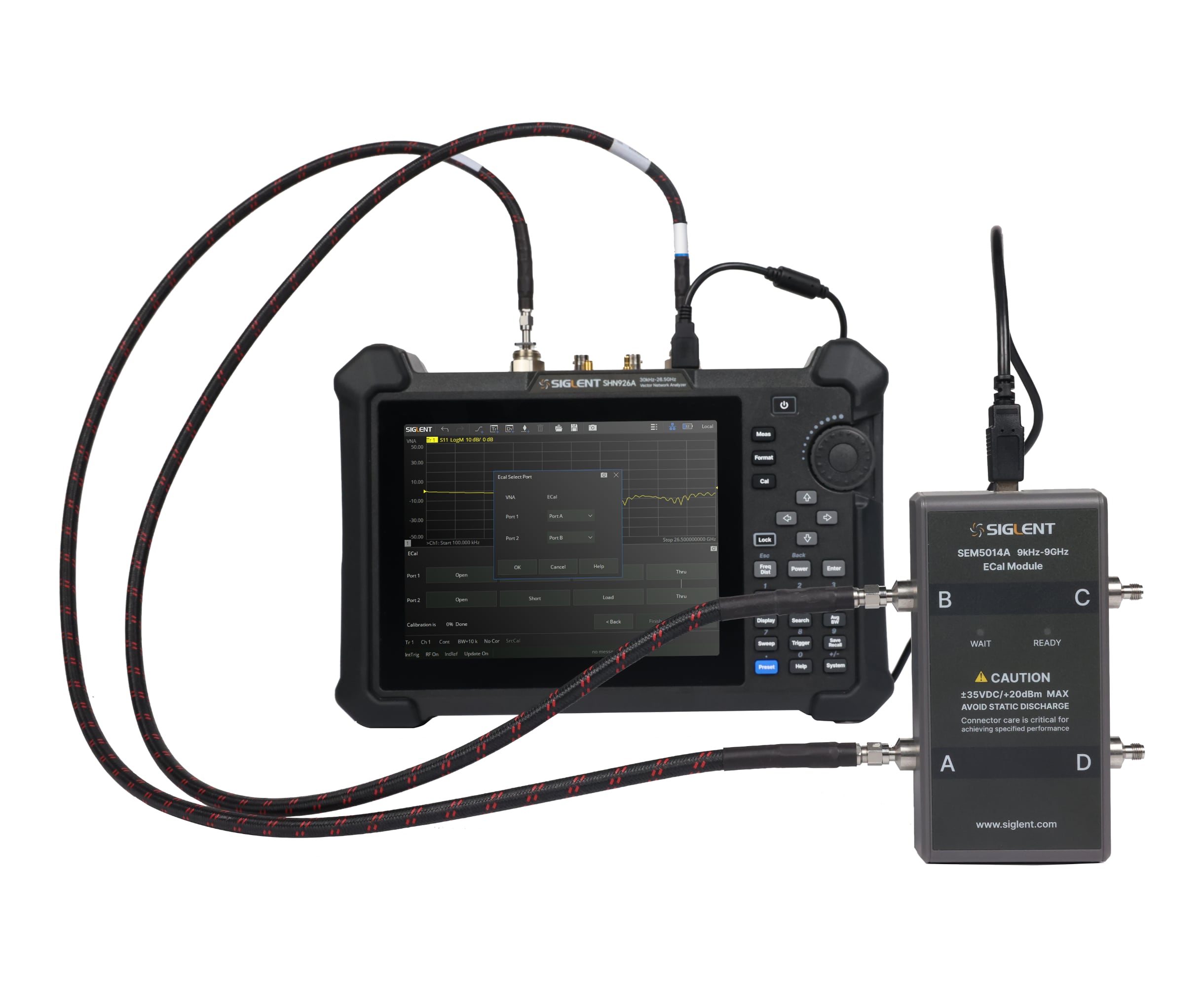

Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement

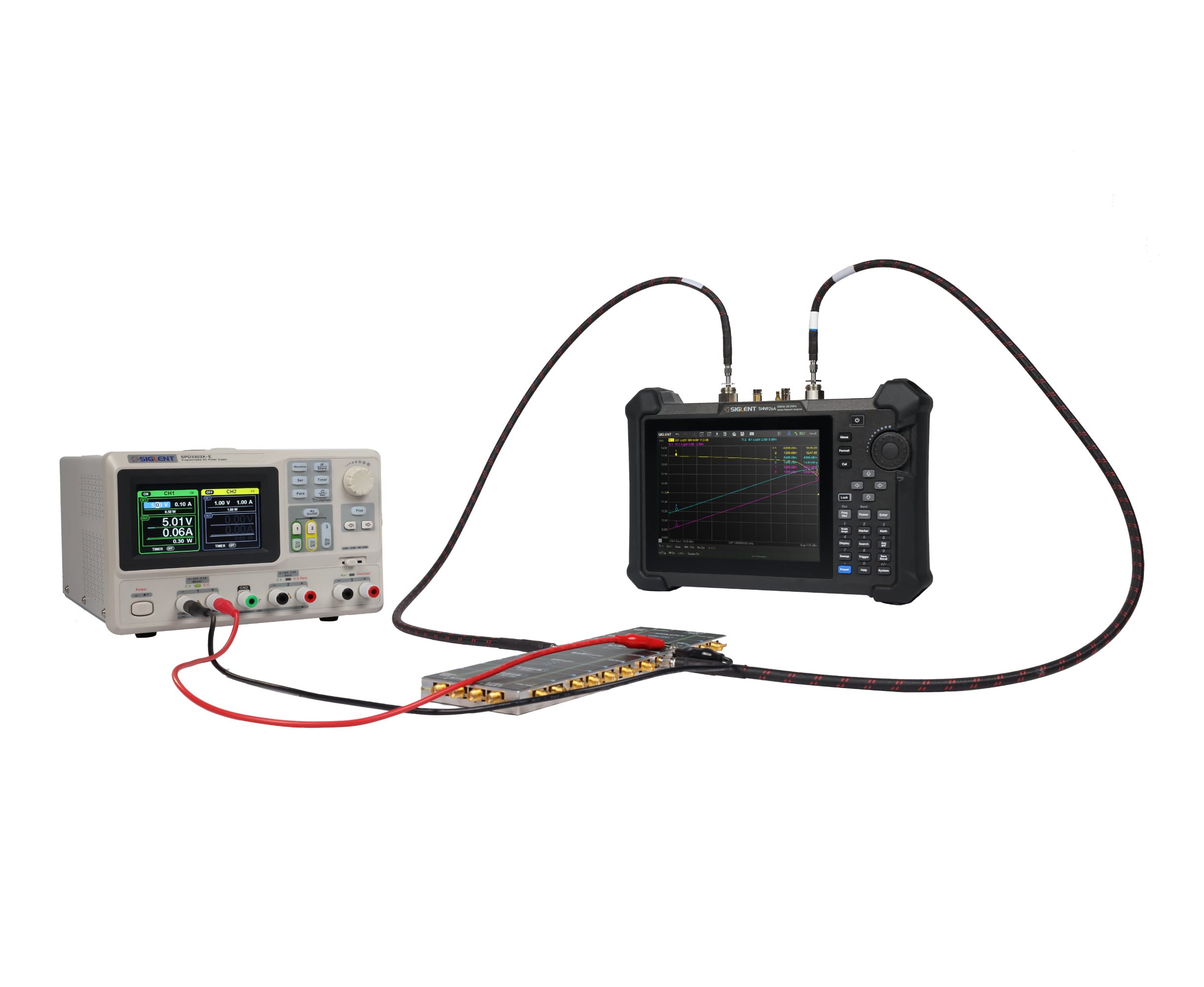

Internal Bias-Tee connections
Support GPS, Time and Location Information Saving
Interface: LAN, USB Device, USB Host (USB-GPIB)
Remote control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
8.4" touch screen, Mouse, Keyboard

Model	SHN914A	SHN920A	SHN926A
Frequency range	30 kHz - 14 GHz	30 kHz - 20 GHz	30 kHz - 26.5 GHz
Ports	2
Frequency resolution	1 Hz
Level resolution	0.01 dB
Range of IFBW	10 Hz~3 MHz
Setting range of output level	-45 dBm ~ +10 dBm
Dynamic range	110 dB (Typical)
Types of calibration	Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Types of measurement	Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement
Bias-Tees	Support
Interface	LAN, USB Device, USB Host (USB-GPIB)
Remote control	SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
Display	8.4-inch touch screen
GPS	Support
