Desco Europe 222642 SURFACE RESISTANCE METER KIT
- NEW Enclosure with Rubber Grip Edges
Thinner and narrower design is easier to hold and provides protection from drops.
- NEW Quick Check Button
Enable this switch to perform quick resistance measurements without the 15-second period for temperature and humidity measurements.
- NEW Battery Compartment
Easy-to-access compartment without the need for tooling or probes.
- Digital Compliance Verification Surface Resistance Meter Kit*
Measures resistance point-to-point(Rtt) or surface to ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents.
- Resistance Range: Greater Than 1.0 x 103 ohms to Less Than 1.0 x 1012 (+/-10% Accuracy)
Determines if a surface is dissipative, conductive, or insulative for ESD control applications in electronics manufacturing or handling environments.
- Under Load Test Voltages (10V or 100V ±5%)
Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification.
- Selectable Test Voltage
Switches to appropriate test voltage (10V for tests <1 x 106 or 100V for tests >1 x 106) in AUTO mode or may be fixed to at 10V in HOLD mode.
- Ohm Values are Expressed with a Digital Mantissa and LED Exponent
Provides an easy to read and accurate measurement.
- Pre-set 15 Second Electrification Period in Full Test Mode
Meets the requirements of the ANSI/ESD S4.1 testing requirements.
- Temperature (Fahrenheit and Celsius) and Relative Humidity Measurements
Measures temperature and relative humidity (during 15 second electrification period) as required by ANSI/ESD S20.20.
- NIST Calibrated with Certificate
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Vermason products, see Calibration.
- Prior item number: 222630
- Made in the United States of America
- Request a Demo HERE

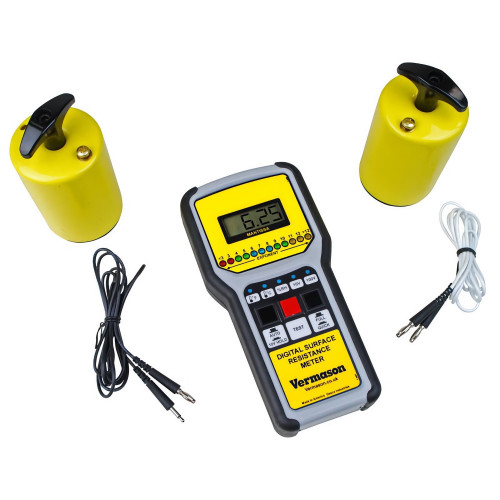

*222642 Digital Surface Resistance Meter Kit
1 Digital Surface Resistance Meter
2 Shielded Test Leads, 1.5m Length
2 Five Pound Electrodes
2 AA Alkaline Batteries
1 Gator Clip
1 Plastic Carrying Case
1 Certificate of Calibration
For Digital Surface Resistance Meter only see 222643
Closeout items are subject to a 90-day warranty for materials and workmanship. No credit will be issued. Desco Europe to approve exchange for similar items.
