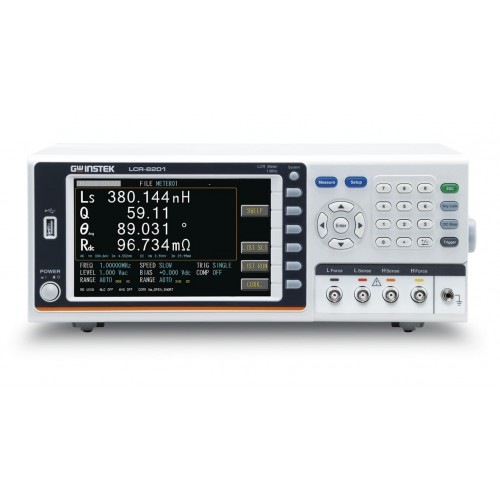

GW Instek LCR-8201 LCR Meter up to 1MHz
GW Instek LCR-8201 DC, 10Hz ~ 1MHz High-Frequency LCR Meter
Features:
- Wide Test Frequency: DC, 10Hz ~ 30MHz/20MHz/10MHz/5MHz/1MHz
- 7” LCD color Display
- 0.08% Basic Accuracy
- Displaying Four Measurement results simultaneously from 17 selectable measurement parameters freely
- 15 steps List Measurement
- Two Curves Sweep Mode
- Internal DC Bias Voltage ±12V
- USB Storage available
- ALC function available
- Standard Interfaces : RS-232C, USB host/device, LAN, GPIB and Handler
- Universal power input
GW Instek launches a new series of high-frequency LCR meter ~ LCR-8200, which has five models and the maximum test frequency is up to 30MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%). The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT. At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs. Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200 can help users easily respond to the test requirements of passive components in R&D, engineering, and production.
Included Accessories
Safety Sheet x1, CD x1 (User manual), Power cord x1, LCR-06B x1
Option
LCR-DB1 DC Bias box (Freq. upto 2MHz / max. input voltage +/- 200V)
Optional Accessories
| Accessory Model | Brief Description | |||||
| LCR-05A | Test Fixture for axial & radial leaded components (up to 30MHz) |
V
|
V
|
V
|
V
|
V
|
| LCR-06B | Test Lead with Kelvin clip (4 wire type) |
△
|
△
|
△
|
△
|
V
|
| LCR-07 | Test Lead with Alligator clip (2 wire type) |
△
|
△
|
△
|
△
|
V
|
| LCR-08 | Test Fixture (Tweezers) for SMD/Chip components |
△
|
△
|
△
|
△
|
V
|
| LCR-10A | Test Fixture for Bottom Electrode components (up to 30MHz) |
V
|
V
|
V
|
V
|
V
|
| LCR-12 | Test Lead with Kelvin clip (4 wire type) |
△
|
△
|
V
|
V
|
V
|
| LCR-15A | Test Fixture for SMD/Chip components (up to 30MHz) |
V
|
V
|
V
|
V
|
V
|
| GTL-234 | RS-232C Cable |
V
|
V
|
V
|
V
|
V
|
| GTL-246 | USB Cable |
V
|
V
|
V
|
V
|
V
|
| GTL-248 | GPIB Cable |
V
|
V
|
V
|
V
|
V
|
