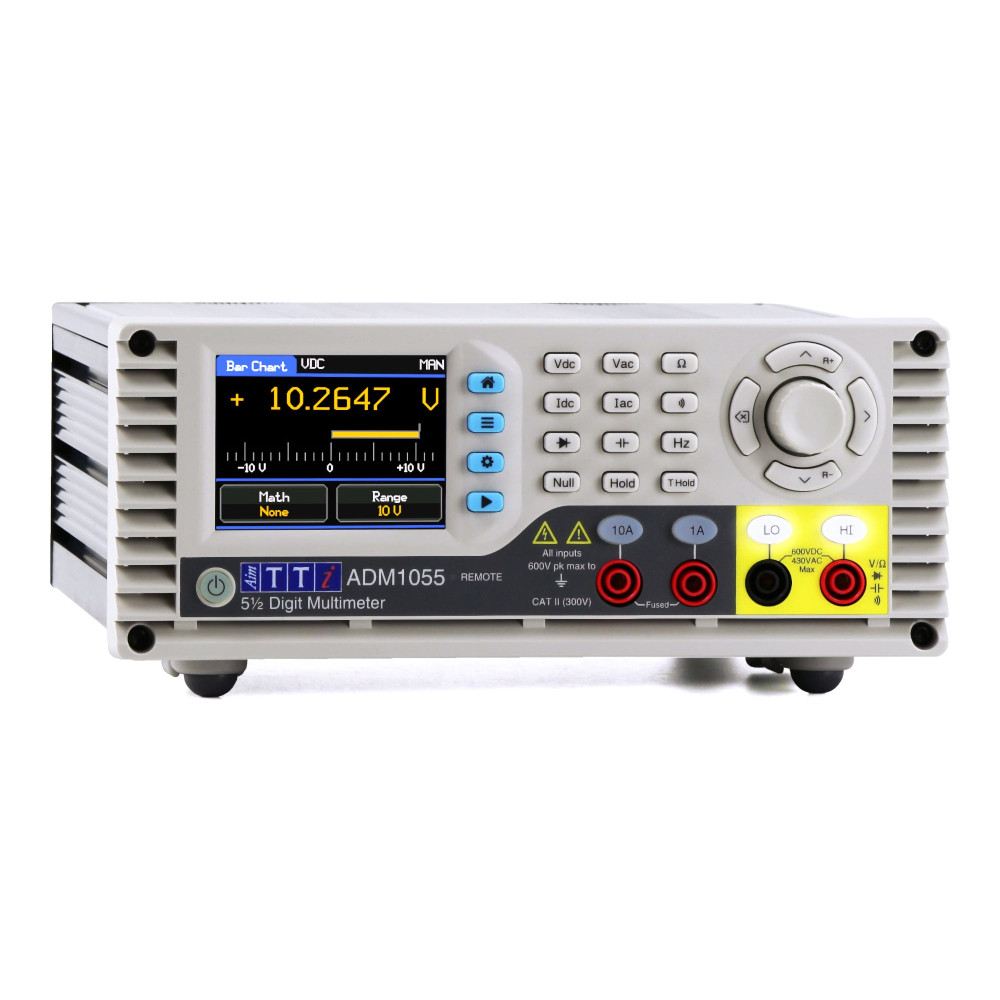

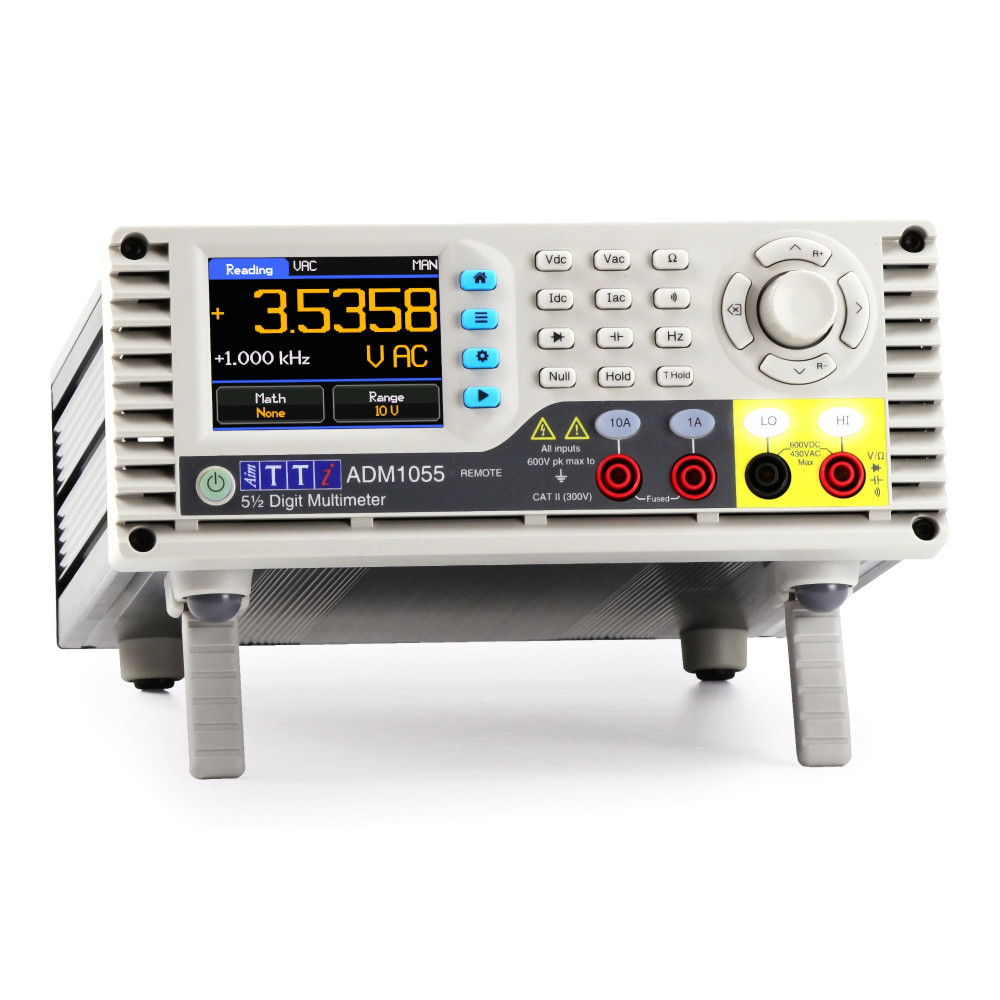

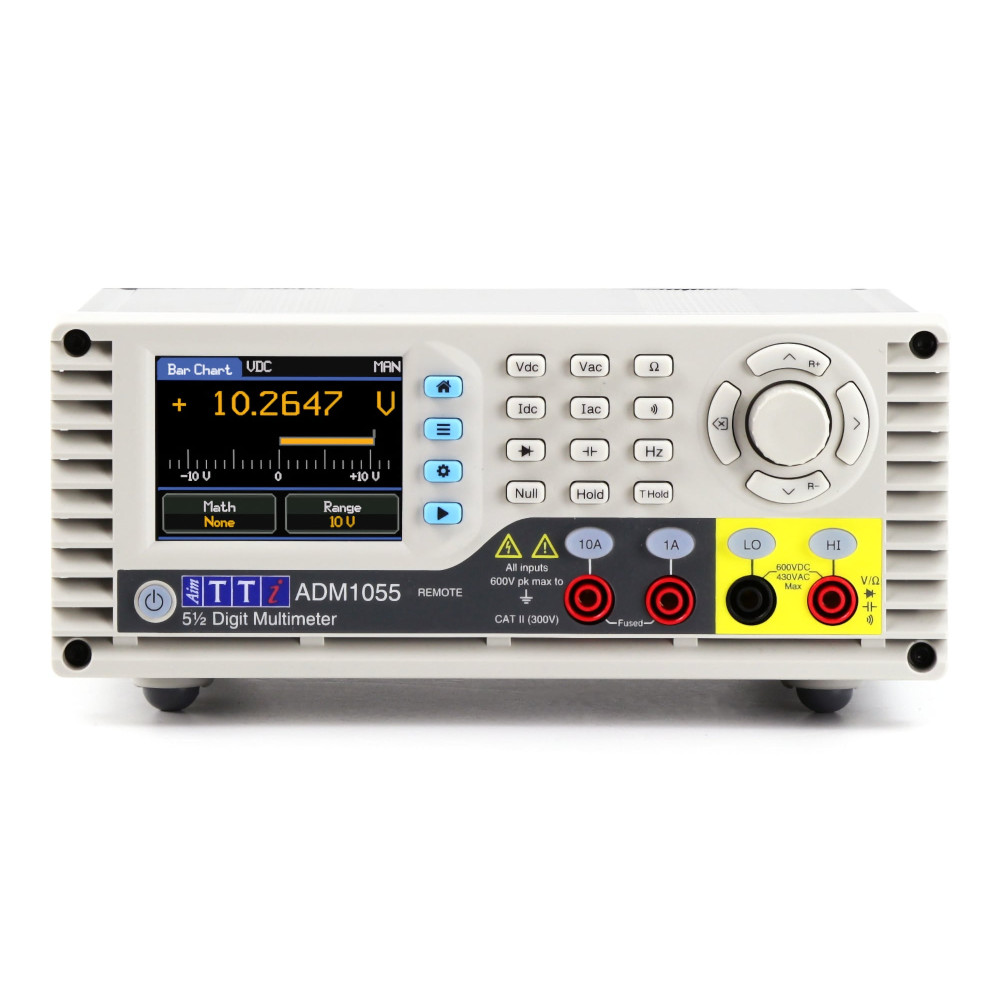

Aim-TTi ADM1055 5½ Digit High Performance Bench Multimeter
The Aim-TTi ADM1055 is the latest release from the new A Series line, developed to meet the rigorous demands of design, test, and education environments. This high-performance 5½ digit bench multimeter delivers exceptional measurement precision, featuring a 0.02% basic DC accuracy and ultra-fine resolutions down to 1µV, 1mΩ, 10nA, 0.01Hz, and 100pF.
Designed for intuitive operation, the ADM1055 features a touch-operated GUI and illuminated input terminals that guide users to the correct connections, preventing setup errors. Beyond standard numeric readouts, it offers advanced visual analysis tools, including real-time bar charts, histograms, and statistical displays. Its 9 measurement modes, covering frequency and capacitance, are backed by comprehensive math functions (limits, % deviation, V²/R power, etc.) and an innovative resettable current trip circuit (up to 48V) that eliminates the need for frequent fuse replacements.
Key Features:
- Precision: 5½ digit resolution with 0.02% basic DC accuracy.
- Versatility: 9 measurement modes (including frequency/capacitance) and advanced math functions.
- Interface: Customisable color touch screen with histogram, bar chart, and statistics displays.
- Safety: Illuminated terminal guidance and resettable current protection.
- Connectivity: USB remote interface (SCPI compatible) with free Test Bridge control software.

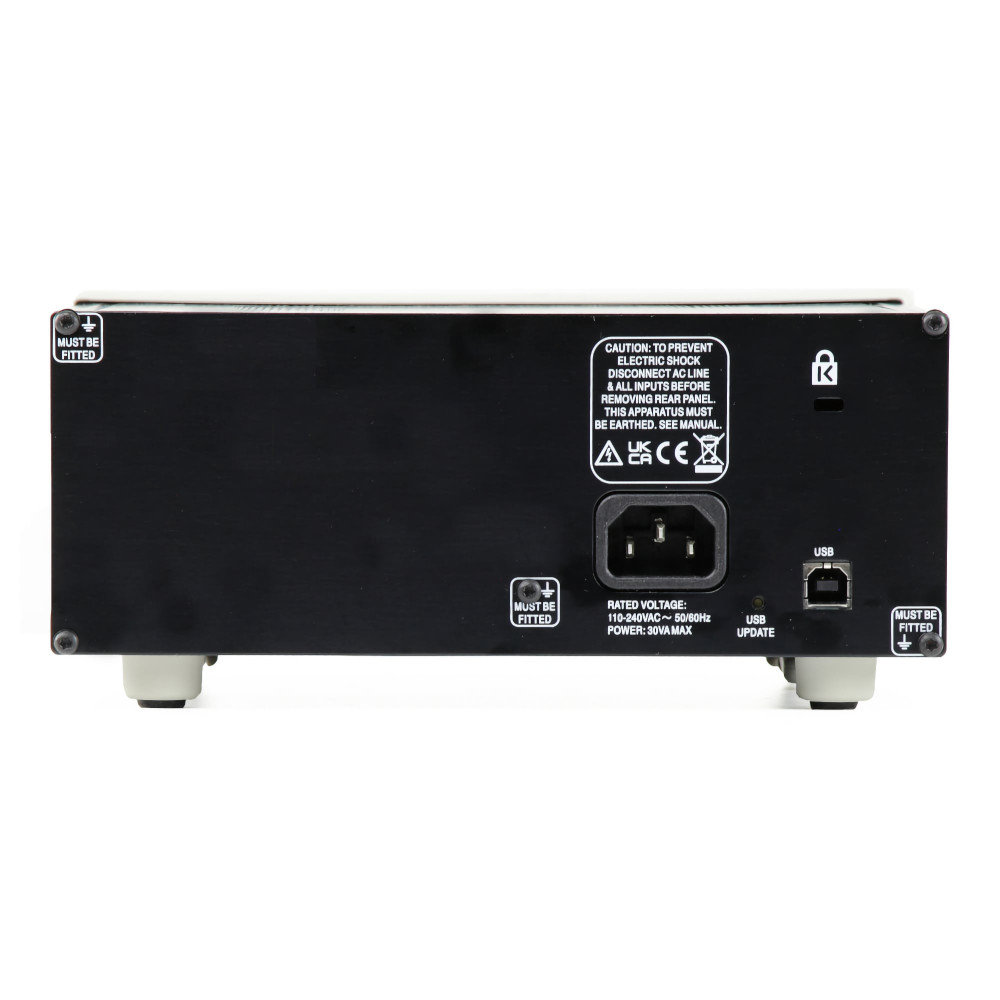

- Design: Premium, compact aluminum case (213 x 228 x 98 mm) with Kensington lock.
