PID Controller

Proportional Integral Derivative

Available on Moku:Delta, Moku:Pro, Moku:Lab and Moku:Go hardware

Key Features

Versatile inputs
Multiple independent PID controllers with a control matrix for optional multiple-input multiple-output (MIMO) applications.

Configurable gain profiles
Proportional (P), Integral (I), Derivative (D), double-integral (I+), integral saturation (IS), differential saturation (DS).

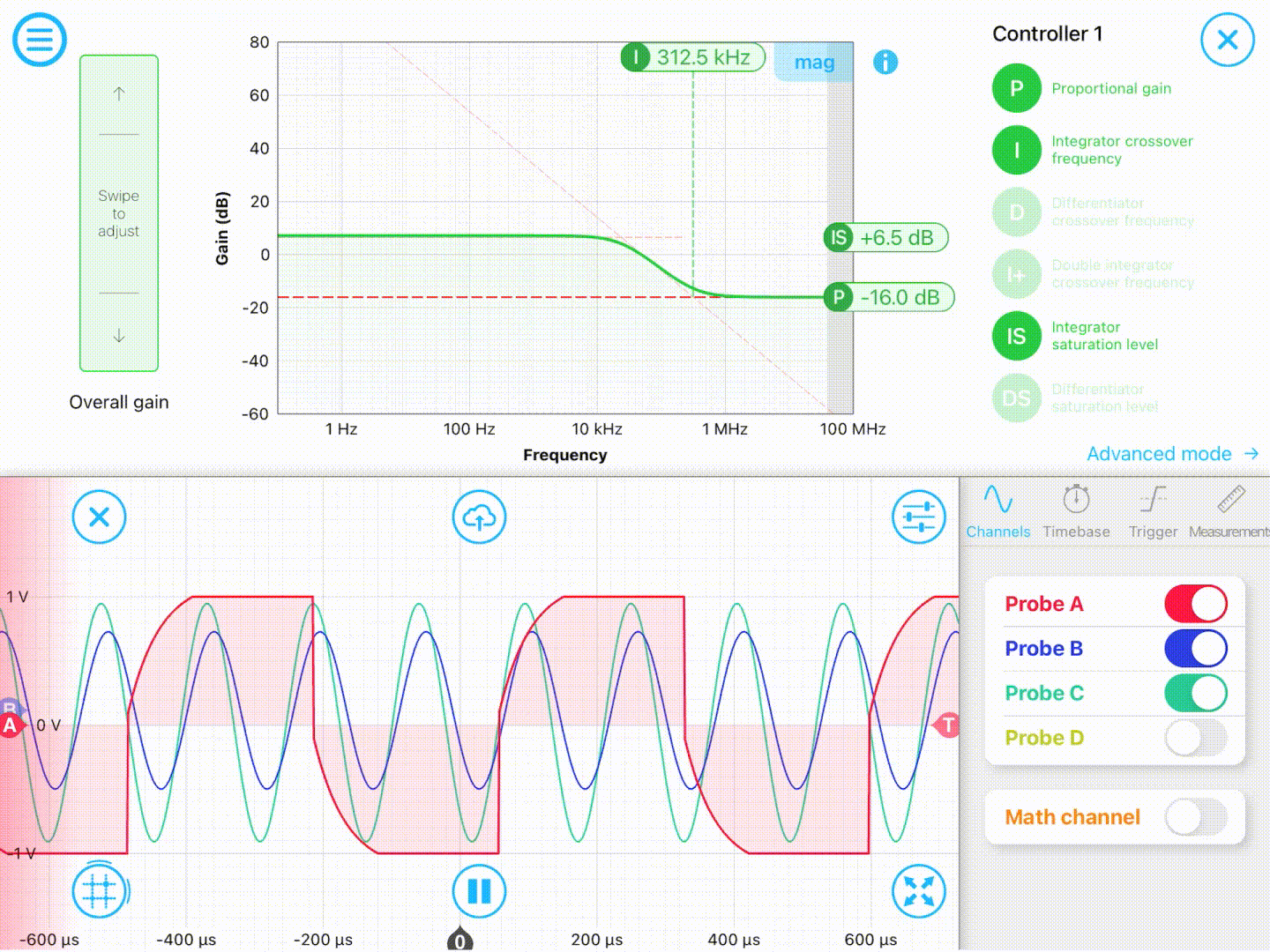

Interactive Bode plot
Design your control system’s frequency response in real-time.

Multi-section PID builder
This advanced mode features single or double integrators and differentiators with low- and high-frequency gain saturation.

Easy signal monitoring
The user interface features an intuitive block-diagram view of the signal processing chain with built-in probe points.

Applications
• Feedback and control systems design
• Laser frequency stabilization
• Temperature regulation
• Scan heads/sample stage positioning
• Pressure, force, flow rate, and other controls
