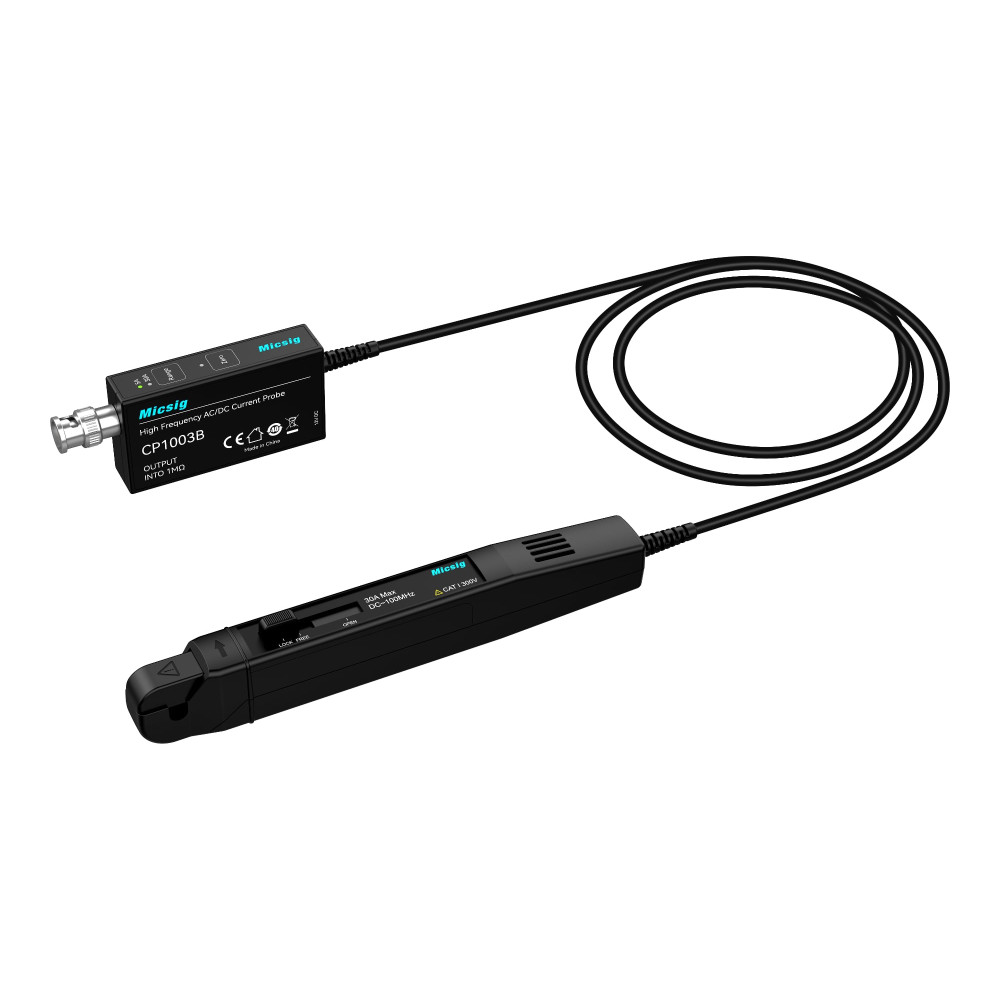

Micsig CP1003B High Frequency AC/DC Current Probe 100MHz, ≤3.5ns
Micsig CP1003B is a high frequency AC/DC current probe with 100 MHz bandwidth and ≤ 3.5ns rise time.
Key features:
- Bandwidth: DC ~ 100MHz
- Current Range: 5A / 30A
- DC Accuracy (Typical): ±1%
- BNC Interface

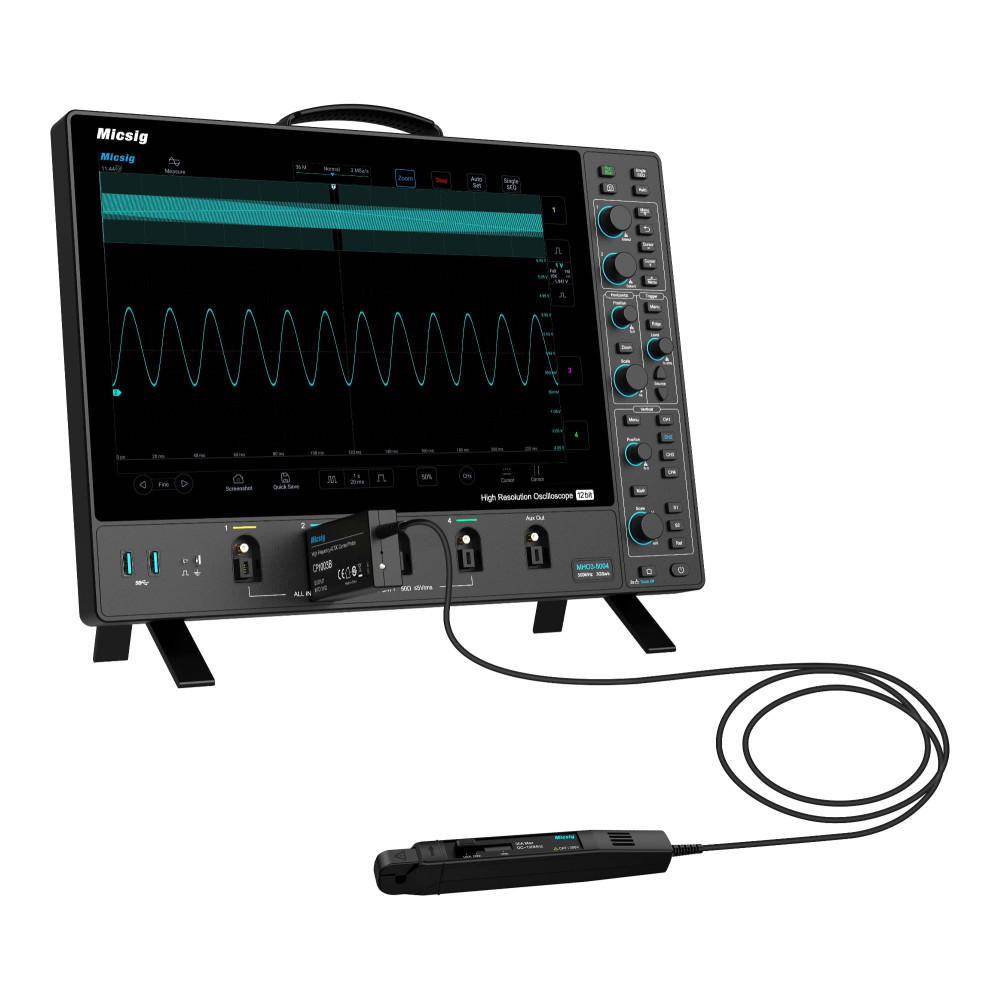

- Standard BNC interface to work on any oscilloscope
- Compact and Exquisite Design
- One-handed easy use, applicable to various complex tests

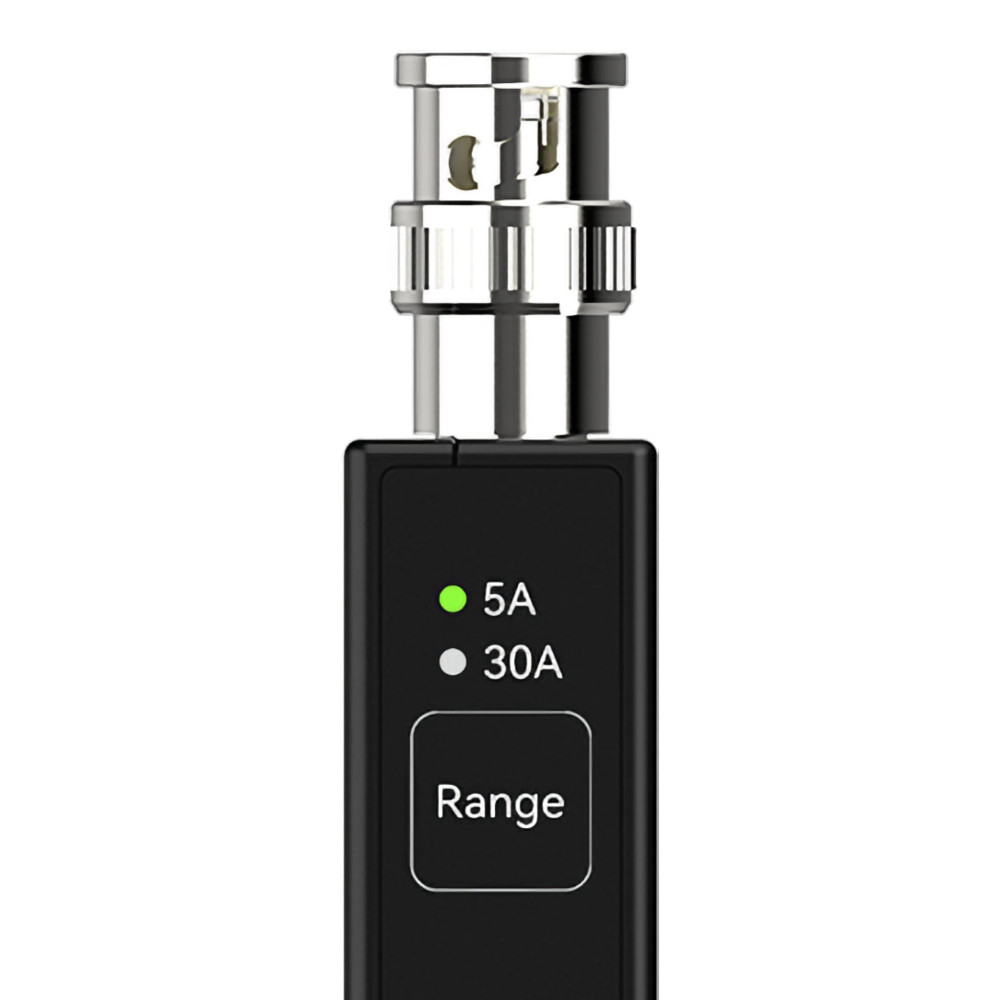

- Auto Degaussing and Zero

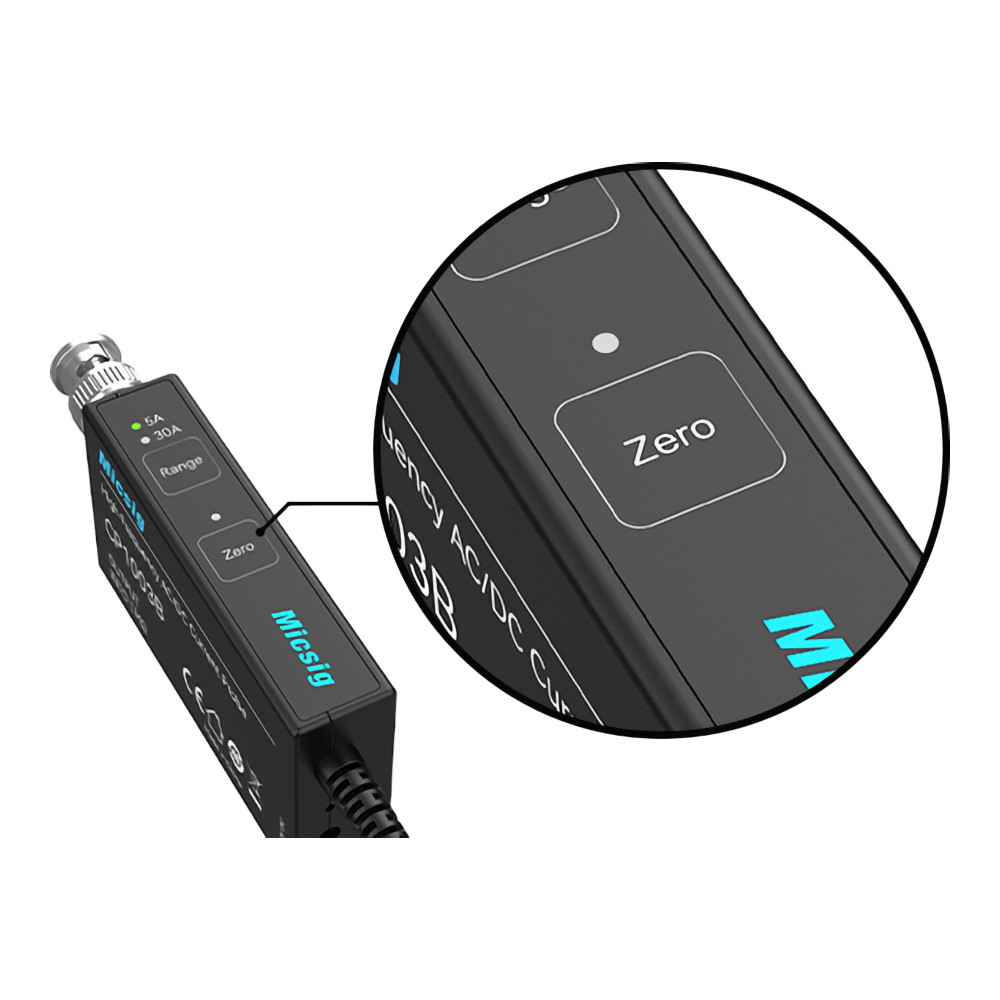

- Press "Zero", the probe will be degaussed and calibrated automtically at the same time
- Overload Indicator
- When the current is overloaded, corresponding range button will flash
- HF Current Signal Measurements
- Accurate measurement capability on high-frequency signals >20MHz (CH1 Yellow)
Same signal completely distorted when measured by low-frequency probe (CH2 Blue)
- Accurate measurement capability on high-frequency signals >20MHz (CH1 Yellow)
- Observe Surge Current
- Accurately capture the surge current waveform when the power adapter starts
Applications:
- Electric vehicle transportation design
- Switching power supply design
- Experiment of electronic engineering
- Semiconductor devices design
- Avionics design
- Inverter / Transformer design
- Electronic ballast design
- Industrial Control / Consumer Electronics design
- Engine driven design
- Power electronics and electric drive experimental design
| Model | CP503B | CP1003B |
| Bandwidth | DC - 50MHz | DC - 100MHz |
| Rise Time | ≤7ns | ≤3.5ns |
| Range | 5Arms (5A) 30Arms (30A) |
|
| Maximum Current Input | 50Apk, 100Apk-pk, 30Arms | |
| Accuracy (Max continuous current @ DC and 45-66Hz) |
±1% ±1mA (5A) ±1% ±10mA (30A) |
|
| Lowest Measurable Current | 1mA (5A) 10mA (30A) |
|
| Noise | <4mApp (5A) <30mApp (30A) |
|
| Delay | < 6.5ns (5A ) < 8.5ns (30A) |
|
| Output Sensitivity | 1V / 1A (5A, 1X ) 1V / 10A (30A, 10X) |
|
| Overcurrent Alarm Value | ≥ 5Apk (5A) ≥ 50ApK (30A) |
|
| Power Supply | 12V | |
| Maximum Working Voltage | CAT I 300V | |
| Maximum Floating Voltage | CAT I 300V | |
| Maximum Conductor Diameter | 5 mm | |
