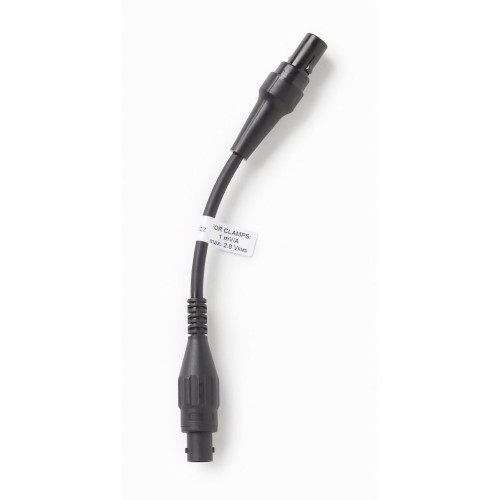

Fluke 17XX-CLAMP-ADPT-2V8 Adaptador BNC 17XX para pinzas de 2,8 V
Fluke 17XX-CLAMP-ADPT-2V8 Adaptador BNC a 17xx para la conexión de sondas de corriente con conectores BNC y salidas mV/A.
Features:
- BNC current adapter allows connection of AC or DC current clamps to 17XX models
- For use for current clamps with output maximum value of 2.8V AC/DC
- Allows connection to a wider range of current clamps (including measurement of DC current for 177X models)
- Provides the ability to use specialty current clamps
- CAT IV, 600V and CATIII 1,000V rating according to IEC61010-2-30
What's in the box:
1 x Adapter (1V max)
1 x Instruction sheet
Fluke 17XX-CLAMP-ADPT-2V8 is a BNC adapter designed to allow the connection of current clamps to Fluke’s 17XX series products. The adapter consists of a cable with the plug that fits the 17XX product and a female BNC connecter which allows connection to other current clamps with mV/A outputs. The 17XX-CLAMP-ADPT-2V8 is for use for current clamps with an output maximum value of 2.8V AC/DC. For current clamps with an output of 1V, please see part number 17XX-CLAMP-ADPT-1V.
Please see the following table for details of the supported clamps including ratio settings and the recommended adapter.
| Clamp | Sensitivity | Range | Adapter | Scale Factor | Range |
| i1000s AC | 100 mV/A 10 mV/A 1 mV/A |
0.1A to 10A 0.1A to 100A 1A to 1000A |
1V | 0.01:1 0.1:1 1:1 |
Auto |
| i3000s AC | 10 mV/A 1 mV/A 0.1 mV/A |
1A to 30A 1A to 300A 1A to 3000A |
1V | 0.1:1 1:1 10:1 |
Auto |
| i310s AC/DC* | 10 mV/A 1 mV/A |
30A 300A |
1V | 0.1:1 1:1 |
Auto |
| i400s AC | 10 mV/A 1 mV/A |
0.5A to 40A 5A to 400A |
1V | 0.1:1 1:1 |
Auto |
| 80i-110s AC/DC* | 100 mV/A 10 mV/A |
0.1A to 10A 0.1A to 100A |
1V | 0.01:1 0.1:1 |
Auto |
| 80i-2010s AC/DC* | 1 mV/A | 2000A | 2.8V | 1:1 | Low |
| i200s AC | 10 mV/A | Up to 200A+10% | 2.8V | 0.1:1 | Low |
| i30s AC/DC* | 100 mV/A | Up to 28A+10% DC | 2.8V | 0.01:1 | Low |
| i5s AC | 400 mV/A | 5A | 2.8V | 0.0025:1 | Low |
*DC is only supported by the 177X PQ Analyzers
