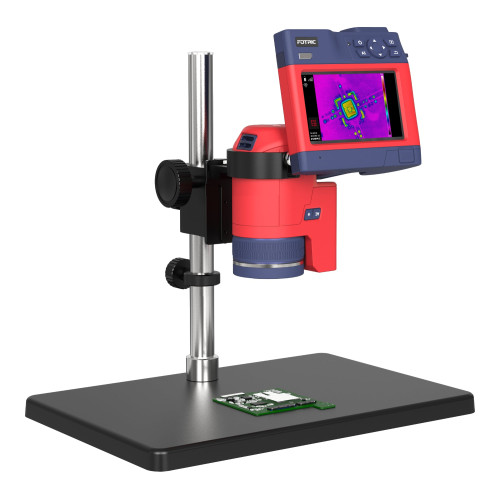

FOTRIC 228Pro Cámara térmica R&D 640×480 px, TurboFocus
FOTRIC 228Pro es una cámara térmica avanzada diseñada para la investigación y el desarrollo de alta precisión. Ofrece imágenes térmicas de alta resolución y herramientas profesionales de análisis, garantizando resultados fiables en laboratorios, industria y universidades. El sistema TurboFocus™ con enfoque automático láser, ópticas intercambiables y el software AnalyzIR proporcionan control total y máxima comodidad. Ideal para estudios de materiales, microelectrónica y experimentos científicos.
- Resolución IR: 640×480 px
- Sensibilidad térmica (NETD): 30mK a 30°C
- Campo de visión: 25°×19° (objetivo estándar), IFOV 0.68 mrad
- Ópticas opcionales: gran angular de 46°, macro de 20μm y 50μm
- TurboFocus™ continuo, enfoque láser asistido, contraste térmico, AF táctil, enfoque manual
- Rango de temperatura: -20~120°C; 0~650°C; rango inteligente
- Precisión: ±1°C o ±1% (el que sea mayor) a 25°C / 0-100°C, ±2°C o ±2% para otros rangos
- Parámetros de medición: emisividad, temperatura reflejada, temperatura ambiente, humedad, distancia, compensación ventana IR
- Herramientas de medición: 15 puntos, 6 líneas, 15 áreas
- Pantalla: 5" 1280×720 en px
- Cámaras digitales: 5MP + 13MP
- Tarjeta SD 256GB, ampliable hasta 2TB
- Software de análisis AnalyzIR
- Batería Li-ion 10000mAh (más de 4h por batería)
- Temperatura operativa: -20°C ~ 50°C
Accesorios incluidos:
- Cámara térmica
- Objetivo estándar
- Tapa del objetivo
- 3 baterías recargables de ion-litio
- Cargador de sobremesa y adaptador de corriente
- Cable USB Type-C
- Cable Micro HDMI
- Tarjeta SD y lector de SD
- Bolsa de accesorios (correa para muñeca)
- Documentación (manual, certificado de calibración, tarjeta de garantía)
- Maleta rígida
| Modelo | FOTRIC 226Pro | FOTRIC 228Pro | FOTRIC 229Pro |
|---|---|---|---|
| Resolución IR | 384 × 288 px | 640 × 480 px | 1280 × 1024 px |
| NETD (Sensibilidad térmica) | ≤ 40 mK @30°C | ≤ 30 mK @30°C | ≤ 30 mK @30°C |
| Paso del sensor | 17 μm | 17 μm | 12 μm |
| Frecuencia de imagen | 30 Hz | ||
| Campo de visión | 25° × 19° | 25° × 19° | 25° × 20° |
| IFOV | 1,14 mrad | 0,68 mrad | 0,34 mrad |
| Distancia mínima de enfoque | 10 cm | 25 cm | 40 cm |
| Rango de medición (estándar) | -20 ~ 120°C / 0 ~ 650°C | ||
| Rango extendido | Hasta -40°C y hasta 2.000°C | ||
| Precisión | -20~120°C; 0~650°C; rango inteligente | ||
| Zoom digital | 1~6x continuo | 1~16x continuo | 1~32x continuo |
| Memoria SD | 128 GB (ampliable hasta 2TB) | 256 GB (ampliable hasta 2TB) | |
| Formatos de guardado | JPEG, IRS (vídeo radiométrico), MP4 (vídeo no radiométrico) | ||
| Pantalla | LCD de 5", 1280 × 720 px | ||
| Batería | 3× Li-ion, 10.000 mAh | ||
| Software | AnalyzIR Professional | ||
