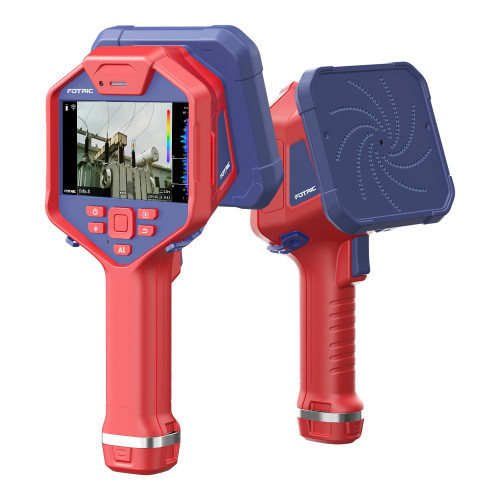

FOTRIC H6 Cámara acústica (162 micrófonos)
La FOTRIC H6 es el modelo más avanzado de la serie, ideal para inspecciones industriales de alta precisión. Con 162 micrófonos digitales MEMS, ofrece una sensibilidad superior para detectar señales acústicas mínimas. El modo Acoustic Focus mejora la selectividad de la señal, permitiendo diagnósticos precisos incluso en entornos complejos. La pantalla táctil LCD de 5" con cristal Gorilla Anti-Explosion garantiza robustez y facilidad de uso. Herramienta esencial para mantener la integridad de los equipos y prevenir fallos costosos.
- Micrófonos: 162 MEMS digitales
- Campo de visión acústico: 66° × 52°
- Tasa de muestreo: 200kHz
- Tasa de refresco: 25Hz
- Distancia de trabajo: 0,3~200m
- Rango de frecuencia: 2~100kHz
- Modos de detección: LQ (nivel de fuga), PD (diagnóstico de descargas parciales)
- Análisis en dispositivo y software AnalyzIR
- Pantalla: 5", 1280×720 px, táctil Gorilla Anti-Explosion
- Memoria: SD card intercambiable en caliente (hasta 1TB)
- Batería: 7,4V, 3500mAh, reemplazable en campo, autonomía ≥4h
- Protección: IP54
- Dimensiones: 175×151×95mm
- Peso (con batería): 1,3 kg
Accesorios estándar:
- Cámara acústica FOTRIC H6
- 2 baterías recargables de litio
- Base de carga
- Cable USB a USB-C
- Cable Micro HDMI a HDMI
- Documentación (certificado de calidad, certificado de calibración, garantía, lista de empaque)
- Manual rápido
- SD card (128 GB)
- Lector de SD card
- Adaptador de corriente
- Bolsa blanda
- Maleta rígida de transporte
