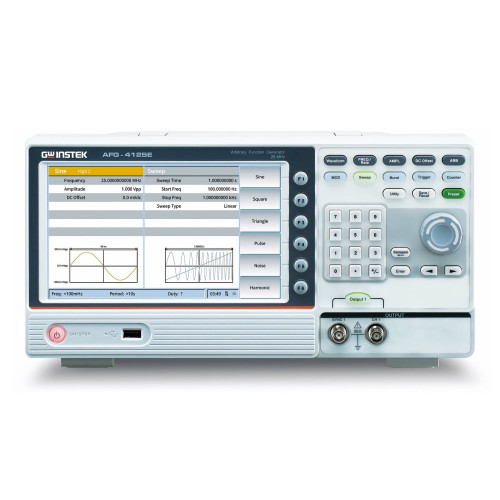

GW Instek AFG-4125E 25MHz, 1-Channel Arbitrary Function Generator
GW Instek AFG-4125E is a single channel arbitrary function generator with 25 MHz frequency range, 125 MSa/s sample rate, 14 bits resolution, 16 k/Channel memory length and USB (Host, Device) interface.
Included accessories:
1 x USB Cable
1 x Power Cord
1 x Test Lead, BNC to Alligator Clips Cable
GW Instek AFG-4000 Series features:
- Provide Single-channel or Dual-channel Output
- Built-in Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic Wave, Arbitrary Wave
- Minimum Resolution: 1μHz
- Maximum Sampling Rate: 1.25 GSa/s
- Amplitude Resolution: 14 or 16 bits
- Maximum Memory Length: 10M/per channel
- Modulation: AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM
- Built-in Sweep, Burst, Counter Function
- Built-in Power Amplifier Function (only AFG-4125AE)
- Communication Interface: USB and LAN
- 8" TFT LCD Display, 800 x 480 pixels Resolution
Product model selections
The entire AFG-4000 series has 8 models. In addition to frequency range, the main differences are sample rate, amplitude resolution, memory depth, interface and whether the models have a touch screen.
| Model | AFG-4125E | AFG-4125AE | AFG-4225E | AFG-4235 | AFG-4260 | AFG-4280 | AFG-4210H | AFG-4225H |
| Number of Channel | 1 | 2 | ||||||
| Frequency Range | 25 MHz | 25 MHz | 35 MHz | 60 MHz | 80 MHz | 100 MHz | 250 MHz | |
| Sample Rate | 125 MSa/s | 500 MSa/s | 1.25 GSa/s | |||||
| Amplitude Resolution | 14 bits | 16 bits | ||||||
| Memory Length | 16 k/Channel | 10 M/Channel | ||||||
| Touch Panel | No | Yes | ||||||
| Communication Interface | USB (Host, Device) | USB (Host, Device) and LAN | ||||||
| Buit-In Amplifier Function | – | ✔ | – | – | – | – | – | – |
