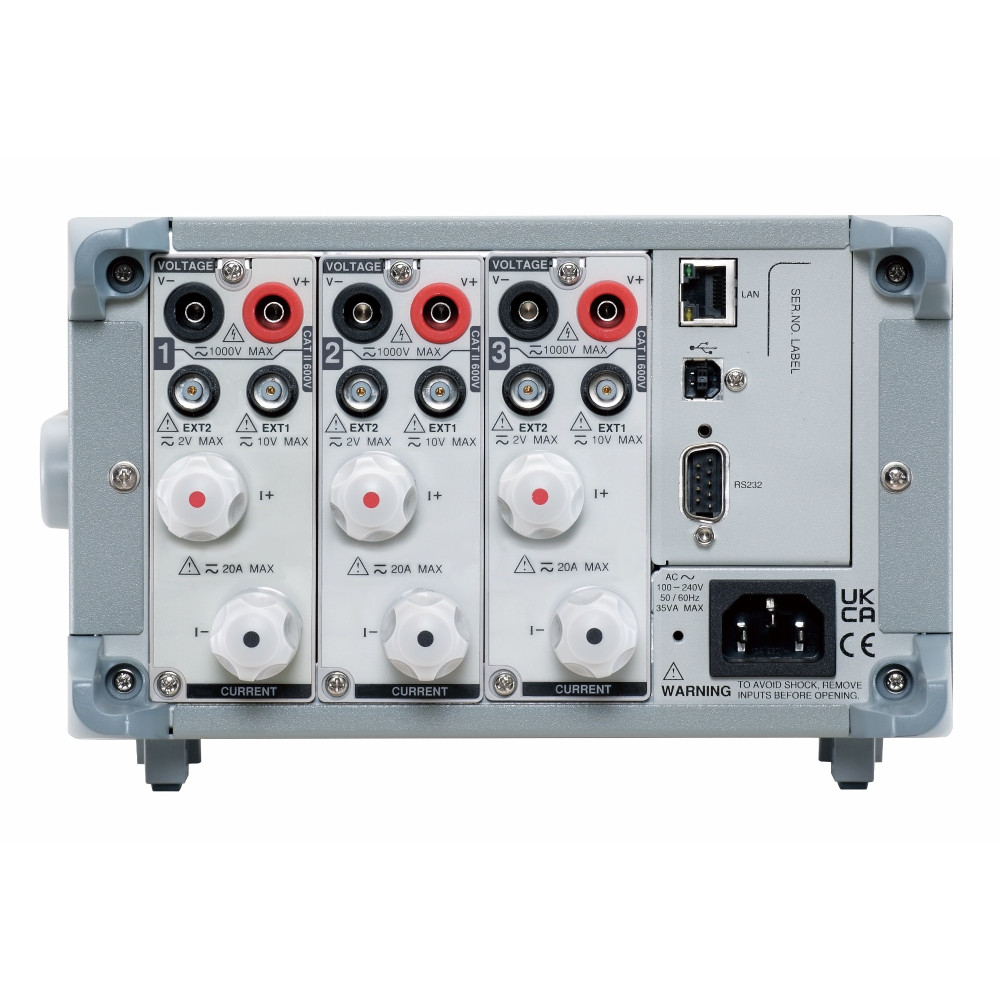

GW Instek GPM-8330 Digital Power Meter with RS-232C, USB and LAN
GW Instek GPM-8330 is a Digital Power Meter with RS-232C, USB device & host and LAN interfaces.
Series features:
- 5" TFT LCD Display
- Voltage and Current Test Frequency Bandwidth: DC, 0.1Hz ~ 100kHz
- Waveform Display: V (Voltage), I (Current), P (Wattage)
- Distorted wave Current and Voltage measurement: full range for CF=3, and half range for CF=6 (or 6A)
- Meeting IEC 61000-4-7 harmonic measurement (50/60Hz)
- Wiring selecting button (1P3W, 3P3W, 3P4W, 3V3A)
- Harmonic measurement and analysis up to 50 orders
- Auto ranging function for Integration mode
- Screen Capture through USB host
- Provide external current sensor input (EXT1/EXT2)
- Standard Interfaces: RS-232C, USB device/host and LAN
- Optional Interfaces: GPM-DA12 GPIB + Digital I/O (factory installed only)
Standard Accessories:
- 1 x Safety Instruction Sheet and Power cord
- 3 x GTL-209 Test Lead
- 3 x GTL-212A Test Lead
- 1 x CD (including complete user manual and USB driver)
- 1 x GPM-002 Terminal Cover
| Specification | GPM-8320 | GPM-8320-60 | GPM-8330 | GPM-8330-60 | GPM-8320+GPIB-DA12 | GPM-8320-60+GPIB-DA12 | GPM-8330+GPIB-DA12 | GPM-8330-60+GPIB-DA12 |
|---|---|---|---|---|---|---|---|---|
| Channels | 2 | 2 | 3 | 3 | 2 | 2 | 3 | 3 |
| Max Voltage | 1000V | |||||||
| Max Direct Current | 5A | 60A | 5A | 60A | 5A | 60A | 5A | 60A |
| Current Range (CF=3) | 200mA - 5A | 1A - 60A | 200mA - 5A | 1A - 60A | 200mA - 5A | 1A - 60A | 200mA - 5A | 1A - 60A |
| Accuracy | ±(0.1% reading + 0.05% range) | |||||||
| Sample Rate | 300 kHz | |||||||
| Display | 5" TFT LCD (800×480) | |||||||
| Wiring Configurations | 1P3W, 3P3W, 3P4W, 3V3A | |||||||
| Harmonic Analysis | Up to 50 orders (IEC 61000-4-7) | |||||||
| Standard Interfaces | RS-232C, USB device/host, LAN | RS-232C, USB device/host, LAN, (GPIB + Digital I/O) | ||||||
| DA12 Digital I/O | No | Yes (12 D/A outputs) | ||||||
| Remote Control | Start/Stop integration | Start/Stop + 12 analog outputs | ||||||
