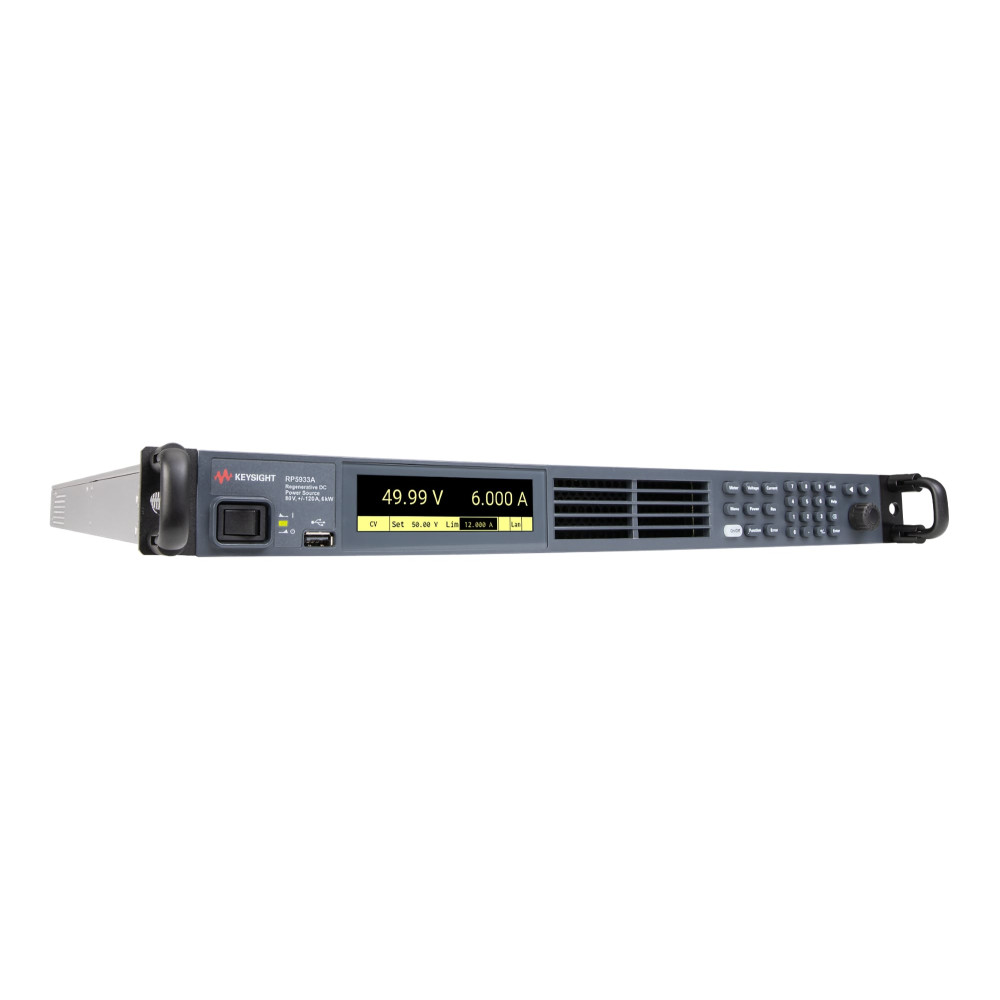

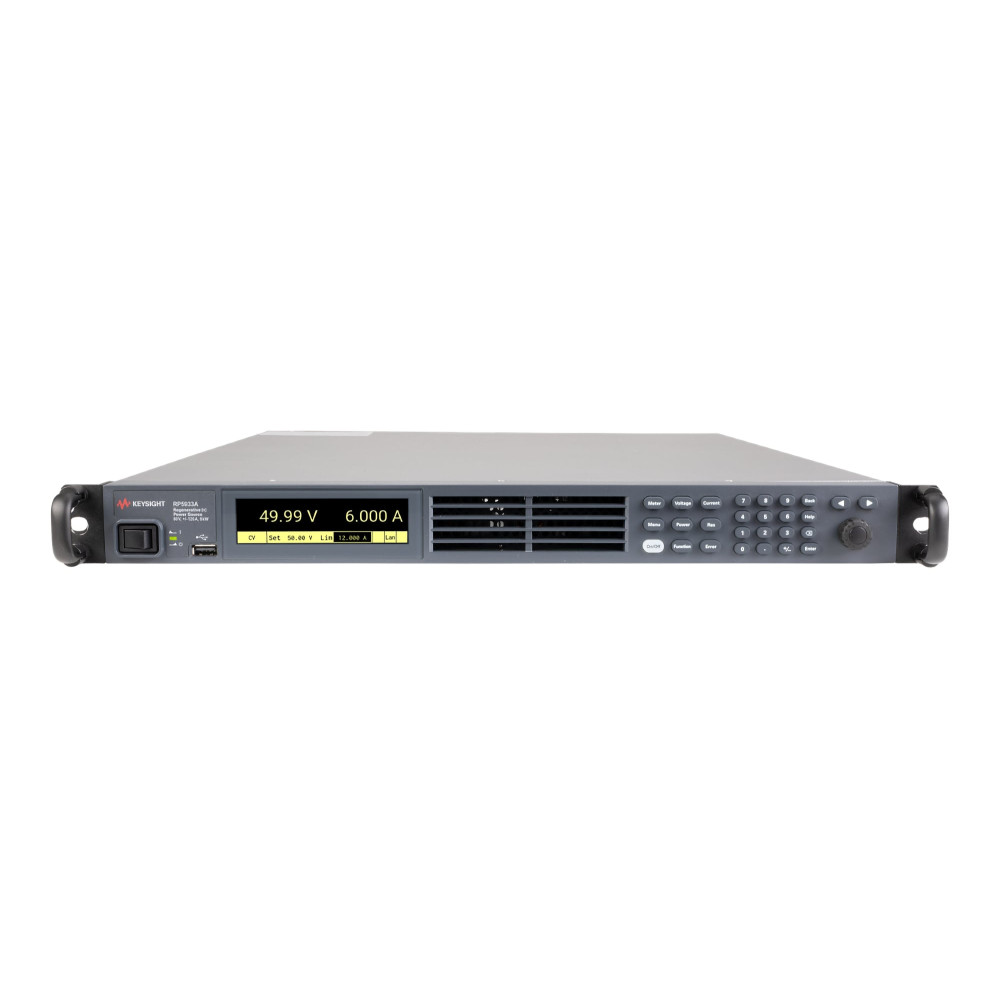

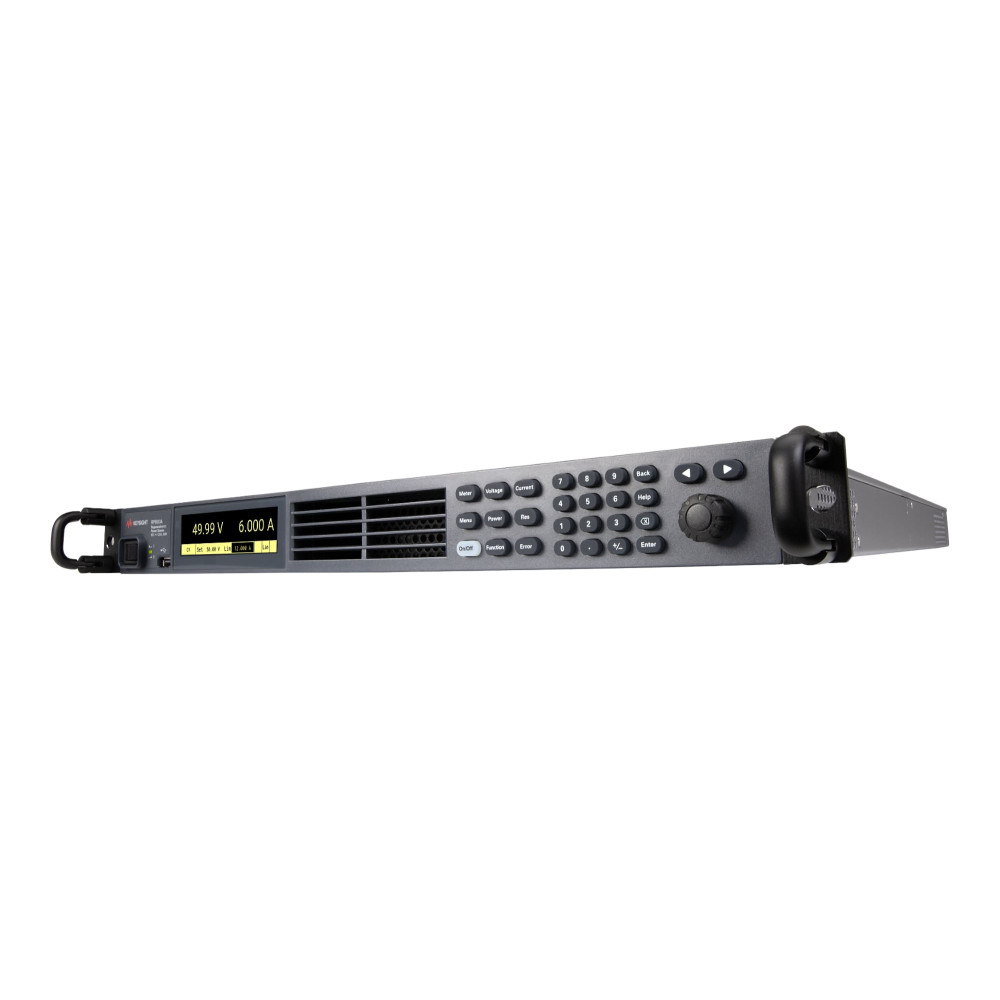

KEYSIGHT RP5933A Bidirectional Regenerative DC Power Supply, 80V, 120A, 6kW
KEYSIGHT RP5933A is a bidirectional, regenerative DC power supply from the RP5900 series, integrating a power supply and an electronic load into a single compact instrument. Capable of sourcing or sinking up to 80V, 120A, and a maximum power of 6kW, it is designed for efficiency: its regenerative capability returns up to 95% of the energy to the grid, reducing energy and cooling costs. Its compact 1U form factor makes it ideal for testing batteries, inverters, and DC-DC converters in R&D and production environments where space is limited.
Key Features
- 2-in-1 Functionality: Operates as both a DC power supply (source) and an electronic load (sink).
- Rated Power: 6 kW (both sourcing and sinking).
- Bidirectional Output: up to 80 V / ±120 A.
- Regenerative Technology: Returns up to 95% of energy to the grid.
- Compact Form Factor: High power density in a 1U, full-rack size.

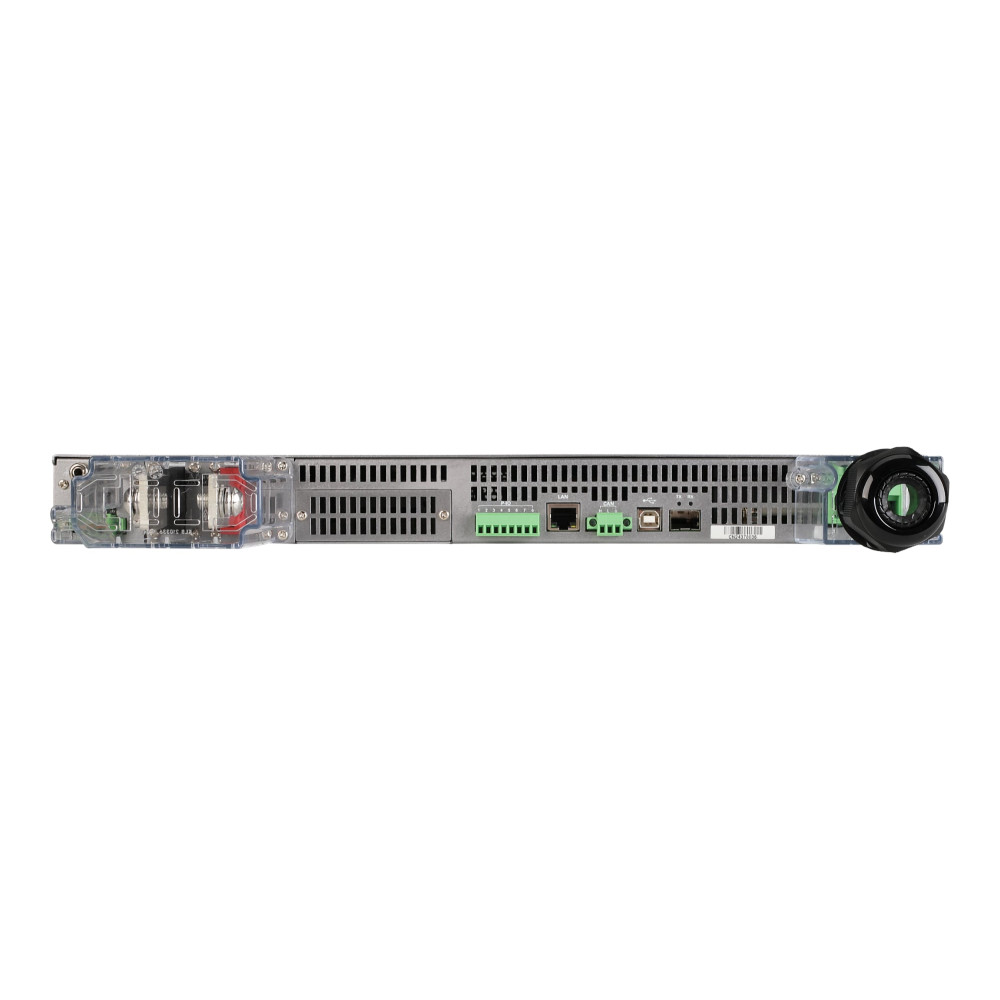

- Standard Interfaces: LAN, USB, CAN, and GPIB included.
- Scalability: Can be connected in parallel (up to 16 units) to increase power and current.
Package Contents
- RP5900 Series DC Power Supply/Load
- User documentation
Note: The power cord is not included and must be supplied by the user.
