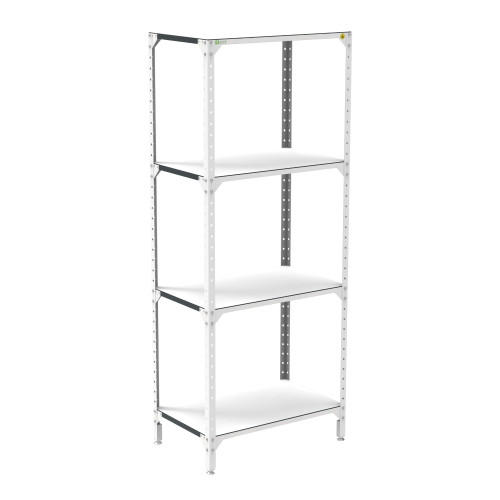

ESD shelf 2000x800x500 with 5 shelves

Bolted ESD rack 2000x800x500 with 4 shelves (shelf in 25 mm dissipative panel). This rack is specifically designed for use in environments sensitive to electrostatic discharges (ESD), offering a robust and organized storage solution for materials, components, and equipment in a safe way for sensitive electronic devices.

Main features:

• Dimensions: The rack has a height of 2000 mm, a width of 800 mm, and a depth of 500 mm. The tall height maximizes vertical storage space, while the 800 mm width provides a good surface for each shelf. The 500 mm depth allows for storing considerably sized objects.
• Bolted Structure: The bolted design ensures high stability and robustness of the structure. This type of construction also makes assembly and disassembly easier, making the rack easier to transport and reconfigure if needed.
• Number of Shelves: It is equipped with 4 shelves, offering multiple storage levels for better organization. The distance between the shelves can be adjusted during assembly to accommodate different heights of stored items.
• Shelf Material: The shelves are made of 25 mm thick dissipative panel. This material is essential for ESD applications:
  • Dissipative: The panel has a controlled surface resistivity (generally between 10⁴ and 10¹¹ Ohms) that allows electrostatic charges to dissipate gradually and safely, preventing sudden discharges that could damage sensitive electronic components.
  • Thickness: The 25 mm thickness gives the shelves robustness and stability, allowing them to support a reasonable load without excessive bending.
• Upright Structure: The uprights of the rack are made of steel, ensuring strength and stability for the entire structure. These too can be treated with conductive or antistatic coating to ensure continuity of the discharge path to ground.
• ESD Compliance: This rack is designed to help create a work environment compliant with ESD standards, such as IEC 61340-5-1. The use of dissipative panels for the shelves is a key element for ESD protection within an ESD Protected Area (EPA).
• Versatility: Ideal for the organized and safe storage of electronic components, PCB boards, test and measurement equipment, and consumables in industrial environments, electronics laboratories, and ESD warehouses. Its dimensions make it a versatile solution for various storage needs.
