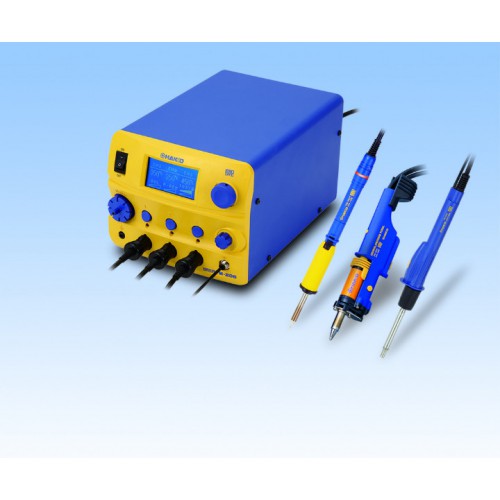

HAKKO FM-206 3-Port Rework Station: Soldering, Desoldering and Hot Air rework needs
HAKKO FM-206 3-Port Rework Station: Soldering, Desoldering and Hot Air rework needs
Multi-station that enables soldering, desoldering, and SMD rework all with a single unit
Single-nozzle hot air handpiece comes as standard equipment
Graphic LCD enables easy viewing and operation
Supports the N2 system
Combines soldering, desoldering, and rework functions in a compact body
Features expandability in which the handpiece can be switched as needed for added functions
Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece
Altough the pump can be used for both FM-2024 and FM-2029, when using the internal pump, both cannot be used at the same time. Simultaneous use is possible by connecting FM-2029 to external air.
Supplied tools
Packing List:
- Station
- Power cord
- FM-2024 conversion kit
- Tip tray
- FM-2027 conversion kit
- FM-2029 conversion kit
- Instruction manual
Tips are not included
Specifications:
Power consumption: 410W (Max.)
Temperature range:
- FM-2026/2027: 200-450ºC
- FM-2022/2023: 200-400ºC
- FM-2024: 350-450ºC
- FM-2029: 100-550ºC
- FM-2030: 200-500ºC
- FM-2031: 200-500ºC
Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 24V
- Vacuum generator: Vacuum pump, cylinder type
- Vacuum pressure: 80kPa (600mmHg) (Max.)
- Suction flow: 14L/min.
- Air flow: 6L/min. (Max.)
- Dimensions: 162(W)×136(H)×245(D)mm
- Weight: 6.2kg
Soldering Iron HAKKO FM-2027 ( T15 series soldering tips )
Power consumption: 70W (24V)
Tip to ground resistance: <2Ω
Tip to ground potential: <2mV
Heating element: Composite heater
Cord length: 1.2m
Total length: 188mm (with 2.4D tip)
Weight: 30g (with 2.4D tip)
Desoldering Tool HAKKO FM-2024 ( N3 series desoldering nozzles )
Power consumption: 70W (24V)
Nozzle to ground resistance: <2Ω
Nozzle to ground potential: <2mV
Heating element: Composite heater
Cord length: 1.2m
Total length: 180mm (with Φ1.0mm nozzle)
Weight: 65g (with Φ1.0mm nozzle)
Handpiece (Hot air) HAKKO FM-2029 ( Hot air nozzle N4 )
Power consumption: 140W (24V)
Nozzle to ground resistance: <2Ω
Nozzle to ground potential: <2mV
Heating element: Composite heater
Cord length: 1.2m
Total length: 232mm (with Φ4.0mm nozzle)
Weight: 50g (with Φ4.0mm nozzle)
Total length and weight (w/o cord)
Total length and weight for handpiece (Hot air) (w/o cord, tube)
