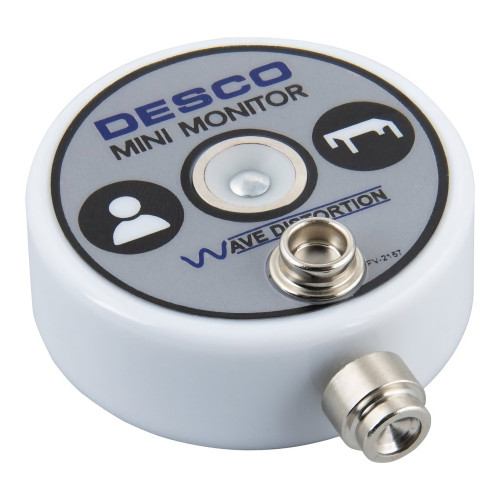

Desco Europe 19343 Mini Monitor with 10mm ParkSnap and Snap Adapter, with Universal Power Adapter
Desco Europe 19343 - Mini Monitor with 10 mm ParkSnap™ and Snap Adapter, with Universal Power Adapter
Key features:
- Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface - NEW Illuminated Enclosure¹
Makes the status of the operator and worksurface highly visible to the operator and supervisor - IMPROVED Continuous Visual and Audible Alarms
Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode - NEW Park Delay Timer and ParkSnap™
Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm - NEW Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface - NEW Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder - Wave Distortion Technology
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground² and the presence of its 1 megohm safety resistor - Threaded Worksurface Grounding and Mounting
Grounds and monitors the worksurface with no additional wire - Single-Wire Impedance Design
Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0 - 1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components - <50 Millisecond Alarm Response Time
Identifies failures and intermittencies that inferior technologies miss - Desco Europe 19344 Ring Magnets
Mounts the monitor in areas without a worksurface - Calibration Verification
Use the Desco Europe 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations - NIST Calibrated - Original Calibration Certificate can be Downloaded Here
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco Europe products, see Calibration. - 100-240VAC Power Adapter with IEC C14 Style Inlet
Connects to a power cord with a IEC C13 outlet connector - Power cord sold separately
- Made in the United States of America
¹Patent pending
²The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
