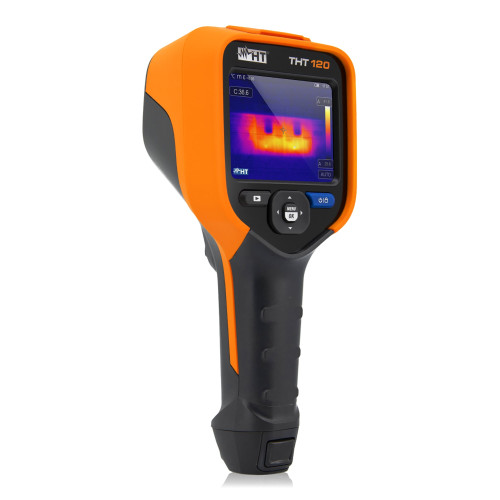

HT Instruments THT120 Infrared Thermal Camera with 120x120pxl Resolution, PiP, max. 650°C
HT Instruments THT120 is the new professional thermal camera equipped with a high resolution 120 x 120pxl IR sensor which makes it suitable for use in electrical, mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20° C ÷ 650.0° C and a field of view of 21° x 21°, producing high quality thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. It is also equipped with Wi-Fi connection, as well as being compatible with the new and convenient HT Pro Camera application.
What's in the box:
1 x User Manual
1 x USB cable
1 x Calibration report
1 x micro SD card 16GB
Features:
- IR Resolution: 120 x 120 pixels
- Temperature range: from -20° to 650°C
- Image frequency: 50Hz
- Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
- Field of view (FOV): 15.6° x 15.6°
- Focal length: f 1.0
- Lens: 7.5 mm
- IFOV: 4.53 mrad
- Focus mode focus free
- Built-in camera: 2 MP, focus free
- Picture in Picture function (PiP)
- AutoFusion image enhancement
- Uncertainty about the measure: ±2°C (±3.6°F) o±2% of reading
- Digital zoom: 1x ÷ 32x
- Measurement tools (in live mode): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
- Area measurement information: max, min, AVG
- IR Video recording
- Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
- Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
- Span modes: Automatic / Manual / Histogram
- Internal memory: 3,4 GB
- On-camera report building: text annotation
- Communication modes: USB type C, Wi-fi, SD card
- Display: touch screen
- Battery operation time: 4 hours
- Size (LxWxH): 240 x 101 x 110mm
