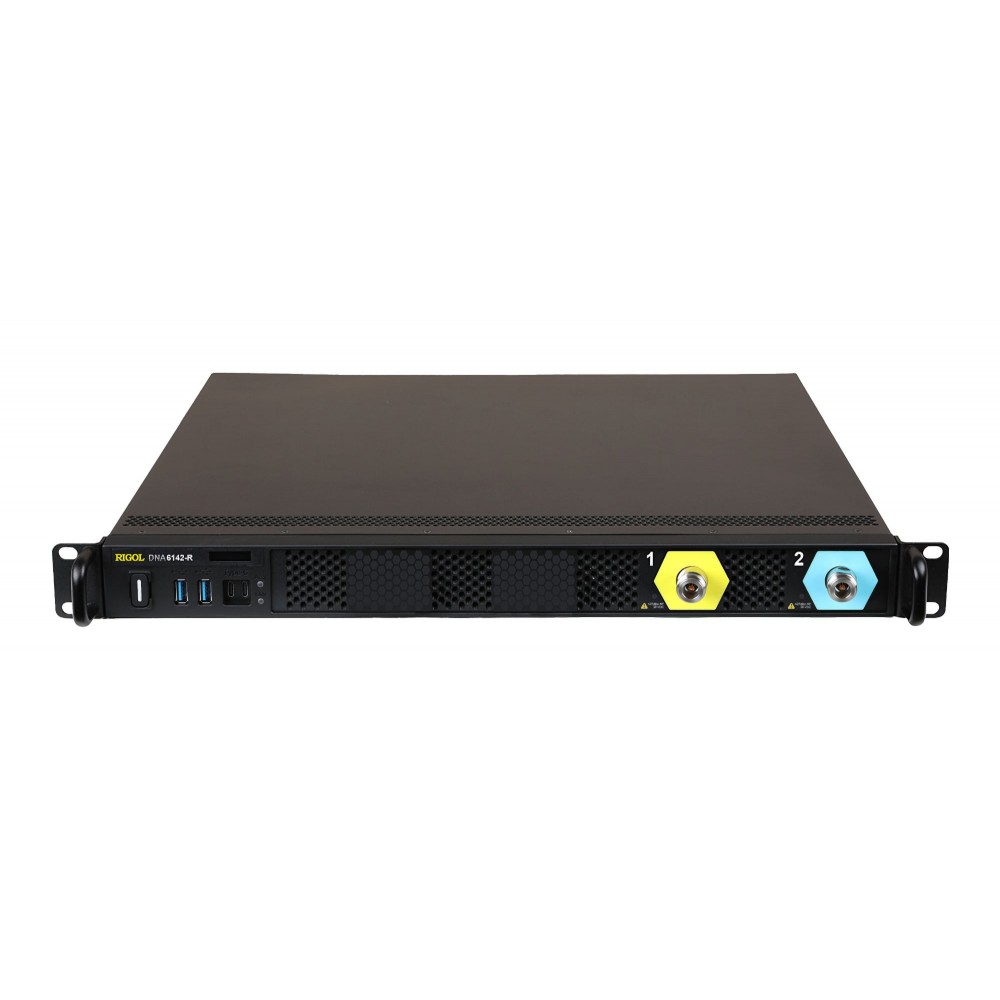

RIGOL DNA6142-R (14 GHz, 2 Ports) Rack-Mount Vector Network Analyzer (VNA)
RIGOL DNA6142-R is part of the DNA6000-R Series, a line of screenless vector network analyzers (VNAs) specifically designed for rack integration and automated test environments (ATE). With its compact 1U form factor, it maximizes valuable system space while delivering flagship-class measurement performance. This model covers a frequency range from 5 kHz to 14 GHz across 2 test ports, utilizing Type-N female connectors.
Despite its screenless architecture, the instrument retains full operational flexibility through its LAN, USB, HDMI, and GPIB interfaces, allowing control via an external monitor or remotely using Web Control and SCPI commands. It features an exceptional dynamic range of up to 127 dB and an ultra-low trace noise of 0.003 dBrms, making it ideal for high-volume manufacturing and precise RF component characterization.
Key Features
- Frequency Range: 5 kHz to 14 GHz.
- Test Ports: 2 ports with Type-N female connectors.
- Form Factor: Compact 1U rack-mount design (screenless architecture).
- RF Performance: Dynamic range up to 127 dB, 1 Hz frequency resolution, up to 100,001 sweep points.
- Complete Connectivity: HDMI (for external monitor), USB Host/Device, LAN (LXI), GPIB, and Application I/O.
- Applications: Automated test equipment (ATE), RF component manufacturing, antennas, filters, and high-speed cables.
