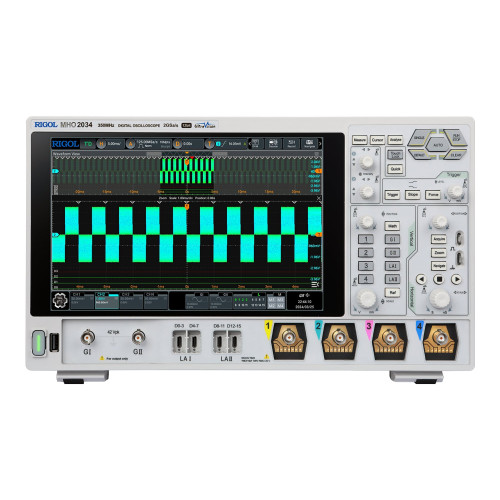

RIGOL MHO2034 12-bit Oscilloscope, 350MHz, 4 Channels
RIGOL MHO2034 is a 350 MHz, 4 analog channels high-resolution digital oscilloscope designed for demanding design, debugging, and test tasks. Built on the advanced Centaurus platform, it combines 12-bit vertical resolution, deep memory, fast waveform capture, and comprehensive analysis tools. Its portable design and battery operation make it ideal for both laboratory and field use.
Key Features
- Bandwidth: 350 MHz (4 analog channels + 1 EXT trigger channel)
- 12-bit vertical resolution (up to 16-bit in high resolution mode)
- Real-time sample rate: up to 2 GSa/s
- Maximum memory depth: 500 Mpts (half-channel), 250 Mpts (full-channel)
- Waveform capture rate: up to 1,000,000 wfms/s (record mode), 200,000 wfms/s (vector mode)
- Vertical sensitivity: 100 μV/div to 10 V/div (1 MΩ), 100 μV/div to 1 V/div (50 Ω)
- Input impedance: 1 MΩ ±1%, 50 Ω ±1%
- Input coupling: DC, AC, or GND
- Calculated rise time: 1.4 ns (typical, 50 Ω)
- 10.1" capacitive multi-touch screen (1280×800), 256-level intensity grading
- Standard 16 digital channels (logic analyzer probe required)
- Standard interfaces: USB Device, USB Host, LAN (LXI), HDMI, AUX OUT
- Advanced features: hardware mask test, digital voltmeter, 6-digit frequency counter, search & navigation, Bode plot (with AWG option), power analysis (optional), histogram, segmented memory, pass/fail testing, and online firmware upgrade
Standard Equipment
- 4x PVP2350 passive probes
- AC power adapter
- USB cable
- Quick manual
