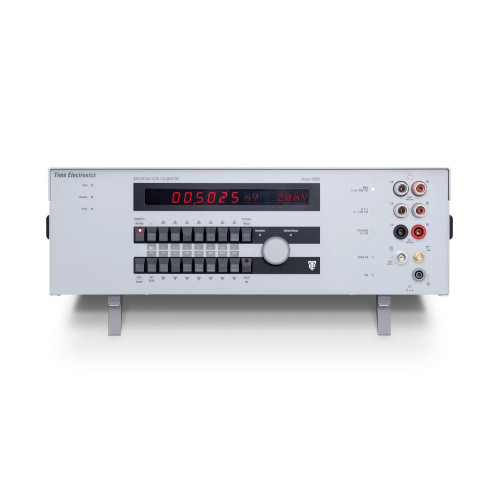

Time Electronics 5025E Multifunction Calibrator
Time Electronics 5025E Series 2 model is a multi-product calibrator that provides a versatile and efficient solution for wide workload coverage. Calibrate various types of electrical test tools and electronic measuring devices with a calibrator that meets both technical and budgetary requirements.
Functions include AC/DC voltage and current, digital frequency, variable resistance, conductance, capacitance, thermocouple and Pt100 simulation. AC and DC power calibration via simultaneous voltage and current output, with adjustable phase, and frequency to 500 Hz. An oscilloscope calibration option enables generation of levelled sine-waves up to 2.2 GHz.
Clamp meter calibration is simplified by additional TurnCoil ranges for DC and AC current, designed for use with the 9780 adaptor. Further options include an optical tachometer calibration adaptor, 100 A AC current transformer, and a power amplifier that increases the AC/DC voltage output drive capabilities to 100 mA.Accessories include test lead sets, carry cases and rack mount kits. EasyCal software is available to enable software driven calibration.
Features:
- 40 ppm precision calibrator
- 0 to 1050 V AC/DC voltage
- 0 to 22 A AC/DC current
- Resistance and capacitance
- Thermocouple and Pt100 simulation
- Clamp meter and power calibration
- Optional oscilloscope calibration
- RS-232, USB, and GPIB interfaces
- EasyCal software compatible

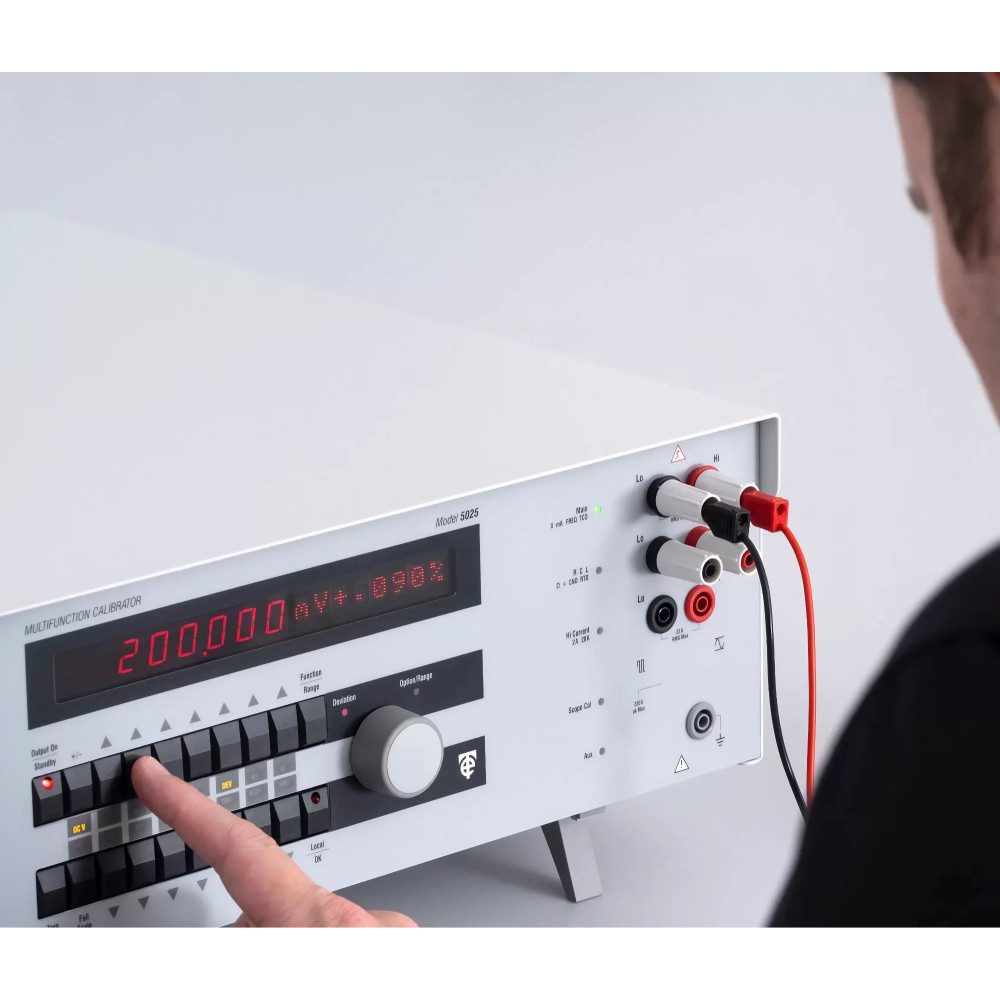

Simple Operation
Front panel operation is easy and intuitive. Quickly select functions and ranges, set output values and increment digits up/down via the keypad.
A deviation control feature enables the user to finely adjust the output value as a percentage (± 9.999 %). All information is shown on a clear, easy to read alphanumeric display.
Calibration Capabilities
The 5025E-S2 can calibrate various instruments and devices including:
- Analogue and digital multimeters, panel meters, process meters
- Clamp meters (with clamp coil option 9780)
- Power meters, watt meters
- Tachometers, chart recorders, data loggers
- Thermocouple and Pt100 meters, electronic thermometers
- Oscilloscopes and timer counters (with SCP option)
Model Options:
5025E-S2: 5025E Series 2 Multifunction Calibrator
5025E-S2/ACRD: 5025E Series 2 Multifunction Calibrator with accredited calibration
5025E-S2/SCP: 5025E Series 2 Multifunction Calibrator with scope calibration option
5025E-S2/SCP/ACRD: 5025E Series 2 Multifunction Calibrator with scope calibration option and accredited calibration
Optionals:
9780: Clamp Meter Adaptor
S2PTL: Series 2 Premium Test Lead Set
9762: External Rubidium Frequency Reference
9764: Current Probe Calibration Adaptor
5065: 6.5 digit Multimeter
9773: Optical Tacho Adaptor
9790: 100 A AC Current Transformer
9760: Power Amplifier
9766: Low Noise Attenuator 1000:1
9767: Low Noise Attenuator 100:1
9059: Hard Transit Case
9085: Soft Carry Case
9728: 19” Universal Rack Mount Kit
ECFLA: EasyCal Calibration Software
9795: Printer & Connectivity Kit
9777: Bar Code Reader
9778: Cal and ID Label Printer
9779: Job & Address Label Printer
9794: GPIB - USB Adaptor
9597: GPIB Cable
