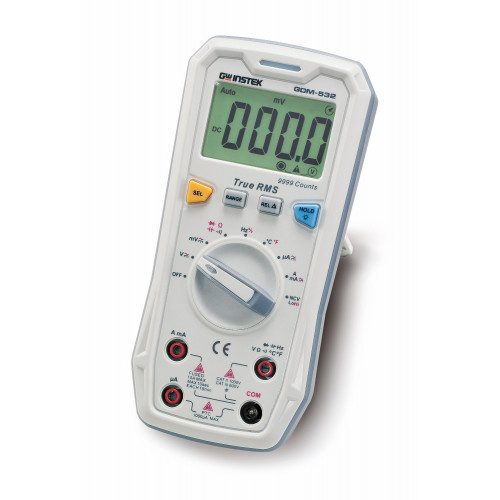

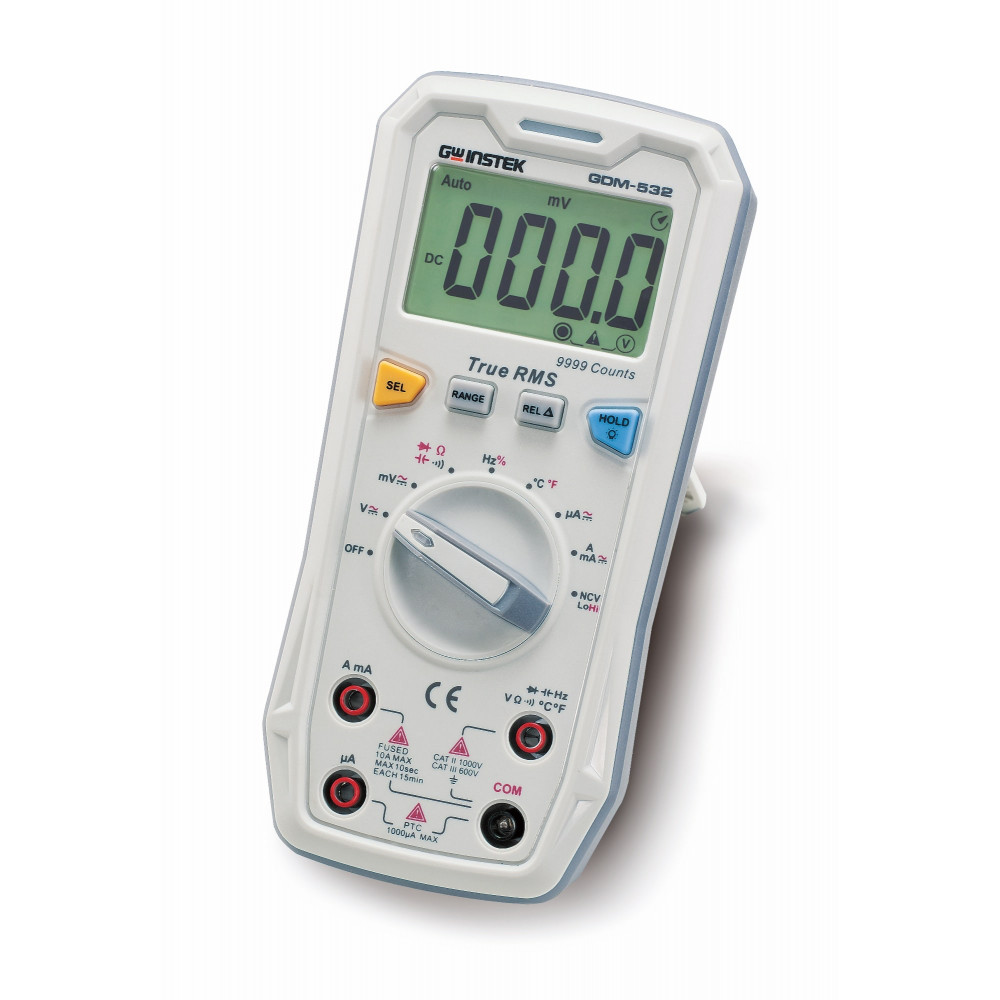

GW Instek GDM-532 Hand-Held Digital Multimeter 9999 Counts
GW Instek GDM-532 is a compact, high-precision, battery-powered multimeter with 9999 counts, 999.9 V AC/DC voltage, and 9.99 A AC/DC current.
Features:
- 9999 counts with automatic/manual range
- Backlit display / Auto power-off
- Continuity buzzer / Diode test
- Temperature measurement

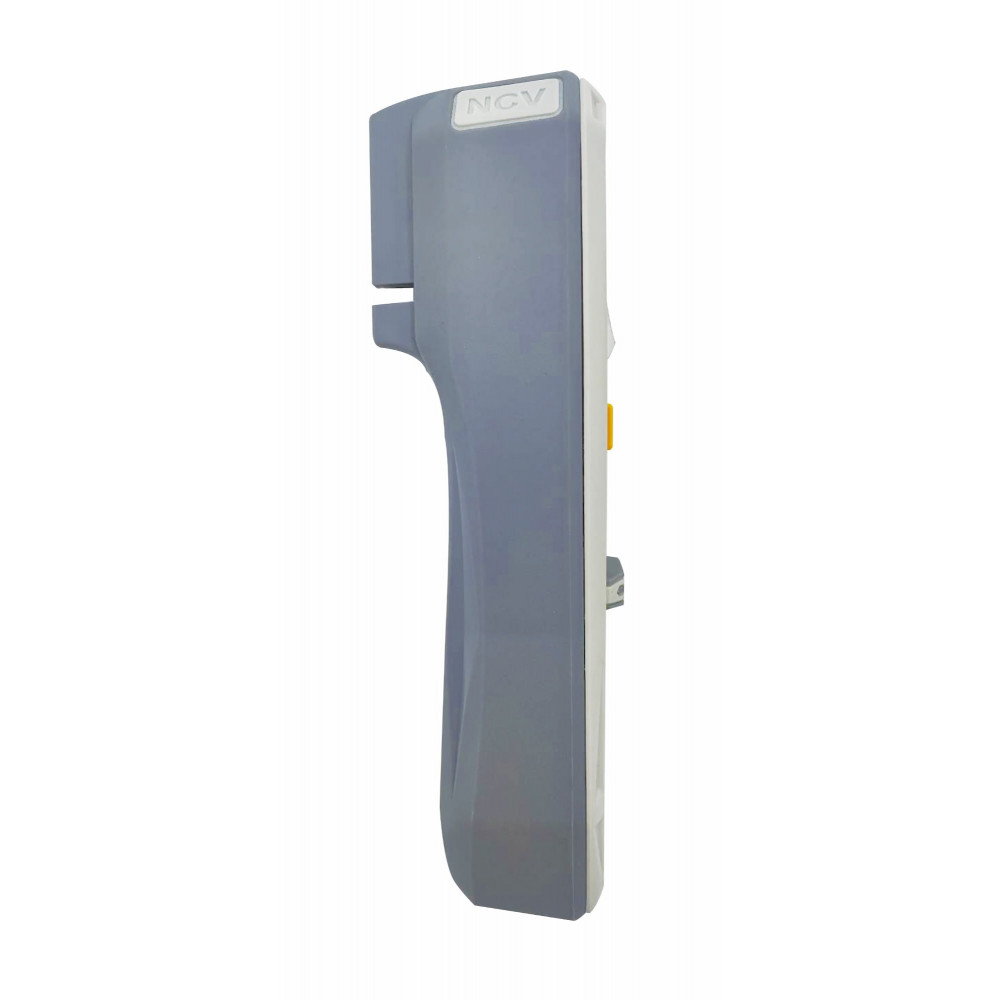

- Non-contact voltage detection (NCV)
- Data Hold function and relative mode
- True RMS
The GDM-500 Series portable multimeters are a line of compact, high-precision, battery-powered multimeters designed to meet the needs of service technicians. The design of the GDM-500 series is driven by mobile-oriented features: automatic shut-off to preserve battery life, a large backlit display for clear viewing, a rotary selector and buttons for easy operation, and an NCV (non-contact voltage) function for outdoor use.
The basic functions match those of benchtop multimeters: fuse-protected current input, true RMS for accurate AC measurements, audible/visual overload alarm, auto-detection, duty cycle, and relative mode. These compact, reliable, and affordable devices are ideal for any engineer.
| MODEL | GDM-541 | GDM-533 | GDM-532 | GDM-531 |
| Max. Display | 22000 | 6000 | 9999 | 6000 |
| Auto Ranging | ✓ | ✓ | ✓ | - |
| Analog Bar | ✓ | ✓ | - | - |
| True RMS | ✓ | ✓ | ✓ | - |
| Display Backlight | ✓ | ✓ | ✓ | ✓ |
| Auto Power off | ✓ | ✓ | ✓ | ✓ |
| Curr. Range Protection | PTS & Fuse | PTS & Fuse | Fuse | Fuse |
| DC Voltage | 1000V | 1000V | 999.9V | 600V |
| AC Voltage | 1000V | 1000V | 999.9V | 600V |
| DC Current | 20A | 20A | 9.99A | 10A |
| AC Current | 20A | 20A | 9.99A | - |
| Resistance | 220MΩ | 60MΩ | 99.99MΩ | 60MΩ |
| Capacitance | 220mF | 60mF | 9.999mF | 9.999mF |
| Frequency | 220MHz | 10MHz | 9.9MHz | |
| Diode | ✓ | ✓ | ✓ | ✓ |
| Continuity | ✓ | ✓ | ✓ | ✓ |
| Temperature | - | ✓ | ✓ | - |
| Duty Cycle (%) | ✓ | ✓ | ✓ | - |
| Transistor (hFE) | ✓ | - | - | - |
| NCV Function | ✓ | ✓ | ✓ | ✓ |
| REL | ✓ | ✓ | ✓ | - |
| Data Hold | ✓ | ✓ | ✓ | ✓ |
| Peak Hold | ✓ | ✓ | - | - |
| MAX MIN | ✓ | ✓ | - | - |
| LoZ ACV | - | ✓ | - | - |
| Audible / Visual Alarm | ✓ | ✓ | ✓ | ✓ |
| AC+DC Measurement | ✓ | - | - | - |
| Interface | USB | USB | - | - |
| Safety Rating | CAT III 1000V CAT IV 600V |
CAT III 1000V CAT IV 600V |
CAT II 1000V CAT III 600V |
CAT III 600V |
