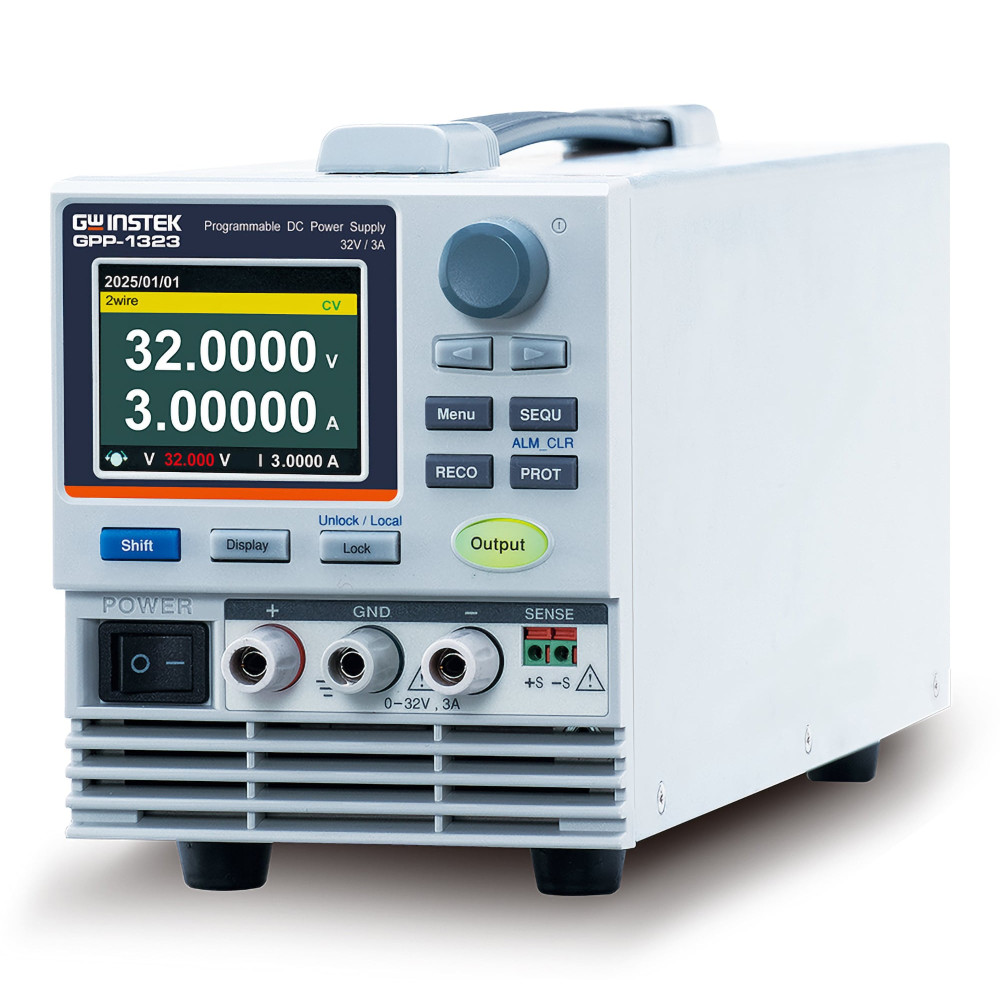

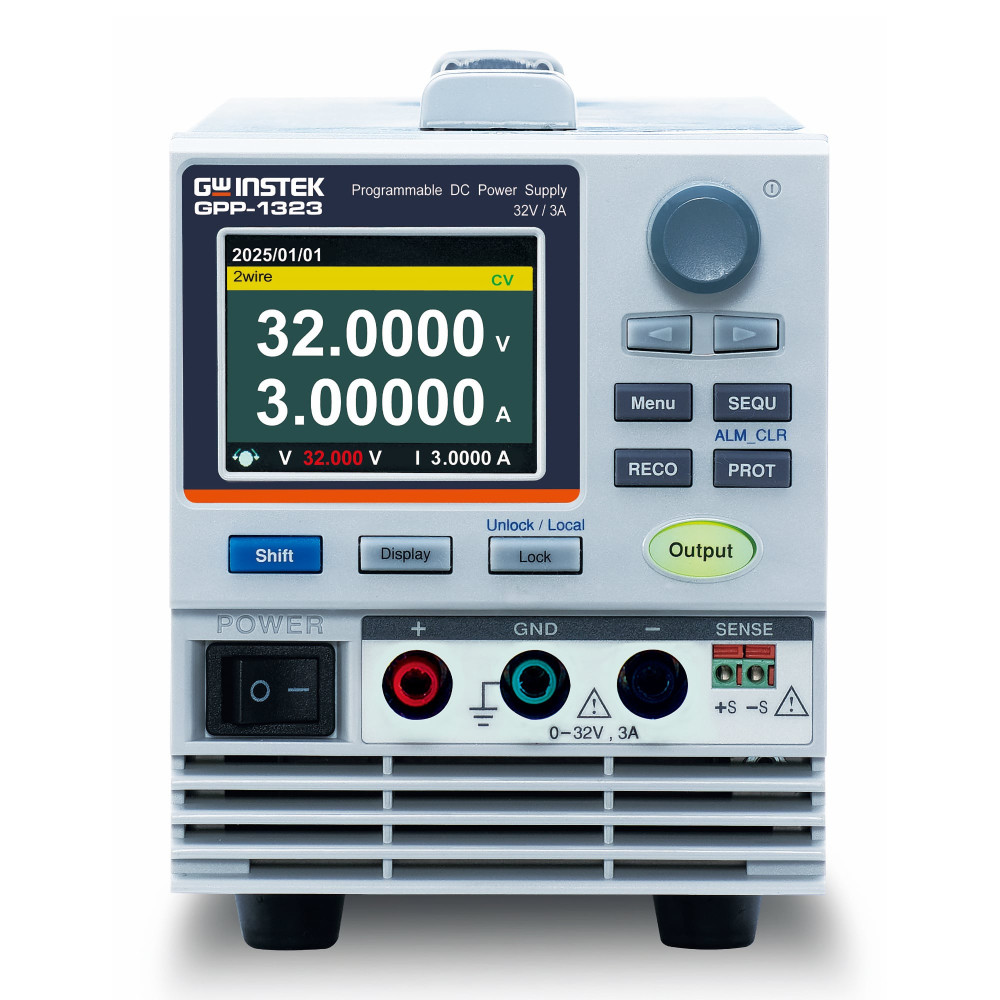

GW Instek GPP-1323 Programmable Linear DC Power Supply 32V/3A/96W
GW Instek GPP-1323 programmable linear DC power supply is a high-precision instrument designed for test applications that demand accuracy and stability. It provides a voltage resolution of up to 0.1 mV and a three-level current resolution down to 0.1 μA, ensuring extremely detailed control over the output.
A key feature of the GPP-1000 series is its dual functionality: it can operate both as a power supply (in Constant Voltage CV or Constant Current CC mode) and as a DC electronic load. This makes it perfect for a wide range of applications, such as battery charge and discharge tests. The instrument includes advanced functions like sequence programming, slew rate control for voltage and current, and remote sense to compensate for voltage drops in the connection cables. Standard USB and LAN interfaces facilitate its integration and remote control.
Key features:
- Output Power: 96W (32V / 3A)
- High Resolution: Up to 0.1 mV / 0.1 µA
- Dual Function: Power Supply and Electronic Load (CV, CC)
- Advanced Functions: Sequence programming, Slew Rate control, Remote Sense
- Multiple Protections: OVP, OCP, OTP, and panel lock

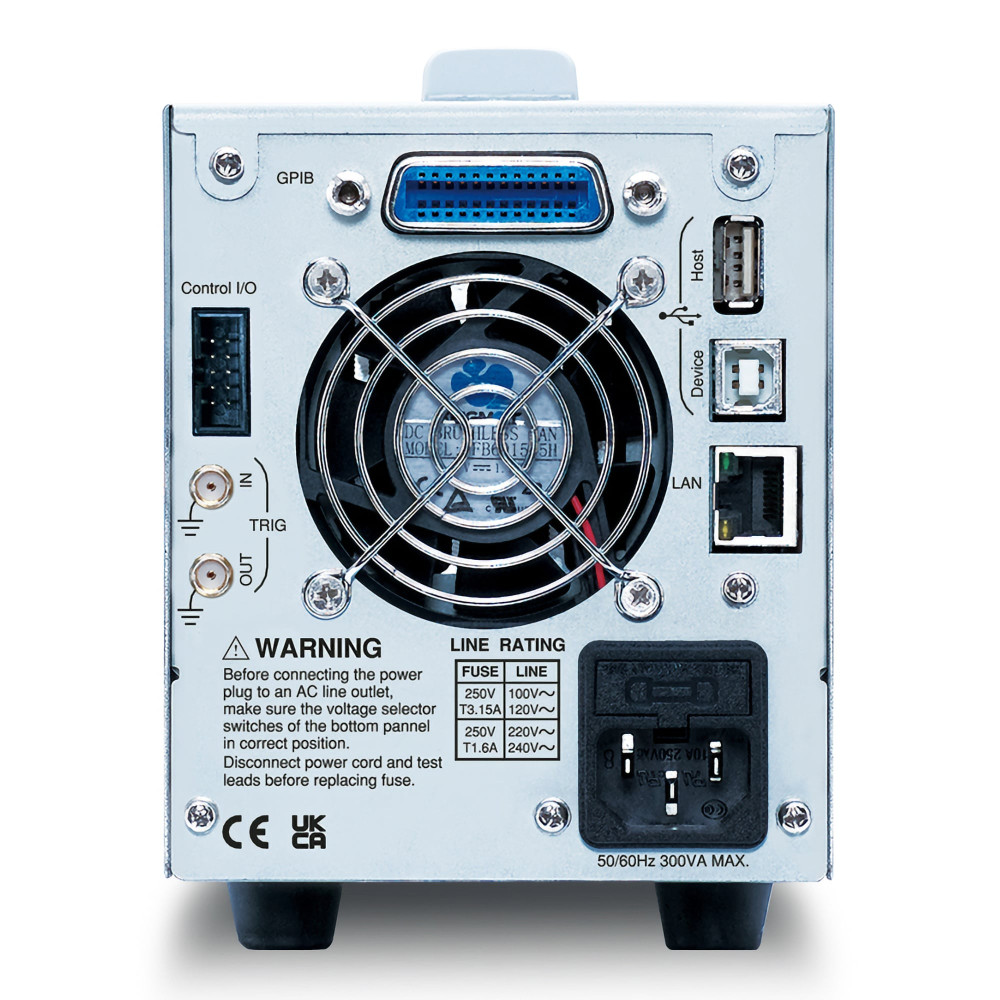

- Standard Interfaces: USB Host/Device, LAN
