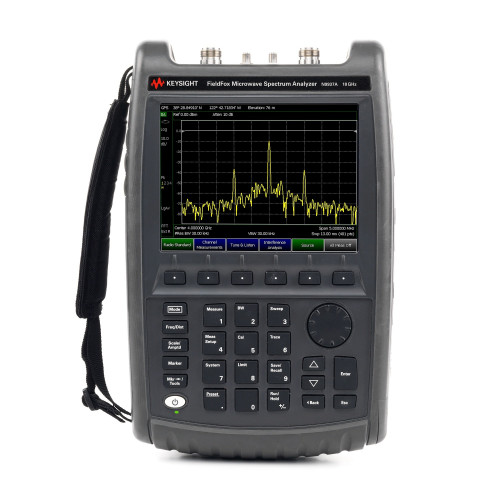

KEYSIGHT N9937A FieldFox 18 GHz Handheld Microwave Spectrum Analyzer

KEYSIGHT N9937A FieldFox 18 GHz Handheld Microwave Spectrum Analyzer

KEYSIGHT N9937A is a handheld, lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier and power meter. It provides 2 built-in ports with 18 GHz maximum frequency (Ku band) and output power up to 1 dBm.

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.

- Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
- Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
- Characterize radar pulse profiles with a portable solution.
- Perform over-the-air measurements for 5G TF and LTE.
- Capture I/Q data for RF signal monitoring and analysis.
- Use GPS/GNSS for geolocation and timestamping.
- Carry one lightweight unit at 3.0 kg (6.6 lb).

What's included:
1x AC/DC adapter
1x Localized power cord
1x Rechargeable Li-ion battery
1x LAN cable
1x Soft carrying case with backpack and shoulder straps
1x Quick Reference Guide

Make your FieldFox handheld analyzer more capable with convenient software upgrades — engineered to deliver precise measurements in the field.
- Carry one portable instrument that handles routine maintenance and in-depth troubleshooting.
- Configure as a spectrum analyzer, built-in power meter, tracking generator, and more.
- Order software pre-installed or upgrade an existing instrument.

- Record signals in the field and evaluate them later using 89600 VSA.
- Demodulate and perform comprehensive vector signal analysis to optimize your deployment.
- Decode and verify MAC, RLC and RRC-layer messages across multiple radio frames.
- Analyze and troubleshoot signals in cellular, wireless-connectivity, aerospace, defense, and general-purpose applications.
