Rohde & Schwarz NPA101 Power Meter, DC to 100kHz
Rohde & Schwarz NPA101 is a compact power meter for AC/DC load and standby current characterization.
Included accessories:
1 x Set of power cables
1 x Quick start guide
Key features:
- Power measurement range: 50 µW to 12 kW
- Analog bandwidth: DC to 100 kHz
- Sampling rate: 500 ksample/s
- 16 bit resolution for current and voltage
- Basic accuracy: 0.05%

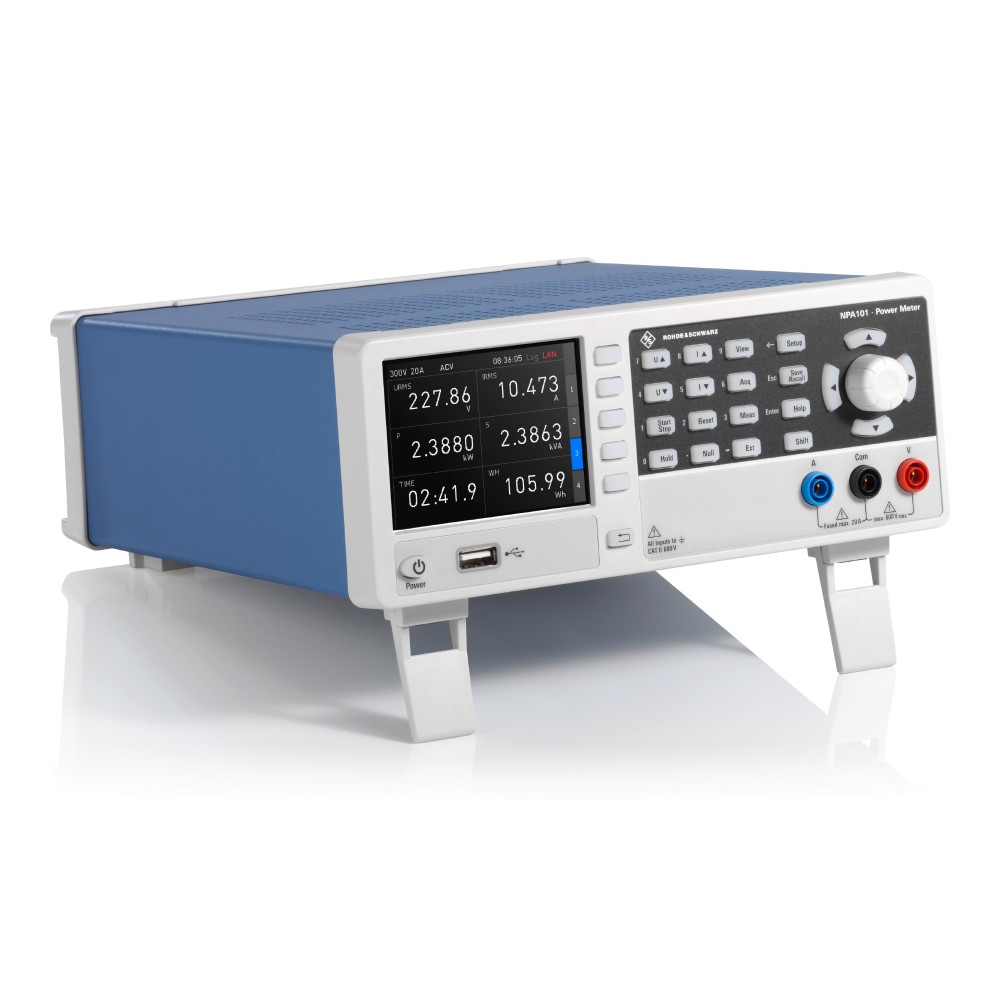

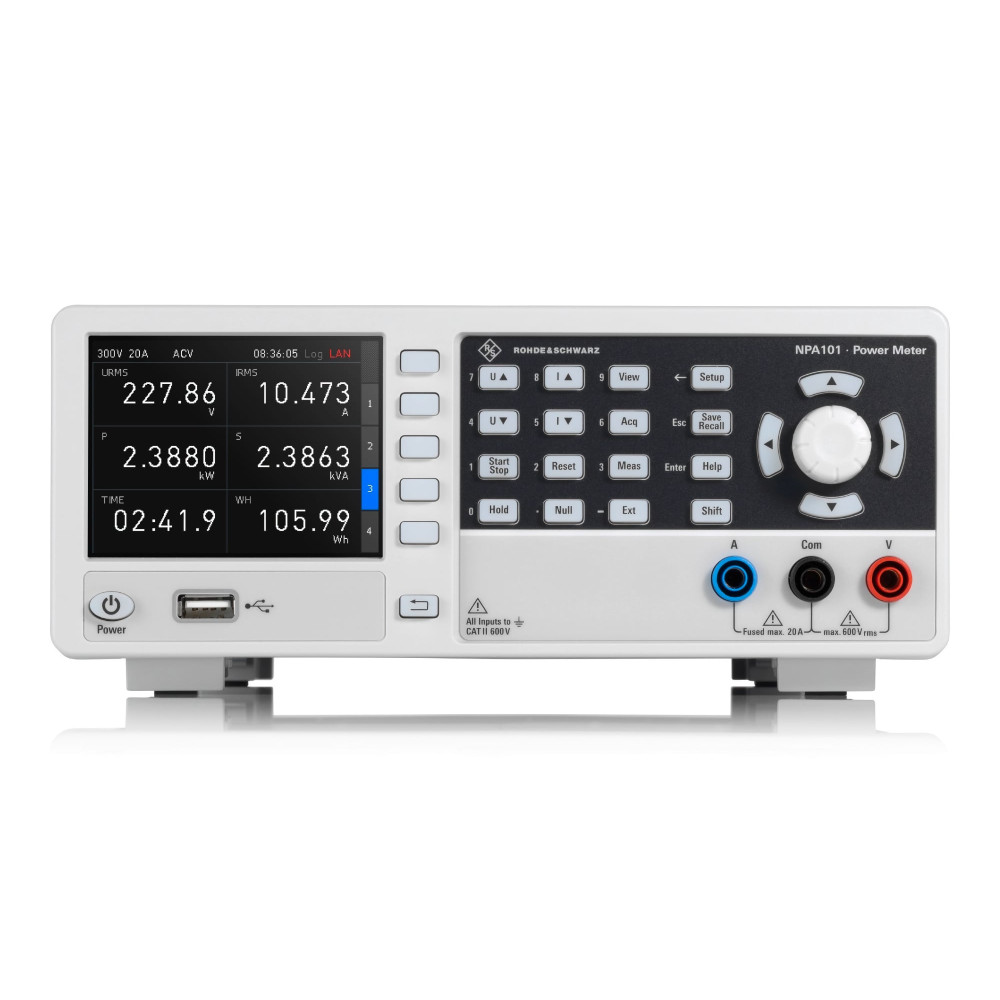

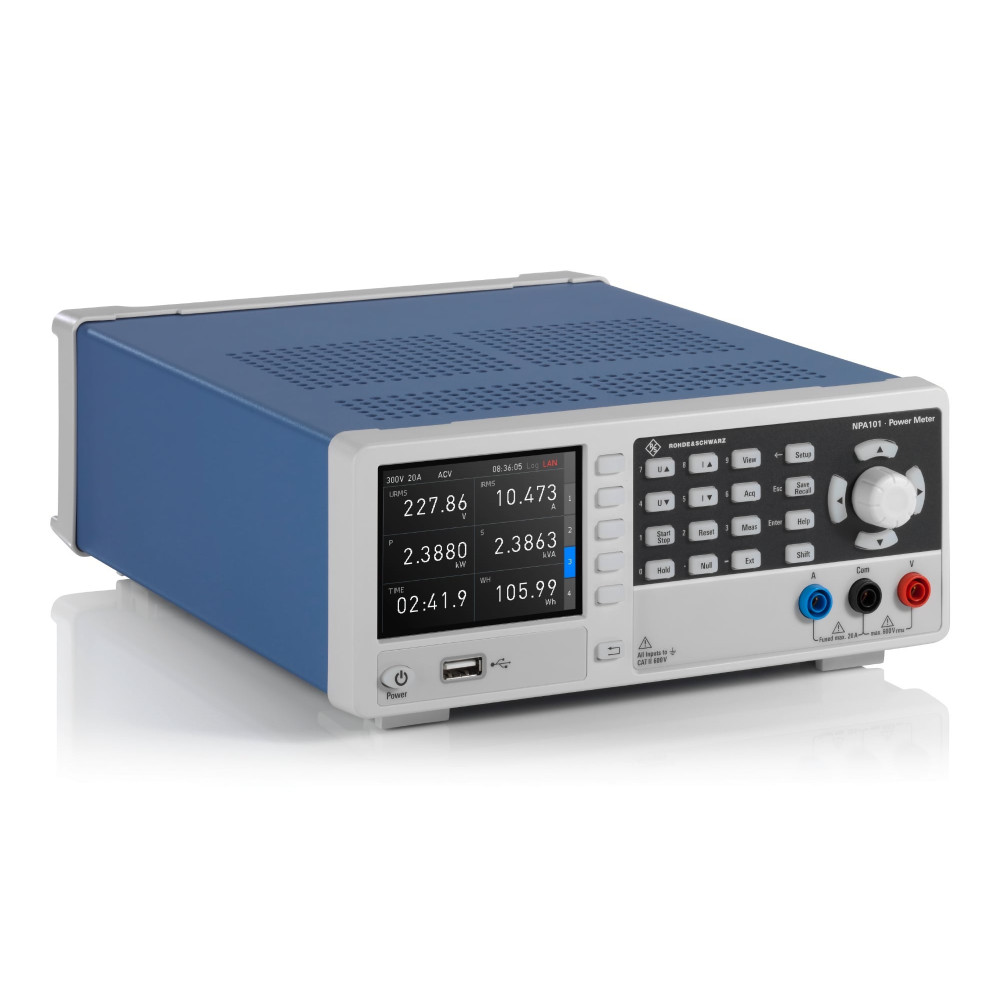

Rohde & Schwarz NPA101 comes with a brilliant QVGA color display (320 x 240 pixel) that can simultaneously display up to 10 user‑configurable measurement results with a refresh rate of 10 measurements per second.
The instrument has a basic accuracy of 0.05%. Signals are acquired from DC to 100 kHz with a sampling rate of 500 ksample/s. Current and voltage are displayed with 16 bit resolution.
Rohde & Schwarz NPA101 logging function lets users store measured data with a timestamp in .CSV format for a nearly unlimited period of time. Screen content can be saved to a USB flash drive at the push of a button.
| Function | Description | NPA101 | NPA501 | NPA701 |
| P | Active power (W) | ✓ | ✓ | ✓ |
| S | Apparent power (VA) | ✓ | ✓ | ✓ |
| Q | Reactive power (VAR) | ✓ | ✓ | ✓ |
| PF | Lambda power factor (λ) | ✓ | ✓ | ✓ |
| PHI | Phase shift (φ) | ✓ | ✓ | ✓ |
| FU | Voltage frequency value (Hz) | ✓ | ✓ | ✓ |
| FI | Current frequency value (Hz) | ✓ | ✓ | ✓ |
| FPLL | Acquisition frequency (Hz) | ✓ | ✓ | ✓ |
| URMS | RMS voltage (U RMS) | ✓ | ✓ | ✓ |
| UAVG | Average voltage (U AVG) | ✓ | ✓ | ✓ |
| IRMS | RMS current (I RMS) | ✓ | ✓ | ✓ |
| IAVG | Average current (I AVG) | ✓ | ✓ | ✓ |
| UTHD | Total harmonic distortion U | ✓ | ✓ | ✓ |
| ITHD | Total harmonic distortion I | ✓ | ✓ | ✓ |
| WHM, WHP, WH, AHM, AHP, AH | Energy counter (integrator values) | ✓ | ✓ | ✓ |
| Logging | Measured value logging (CSV) | ✓ | ✓ | ✓ |
| UPPeak | Maximum voltage (U PEAK) | - | ✓ | ✓ |
| UMPeak | Minimum voltage (U PEAK) | - | ✓ | ✓ |
| IPPeak | Maximum current (I PEAK) | - | ✓ | ✓ |
| IMPeak | Minimum current (I PEAK) | - | ✓ | ✓ |
| PPPeak | Maximum power (P PEAK) | - | ✓ | ✓ |
| PMPeak | Minimum power (P PEAK) | - | ✓ | ✓ |
| Harmonics | Bargraph of up to 50 harmonics | - | ✓ | ✓ |
| Waveform | Waveform display (displays one period of voltage, current or power) |
- | ✓ | ✓ |
| Trend chart | Current and voltage displayed as a waveform | - | ✓ | ✓ |
| Inrush | Triggered display of waveform (single shot) | - | ✓ | ✓ |
| Limit / PASS/FAIL | Limit display | - | ✓ | ✓ |
| Sensor input | Input for current probe/external shunt | - | ✓ | ✓ |
| DIN/AIN | Digital/analog inputs and outputs (BNC) | - | ✓ | ✓ |
| IEC 62301 | Standby standard | - | - | ✓ |
| EN 50564 | Extended standby | - | - | ✓ |
| EN 61000‑3‑2 | Harmonic current for EMC, CE approval | - | - | ✓ |
