GW Instek GPM-8330-60 Digital Power Meterwith RS-232C, USB and LAN

Haga clic en la imagen para la galería

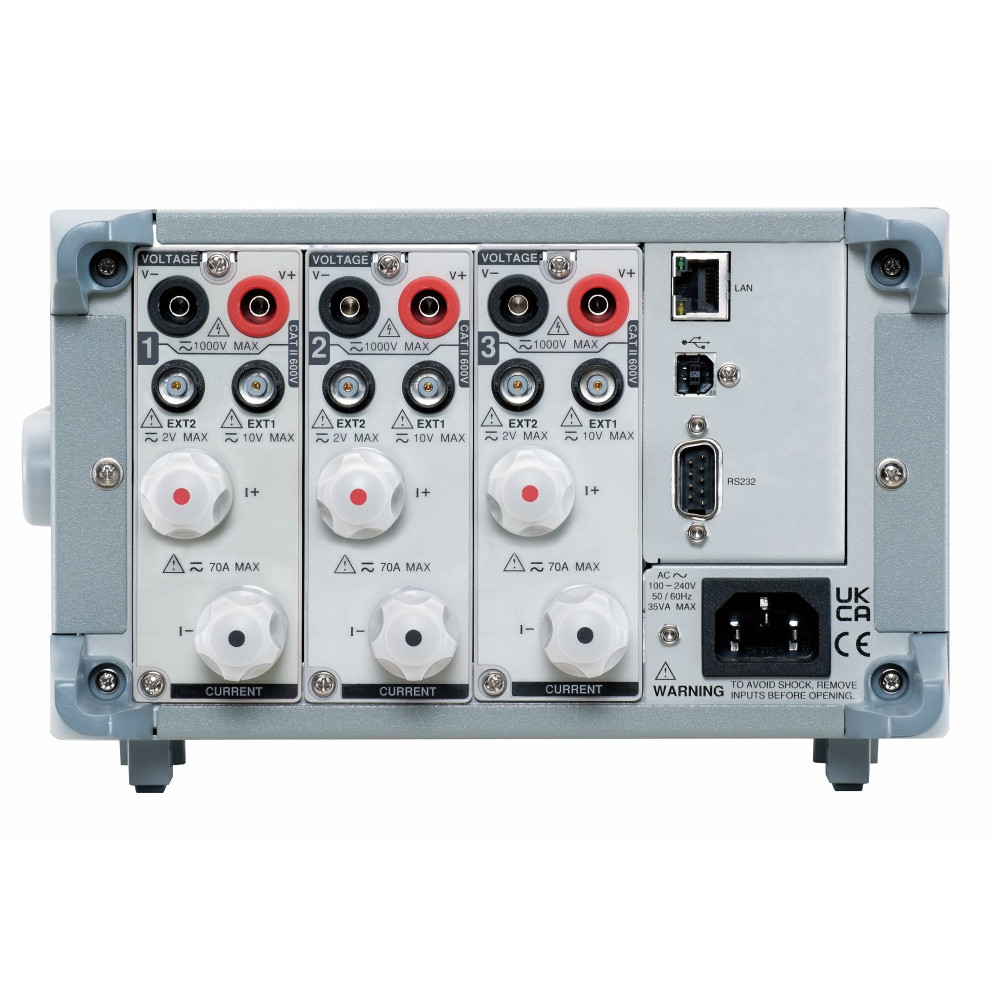

GW Instek GPM-8330-60 is a digital power meter with RS-232C, USB device & host and LAN interfaces.

Series features:

5" TFT LCD display
Voltage and current test frequency bandwidth: DC, 0.1Hz~ 100kHz
Waveform display: V (voltage), I (current), P (power)
Distorted wave current and voltage measurement: full range for CF=3 and half range for CF=6 (or 6A)
Maximum direct input current: up to 60A
Harmonic measurement according to IEC 61000-4-7 (50/60Hz)
Wiring selection button (1P3W,3P3W,3P4W,3V3A)
Harmonic measurement and analysis up to 50 orders
Auto-range function for integration mode
Screen capture via USB Host
External current sensor input (EXT1/EXT2)
Standard interfaces: RS-232C, USB device/host and LAN
Optional interfaces: GPM-DA12 GPIB + Digital I/O (factory installed only)

Standard accessories:

1 Safety instructions and power cord
3 Test leads GTL-209
3 Test leads GTL-212A
1 CD (including complete user manual and USB drivers)
1 Terminal cover GPM-002

Specification	GPM-8320	GPM-8320-60	GPM-8330	GPM-8330-60	GPM-8320+GPIB-DA12	GPM-8320-60+GPIB-DA12	GPM-8330+GPIB-DA12	GPM-8330-60+GPIB-DA12
Channels	2	2	3	3	2	2	3	3
Max Voltage	1000V
Max Direct Current	5A	60A	5A	60A	5A	60A	5A	60A
Current Range (CF=3)	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A
Accuracy	±(0.1% reading + 0.05% range)
Sample Rate	300 kHz
Display	5" TFT LCD (800×480)
Wiring Configurations	1P3W, 3P3W, 3P4W, 3V3A
Harmonic Analysis	Up to 50 orders (IEC 61000-4-7)
Standard Interfaces	RS-232C, USB device/host, LAN				RS-232C, USB device/host, LAN, (GPIB + Digital I/O)
DA12 Digital I/O	No				Yes (12 D/A outputs)
Remote Control	Start/Stop integration				Start/Stop + 12 analog outputs
