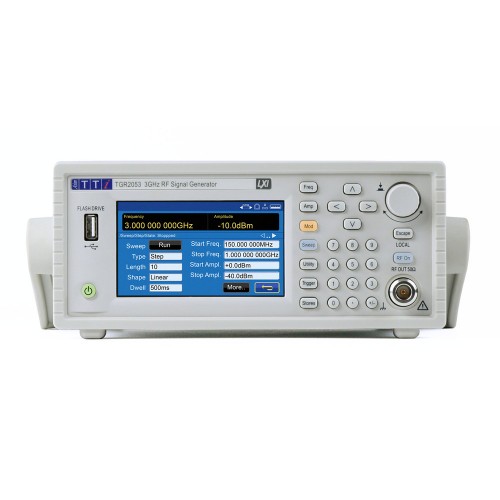

Aim-TTi TGR2053-U01 RF Signal Generator 3GHz with U01 option
Aim-TTi TGR2053-U01 RF Signal Generator 3GHz with U01 option
150kHz to 3GHz (TGR2053) and 150kHz to 1.5GHz (TGR2051) frequency range
Frequency setting resolution of 10Hz at up to 3GHz (TGR2053) or 1.5GHz (TGR2051)
Amplitude range of -127dBm to +13dBm
0.1dBm amplitude setting resolution.
Amplitude can be set in dBm, dBμV or in linear Volts.
High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
1ppm frequency accuracy, <1ppm drift in first year
5ms sweep settling time
User selectable low spur mode setting
Internal or external analogue modulations (AM, FM, PM)
Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK with U01 option
Modulation Synchronisation
Internal DDS baseband generator provided as logic LF output
Modulation waveform output on the rear panel
Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern
Fast amplitude and/or frequency sweeps with comprehensive triggering
Simple operation with the colour touch screen
Compatible with previous Aim-TTi RF generators
Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible
The TGR2051 and TGR2053 are the next generation of RF signal generators from Aim-TTi, offering both exceptional performance and new improved functionality with touch screen operation.
The high performance RF generators provide high frequency accuracy and stability, large signal amplitude range, low phase noise and flexible analog and digital* modulation capabilities making it ideal for development, test and service work.
Advanced remote control accommodates sophisticated new automated systems and compatibility with Aim-TTI's previous RF instruments enables incorporation into existing systems.
With a small footprint and lightweight design and the best price point / performance ratio in its class, the TGR2050 series maintains Aim-TTi’s reputation for high quality, reliable, great value products.
*Digital modulation available with option TGR-U01
